MultiZero® Pallets

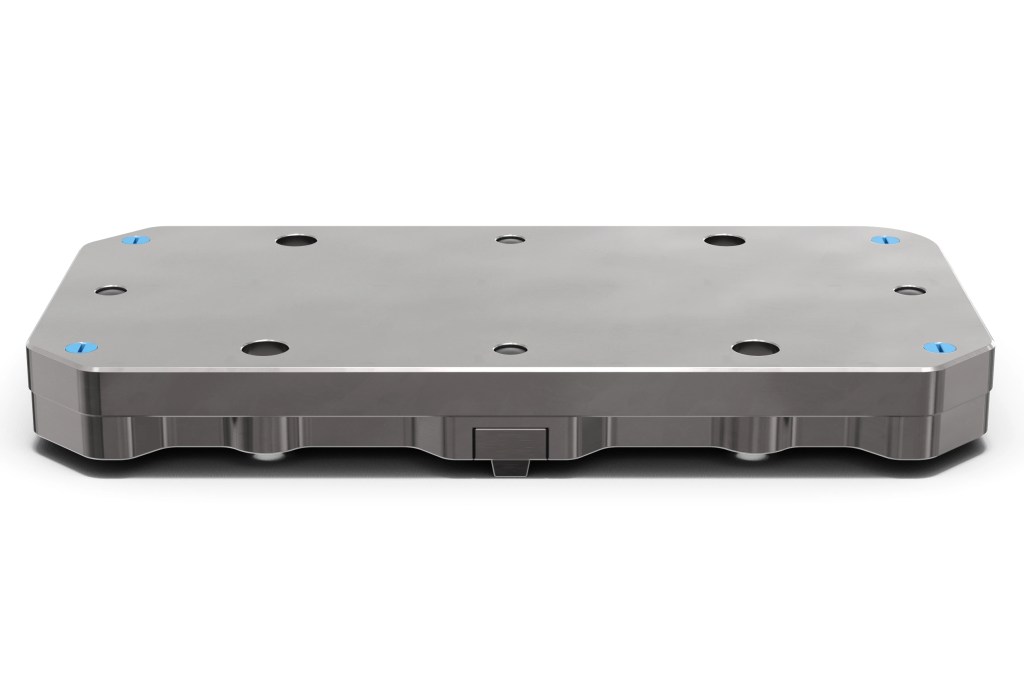

MultiZero® Blank Pallet
Fast. Accurate. Reliable.
- Delivered with blank top surface, or produced according to customer request
- Centering slots from the underside at each clamping bolt, used for lifting the pallet
- Pallet can be lifted by supports centered through slots from the underside at each clamping bolt
- Used for specific uses:
- Clamping of special vises and clamping fictures
- Clamping of customer specific workpieces – pallets can be designed and produced according to customers project requirements
- Possibility of installing specific zero point pneumatic modules
Types per dimensions
AxB dimensions
AxA dimensions
100x350 mm
| Product no. | Dimensions (mm) | Centering | Thread holes M12 | Clamping bolts | Weight (kg) |
|---|---|---|---|---|---|
|
1B2-1061-0 |
199.5 x 599.5 x 40 (48) |
3x |
109x |
4x |
29.7 kg |
150x320 mm
150x400 mm
200x400 mm
200x500 mm
200x600 mm
250x500 mm
300x630 mm
300x800 mm
400x500 mm
500x600 mm
600x800 mm
150x150 mm
200x200 mm
240x240 mm
315x315 mm
400x400 mm
500x500 mm
630x630 mm
