MultiZero® Pallets

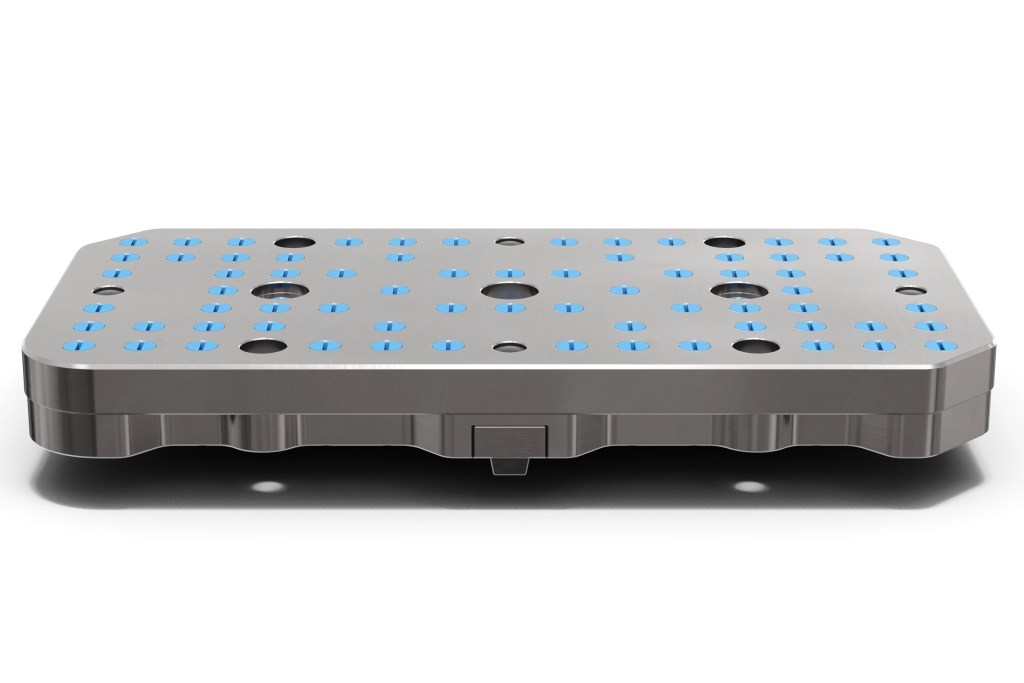

MultiZero® Clamp Pallet
Fast. Accurate. Reliable.
- Used for clamping various fixtures or workpieces and vises directly
- M12 thread holes in array of 25×25 mm
- Holes for M10 bolts made from the underside, at every M12 Thread hole
- Precisely machined holes D25,00 H7 for centering vises and fixtures, on the top of pallet
- Pallet can be lifted by supports centered through slots from the underside at each clamping bolt
- Limitless options and flexibility in clamping
Types per dimensions
AxB
AxA
100x350 mm
| Product no. | Dimensions (mm) | Centering | Thread holes M12 | Clamping bolts | Weight (kg) |
|---|---|---|---|---|---|
|
1B2-1011-0 |
99.5 x 349.5 x 40 (48) |
- |
29x |
2x/4x |
8.2 kg |
150x320 mm
150x400 mm
200x400 mm
200x500 mm
200x600 mm
250x500 mm
300x630 mm
300x800 mm
400x500 mm
500x600 mm
600x800 mm
150x150 mm
200x200 mm
240x240 mm
315x315 mm
400x400 mm
500x500 mm
630x630 mm
