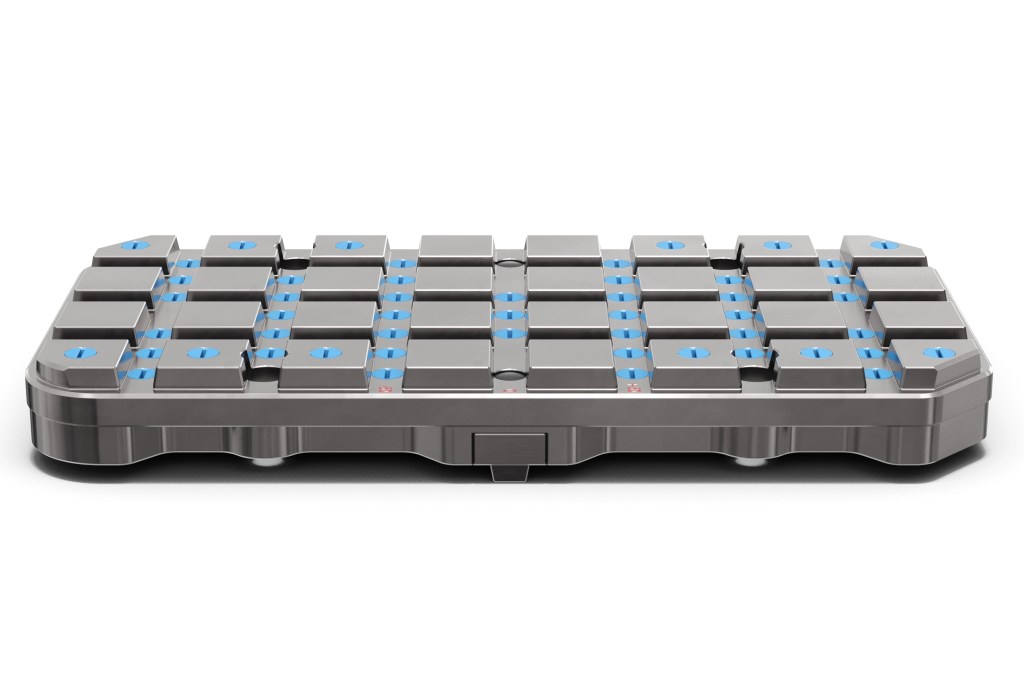

MultiZero Pallet
The MultiZero Pallet is a clamping pallet designed to replicate the surface of the MultiZero Base Plate, offering identical flexibility in workholding. Using the MultiZero Pallet System offers several advantages by enabling clamping of the workpiece outside the machine:
Increased Machine Productivity: By clamping the workpiece on the pallet outside the machine while another workpiece is being machined, you can quickly exchange the two. This significantly reduces idle time, maximizing machine running time and boosting overall productivity.
Seamless Transfer Between Operations: Workpieces clamped on the MultiZero Pallet can be easily transferred to other machining processes, such as Sink EDM, Wire EDM, measuring machines, or additional milling machines, without losing their precise zero-point alignment. The system ensures a repeatability accuracy of 5 μm, maintaining consistent positioning across different operations.
Flexibility and Process Interruption: The machining process can be temporarily interrupted to remove the workpiece on the pallet. When returned, the workpiece can be reclamped in the exact same zero-point position, ensuring uninterrupted precision and continuity.
This system enhances workflow efficiency and precision, making it ideal for environments that demand high accuracy and reduced downtime.
MultiZero Pallet AxB
The MultiZero Pallet, enables clamping outside of the machine, seamless transfers between operations, and precise zero-point repeatability of 5μm.
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 100×350 |
1B2-1010-0 |
349.5 mm |
99.5 mm |
40.0 mm |
7x |
16x |
7.8 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 150×320 |
1B2-1020-0 |
319.5 mm |
149.5 mm |
40.0 mm |
15x |
33x |
11.2 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 150×400 |
1B2-1030-0 |
399.5 mm |
149.5 mm |
40.0 mm |
21x |
50x |
13.7 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 200×400 |
1B2-1040-0 |
399.5 mm |
199.5 mm |
40.0 mm |
21x |
61x |
18.4 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 200×500 |
1B2-1050-0 |
499.5 mm |
199.5 mm |
40.0 mm |
27x |
87x |
23.1 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 200×600 |
1B2-1060-0 |
599.5 mm |
199.5 mm |
40.0 mm |
33x |
101x |
27.6 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 250×500 |
1B2-1070-0 |
499.5 mm |
249.5 mm |
40.0 mm |
41x |
115x |
28.4 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 300×630 |
1B2-1080-0 |
629.5 mm |
299.5 mm |
40.0 mm |
51x |
174x |
43.1 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 300×800 |
1B2-1090-0 |
799.5 mm |
299.5 mm |
40.0 mm |
75x |
233x |
56.5 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 400×500 |
1B2-1180-0 |
499.5 mm |
399.5 mm |
40.0 mm |
59x |
195x |
46.0 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 500×600 |
1B2-1190-0 |
599.5 mm |
499.5 mm |
40.0 mm |
95x |
305x |
69.8 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 600×800 |
1B2-1200-0 |
799.5 mm |
599.5 mm |
40.0 mm |
161x |
504x |
112.0 kg |
MultiZero Pallet AxA
The MultiZero Pallet, enables clamping outside of the machine, seamless transfers between operations, and precise zero-point repeatability of 5μm.
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 150×150 |
1B2-1100-0 |
149.5 mm |
149.5 mm |
40.0 mm |
9x |
12x |
5.2 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 200×200 |
1B2-1110-0 |
199.5 mm |
199.5 mm |
40.0 mm |
9x |
24x |
9.4 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 240×240 |
1B2-1120-0 |
239.5 mm |
239.5 mm |
40.0 mm |
21x |
53x |
13.4 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 300×300 |
1B2-1130-0 |
299.5 mm |
299.5 mm |
40.0 mm |
25x |
77x |
23.0 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 400×400 |
1B2-1140-0 |
399.5 mm |
399.5 mm |
40.0 mm |
45x |
150x |
36.6 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 500×500 |
1B2-1150-0 |
499.5 mm |
499.5 mm |
40.0 mm |
77x |
249x |
57.9 kg |
| Product | Product no. | Length (l) | Width (w) | Height (h) | Zero points | Thread holes M12 | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
MultiZero Pallet 630×630 |
1B2-1160-0 |
629.5 mm |
629.5 mm |
40.0 mm |
117x |
375x |
91.2 kg |
