MultiZero Clamps
MultiZero Clamps come in various shapes, dimensions, and functions, designed to securely hold challenging workpieces on the MultiZero Clamping System. They can be easily combined with other MultiZero workholding elements for support of the workpiece, such as MultiZero Supports, Holders, and Stopper Rails, to provide comprehensive and stable clamping solutions for a wide range of workpieces.

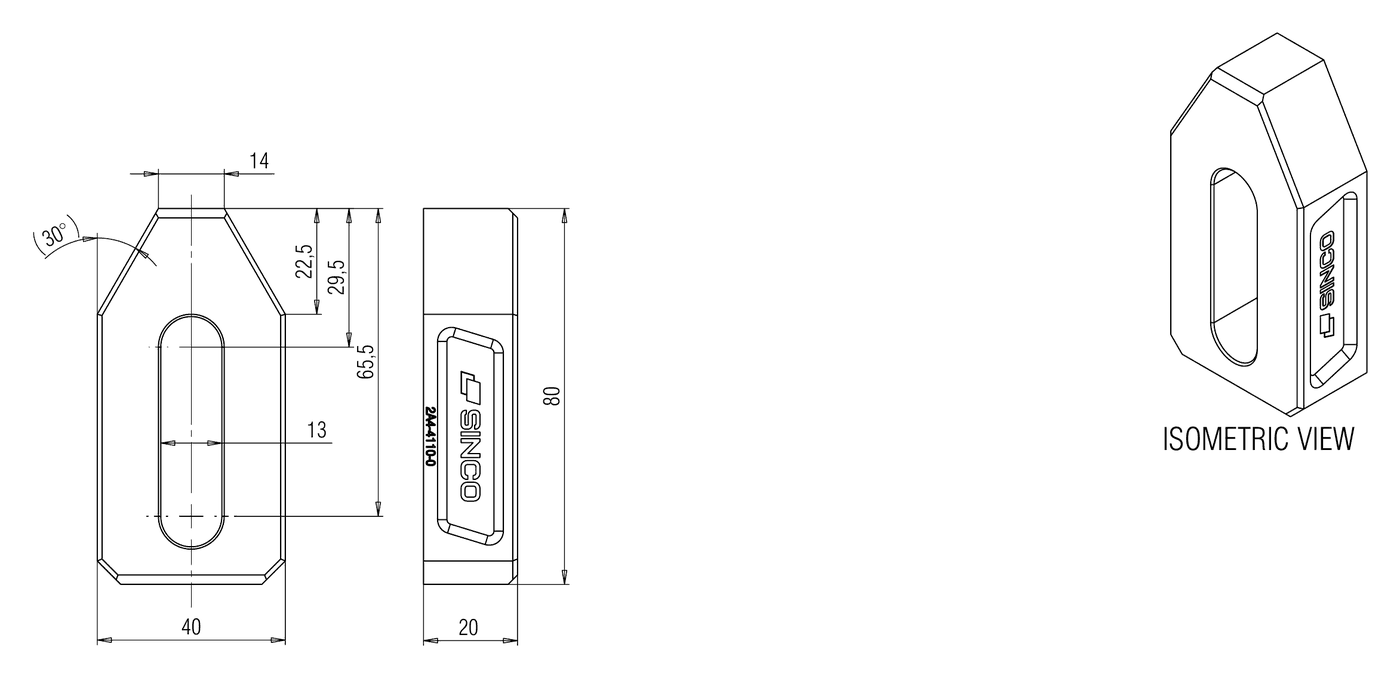

MultiZero Clamp Type 1
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4110-0 |
14 mm |
36 mm |
0.34 kg |

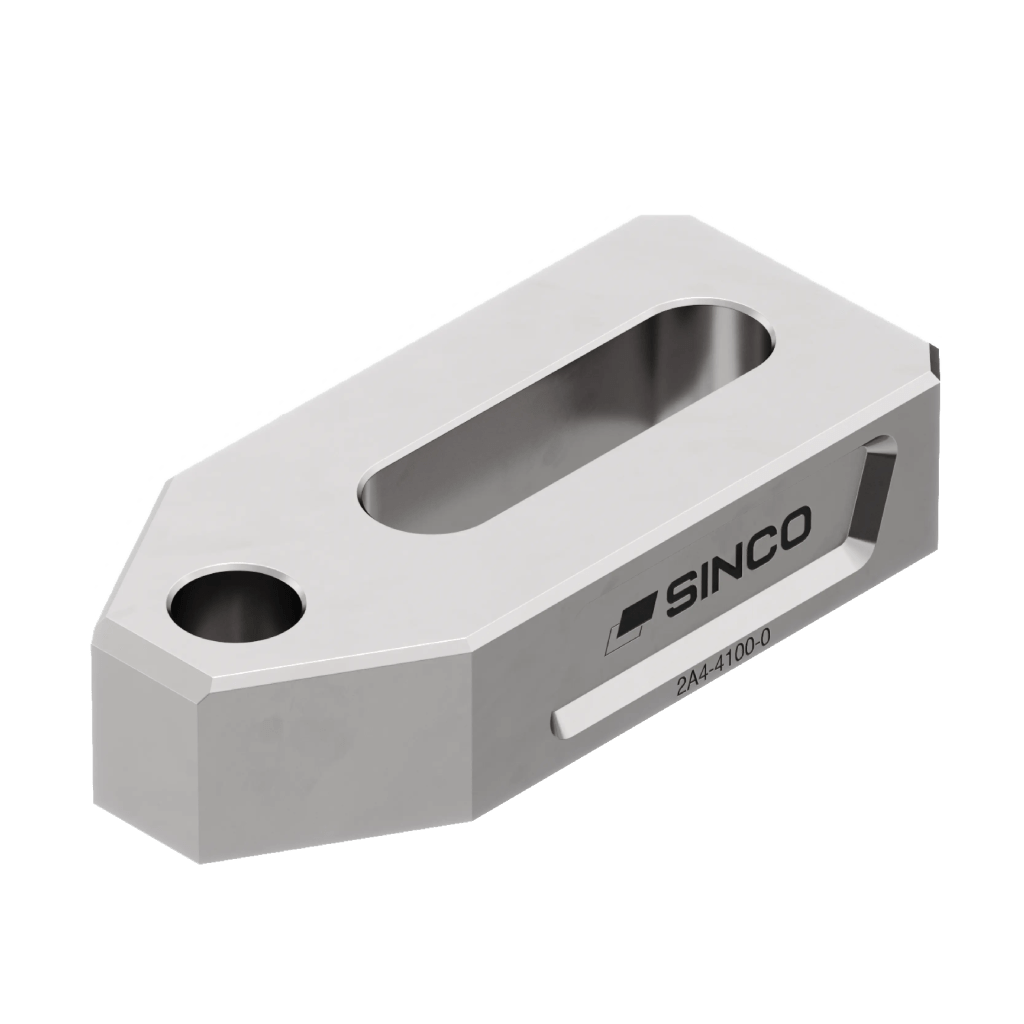

MultiZero Clamp Type 2
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4100-0 |
14 mm |
36 mm |
0.38 kg |

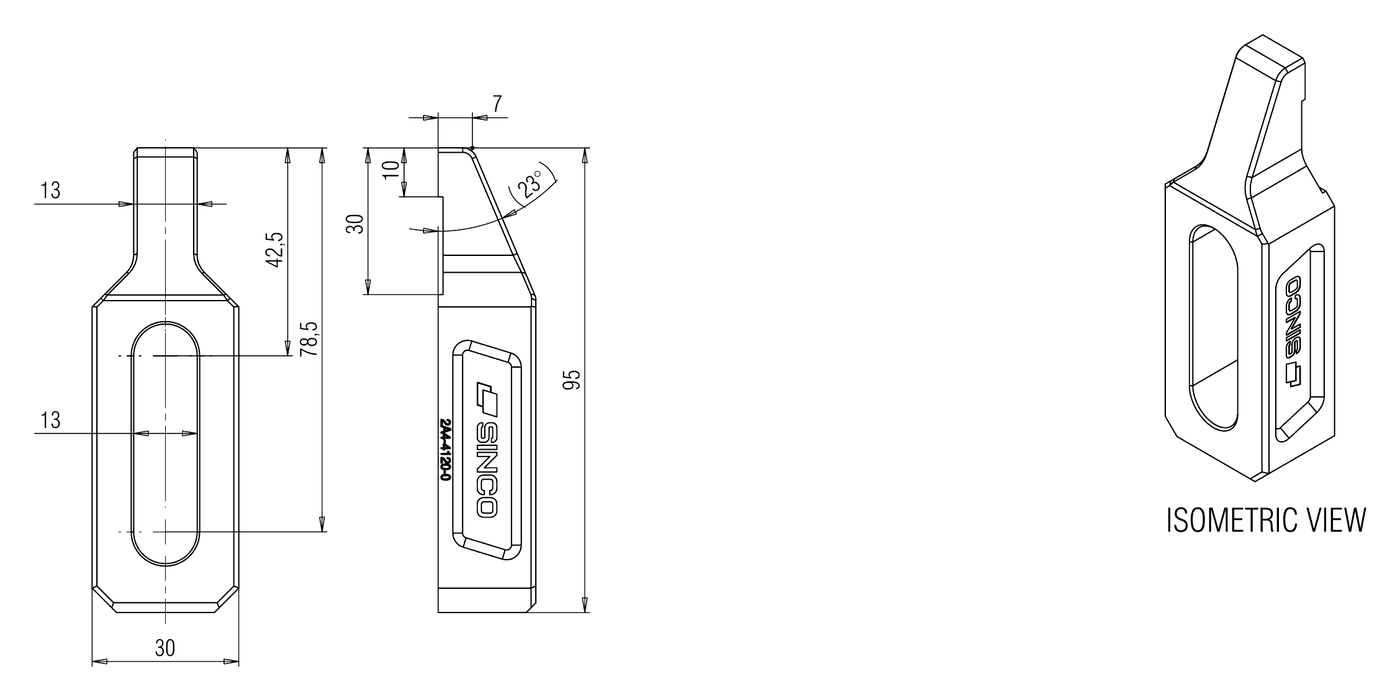

MultiZero Clamp Type 3
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4120-0 |
13 mm |
36 mm |
0.23 kg |
MultiZero Clamp Type 4
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4130-0 |
20 mm |
36 mm |
0.56 kg |

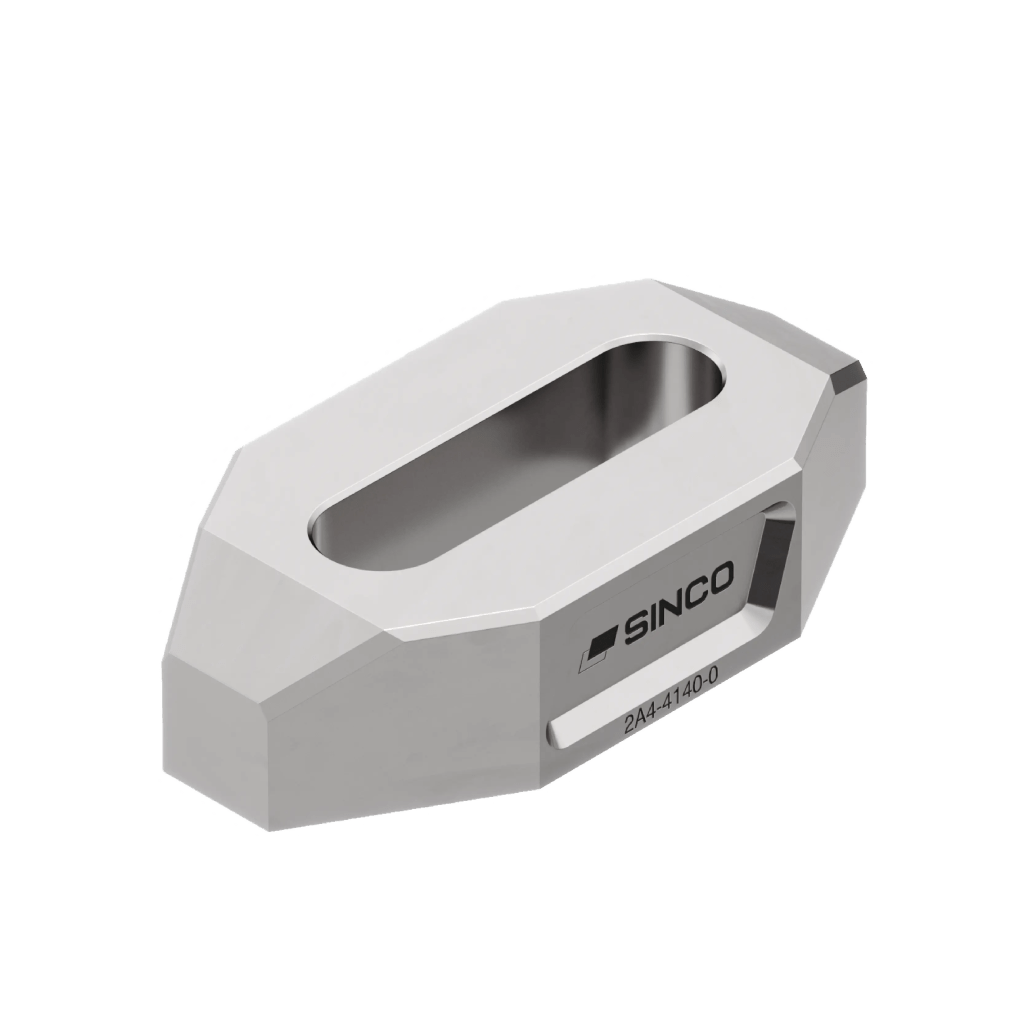

MultiZero Clamp Type 5
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4140-0 |
14 mm |
36 mm |
0.29 kg |

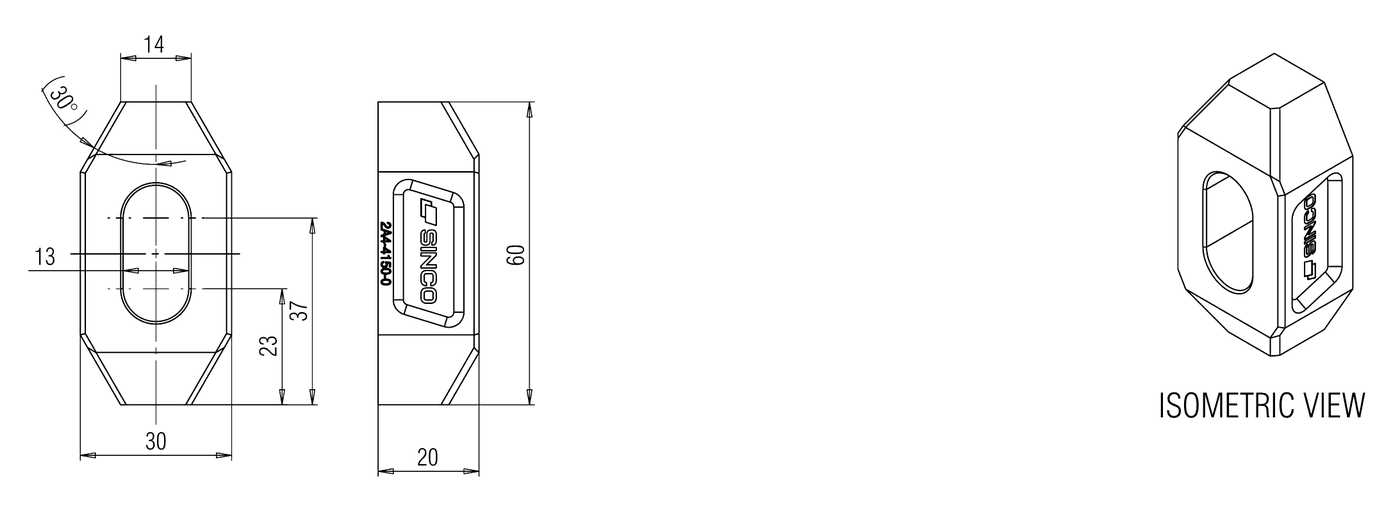

MultiZero Clamp Type 6
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4150-0 |
14 mm |
14 mm |
0.18 kg |

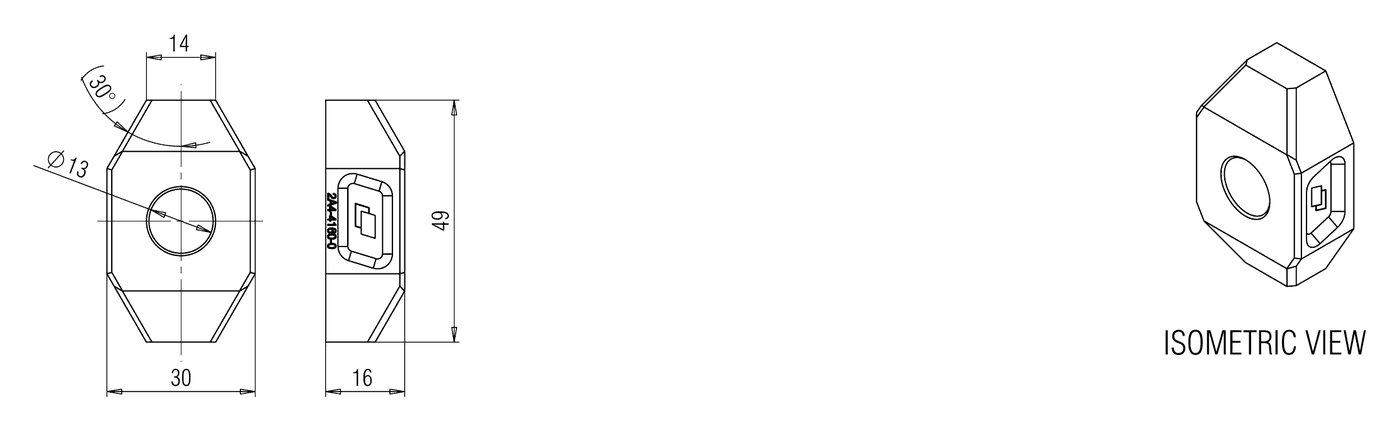

MultiZero Clamp Type 7
MultiZero Clamps are presented in many shapes, dimmensions and functions to clamp challenging to hold parts.
| Product no. | Clamping width at the clamp tip (mm) | Bolt hole opening center to center (mm) | Weight (kg) |
|---|---|---|---|
|
2A4-4160-0 |
14 mm |
Ø13 |
0.13 kg |
