MultiZero Double Stopper

The MultiZero Double Stopper is a fixed element for the MultiZero Modular Vise line, providing a stable point for the workpieces to be clamped against from both sides of the element. With addition of the MultiZero Double Stoppers, multiple workpiece can be clamped on the base plate, either with MultiZero Single or Double Wedge Vises. MultiZero Double Stopper adjusts in 50mm increments over the whole base plate, similar to the MultiZero Rail, for flexible and precise clamping setups. Clamping jaws on MultiZero Double Stopper can be changed and replaces in the same way as on the other MultiZero Modular Vise workholding elements.

MultiZero Double Stopper

The MultiZero Double Stopper provides a stable point for workpieces to be clamped against from the both sided of the element.

Product Product no. Jaw height (h) Stopper height (h) Length (l) Width (w) Weight (kg)

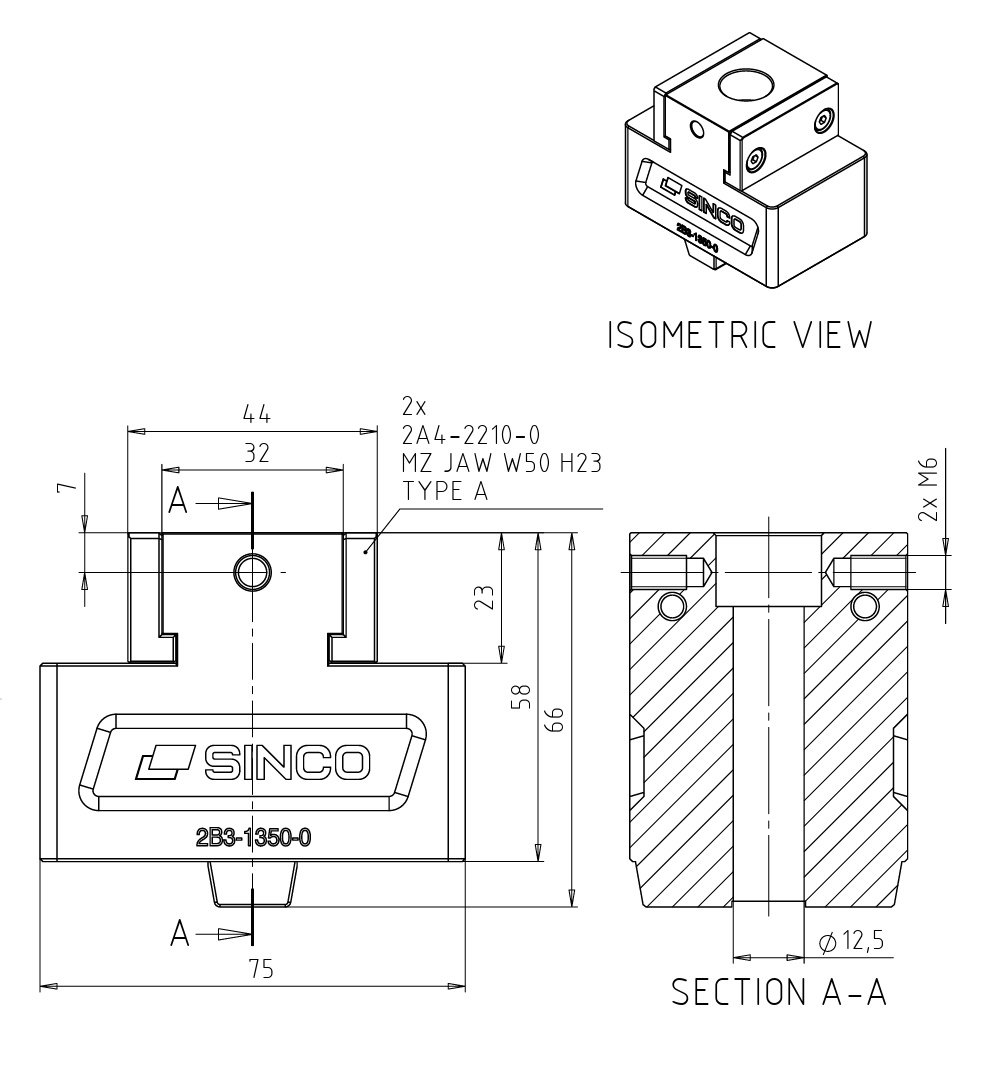

MultiZero Double Stopper W50 H23
2B3-1350-0
23.0 mm
58.0 mm
75.0 mm
50.0 mm
1.30 kg
Product Product no. Jaw height (h) Stopper height (h) Length (l) Width (w) Weight (kg)

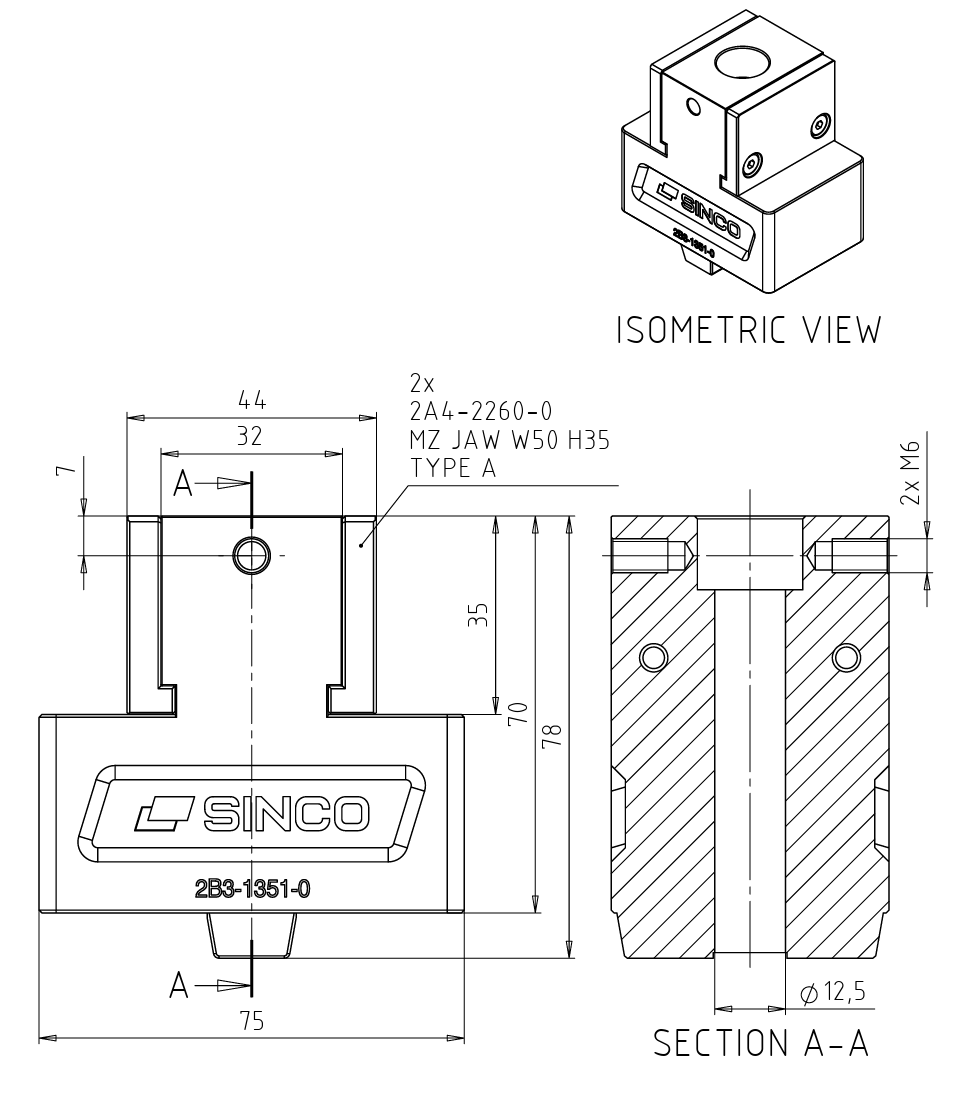

MultiZero Double Stopper W50 H35
2B3-1351-0
35.0 mm
70.0 mm
75.0 mm
50.0 mm
1.49 kg
