MultiZero Holders

MultiZero Holders are rectangular clamping elements designed to support the workpiece from the all four (4) sides of the element, either as a stopper for workpiece centering or a support to reduce vibrations during machining. Available in various shapes and support heights, these holders can be quickly and easily positioned and moved across the base plate using the conical slots of the MultiZero Clamping System. Their versatility makes them ideal for supporting a wide range of workpiece sizes and shapes, enhancing stability and machining precision.

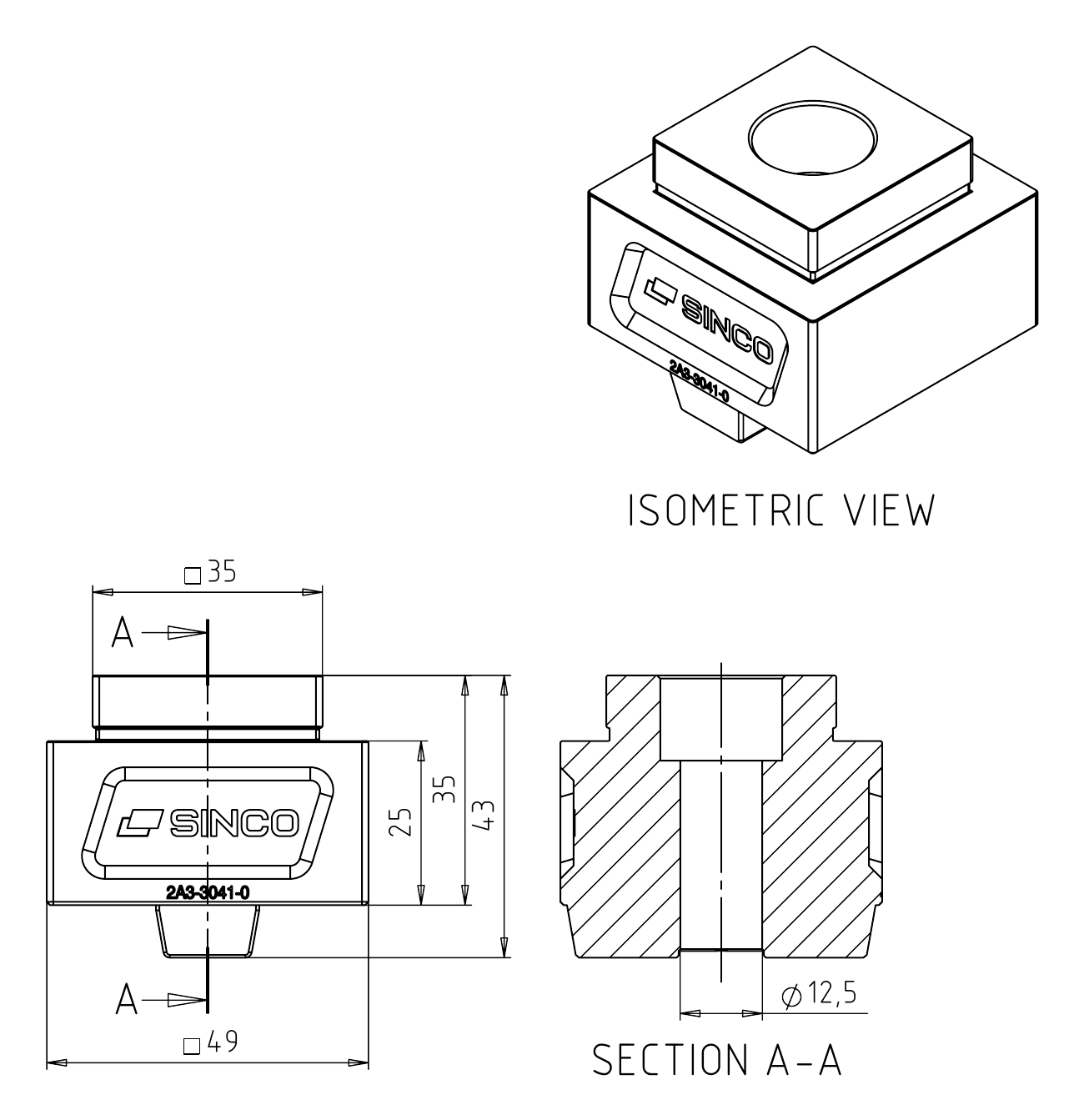

MultiZero Holder W50 H35

MultiZero Holders provide workpiece centering and vibration support from all four (4) sides of the holder element.

Product no. Lower support height (h) Upper support height (h) Weight (kg)
2A3-3041-0
25.0 mm
35.0 mm
0.54 kg

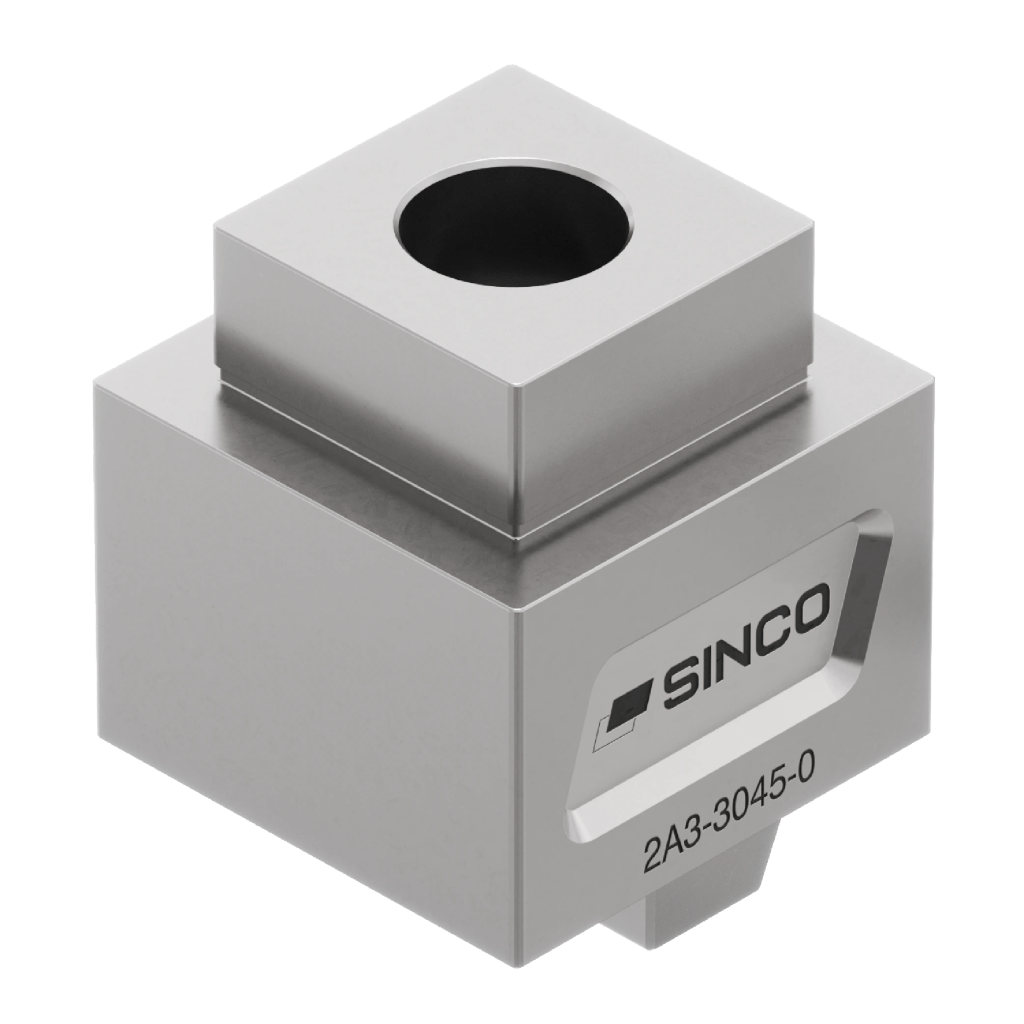

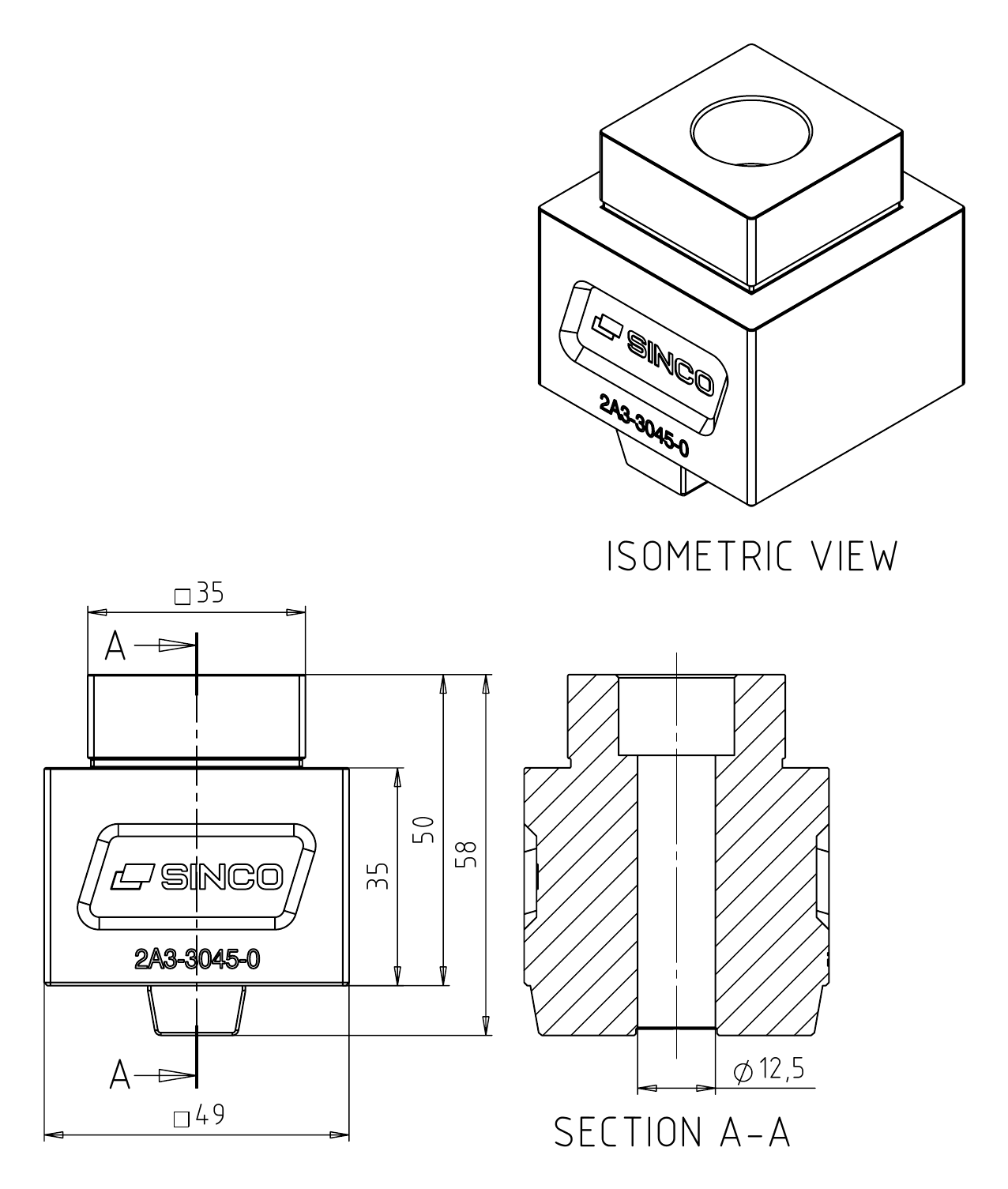

MultiZero Holder W50 H50

MultiZero Holders provide workpiece centering and vibration support from all four (4) sides of the holder element.

Product no. Lower support height (h) Upper support height (h) Weight (kg)
2A3-3045-0
35.0 mm
50.0 mm
0.75 kg
