MultiZero Rail
The MultiZero Rail is a key component of the MultiZero Modular Vises system, designed for use exclusively with the MultiZero Single Vise Wedge and Double Vise Wedge. Available in various lengths, the rail is mounted onto the surface of the MultiZero Base Plate using a conical pin that precisely fits into matching conical slots of the MultiZero Base Plate. Once positioned, the Single or Double Vise Wedge is added on top, creating a modular vise system that can be moved in 50mm increments across the base plate. This flexible setup allows for adaptable clamping solutions for workpieces of varying sizes and shapes.
MultiZero Rail
MultiZero Rail is a key part of the MultiZero Modular Vises system, compatible with the MultiZero Single and Double Vise Wedges.
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

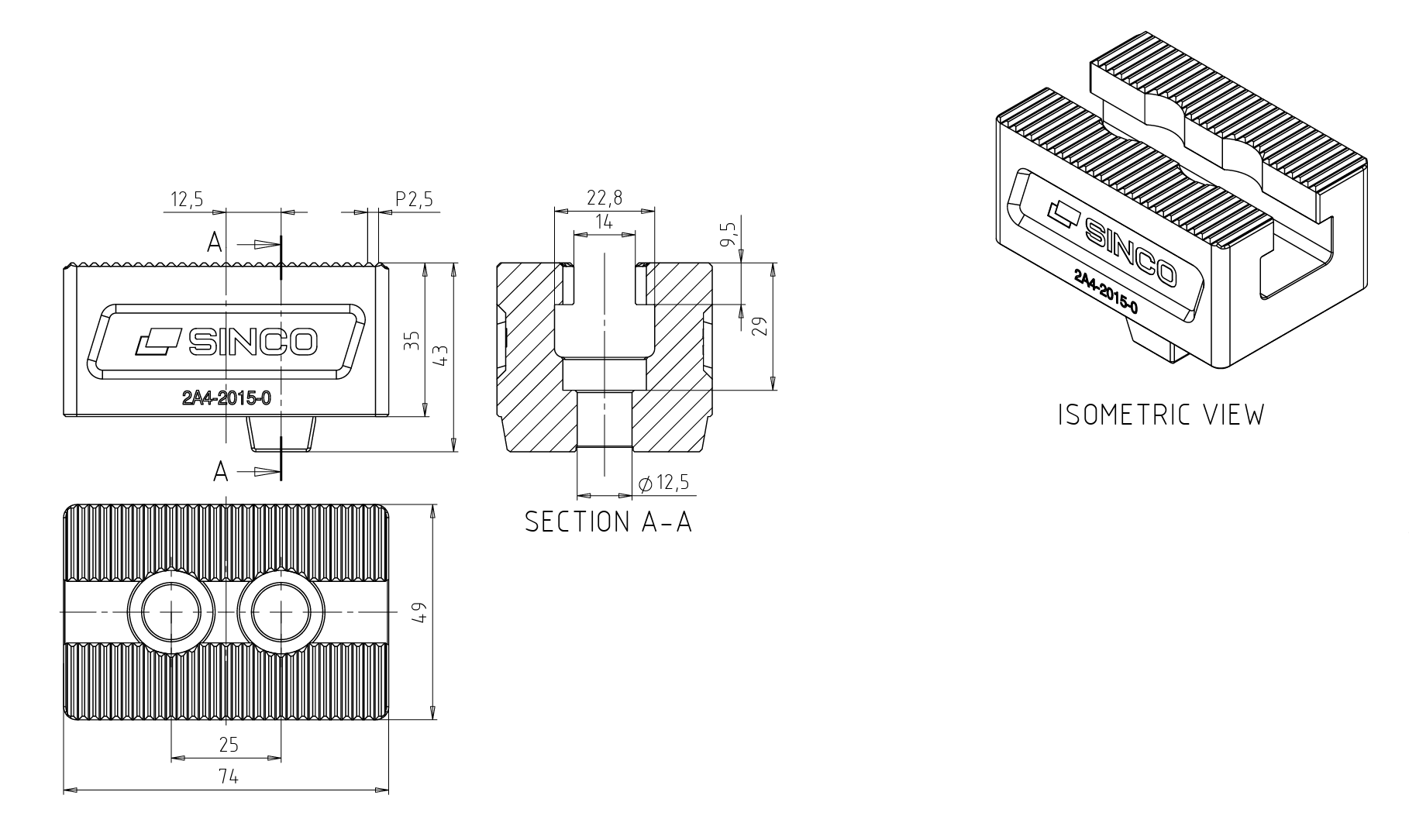

MultiZero Rail W50 L75E (E-centric) |
2A4-2015-0 |
35.0 mm |
75.0 mm |
50.0 mm |
0.72 kg |
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

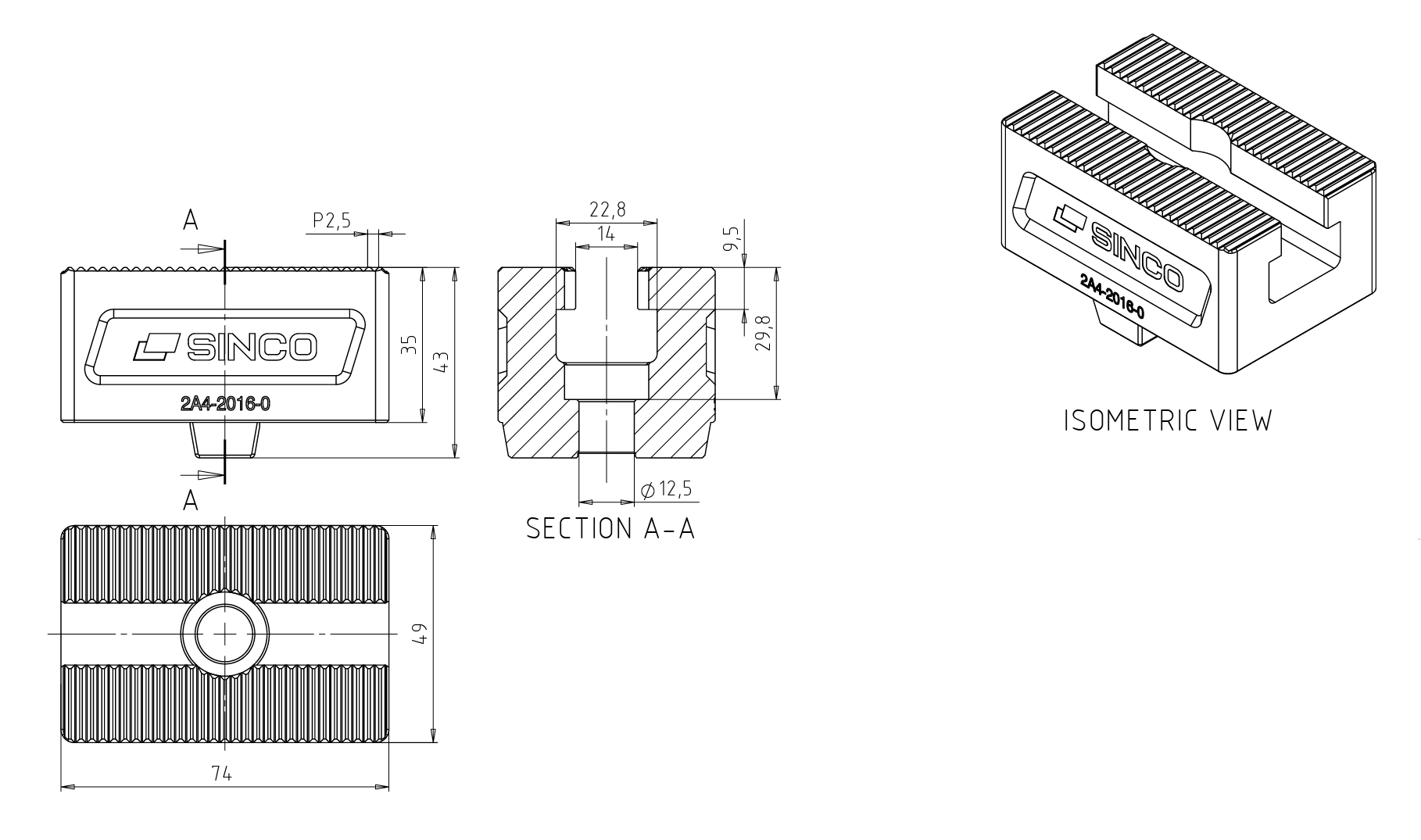

MultiZero Rail W50 L75C (Centric) |
2A4-2016-0 |
35.0 mm |
75.0 mm |
50.0 mm |
0.72 kg |
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

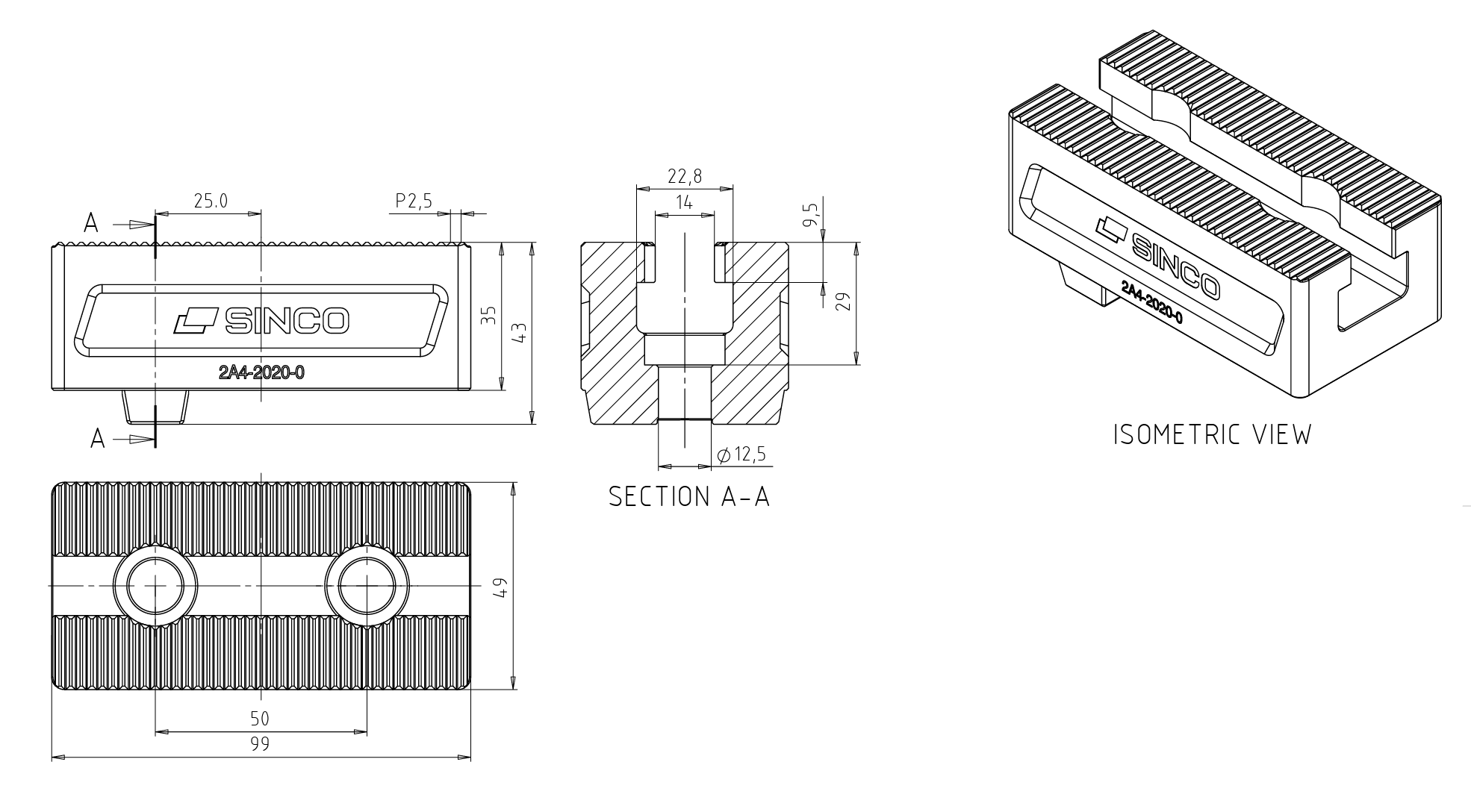

MultiZero Rail W50 L100E (E-centric) |
2A4-2020-0 |
35.0 mm |
100.0 mm |
50.0 mm |
0.94 kg |
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

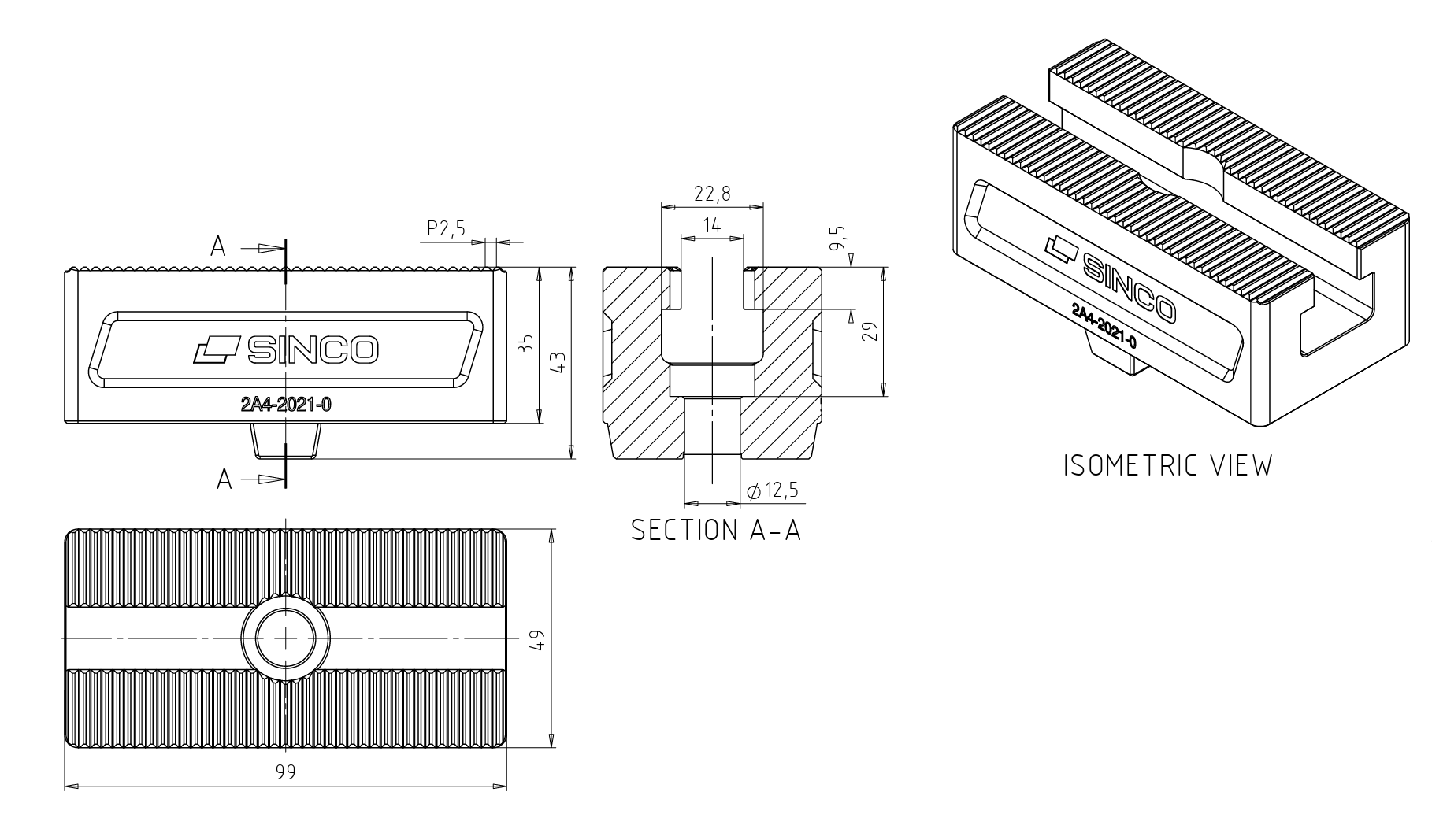

MultiZero Rail W50 L100C (Centric) |
2A4-2021-0 |
35.0 mm |
100.0 mm |
50.0 mm |
0.94 kg |
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

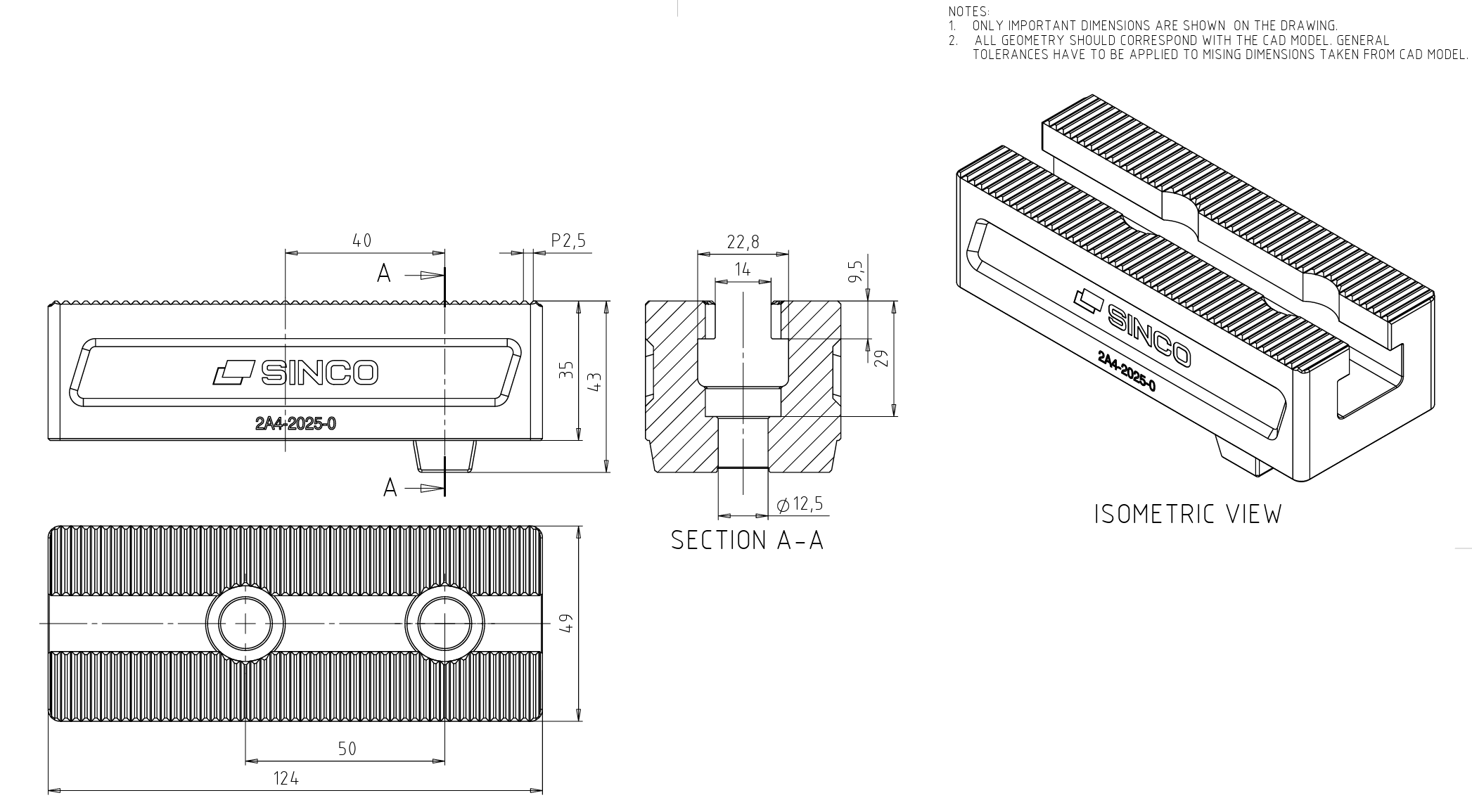

MultiZero Rail W50 L125E (E-centric) |
2A4-2025-0 |
35.0 mm |
125.0 mm |
50.0 mm |
1.17 kg |
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

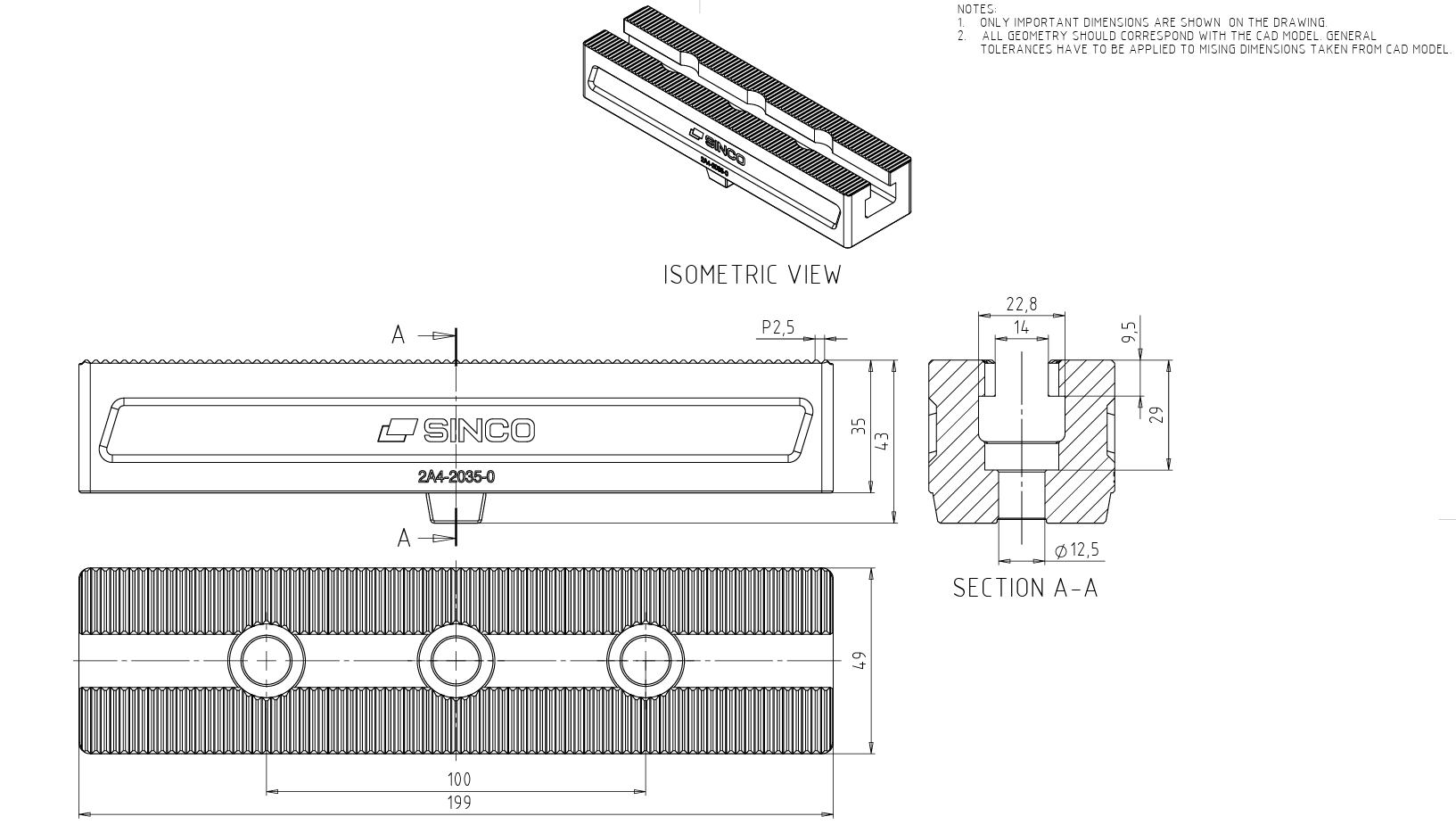

MultiZero Rail W50 L200 (Centric) |
2A4-2035-0 |
35.0 mm |
200.0 mm |
50.0 mm |
1.86 kg |
| Product | Product no. | Height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|
|

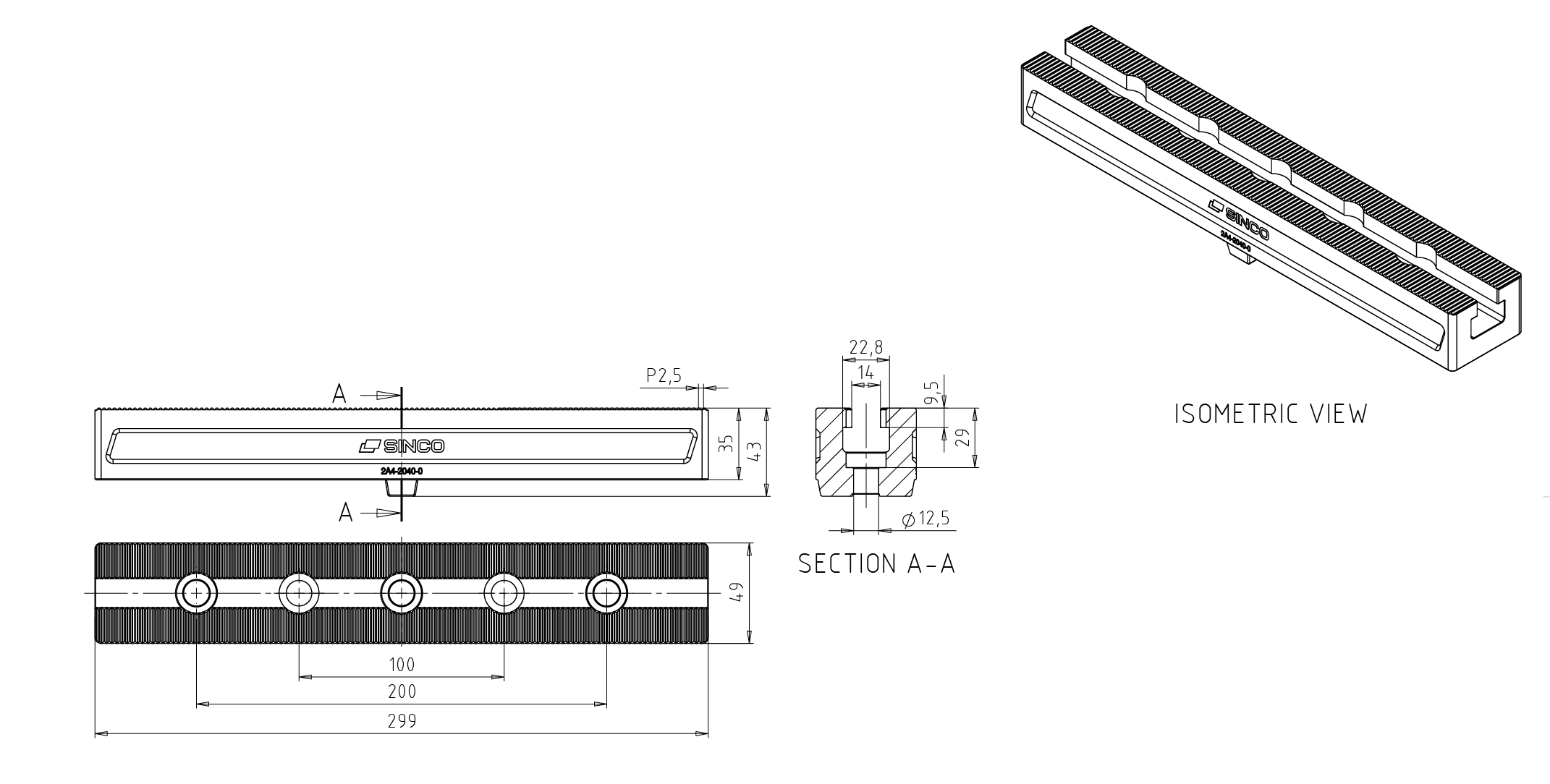

MultiZero Rail W50 L300 (Centric) |
2A4-2040-0 |
35.0 mm |
300.0 mm |
50.0 mm |
2.00 kg |
