MultiZero Tombstone

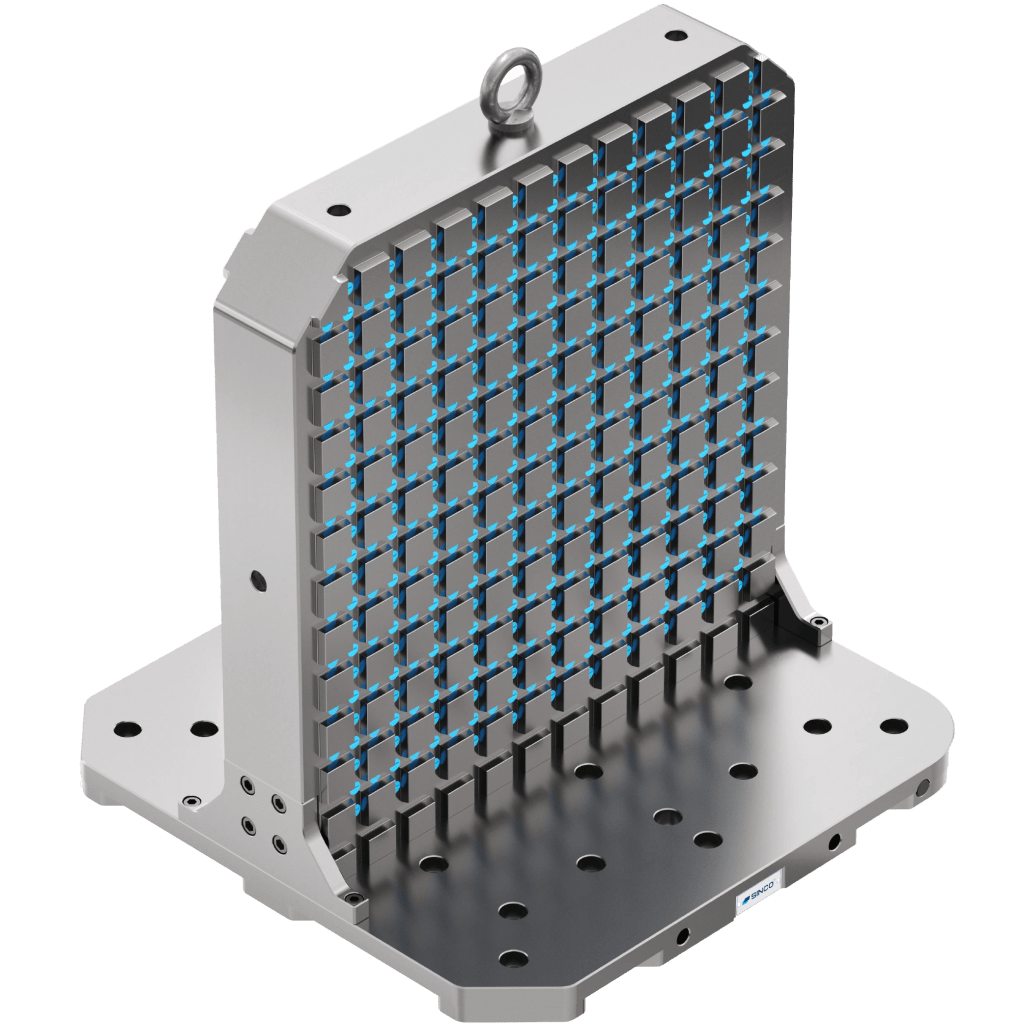

The MultiZero Tombstone & Cube portfolio includes three product types: MultiZero Double Tombstones, MultiZero 4-Sided Cubes, and MultiZero 5-Sided Cubes. The Double Tombstone features two horizontal MultiZero clamping surfaces, while the 4-Sided Cube provides four vertical MultiZero clamping faces. The 5-Sided Cube adds an additional MultiZero clamping surface on the top, enabling even greater machining accessibility. These solutions are ideal for horizontal machining centers as well as gantry-type machines. Thanks to a unique modular design, the tombstone and cube sides are connected internally with specially developed high-rigidity connectors rather than being machined from a single solid block. This design significantly reduces weight while maintaining excellent structural rigidity, allowing higher workpiece capacity and the possibility to fixture larger or heavier components.

MultiZero Tombstone

MultiZero Tombstones for horizontal machines offer high flexibility, low weight, and excellent rigidity for higher machining capacity.
Product Product no. A (mm) H (mm)
MultiZero Tombstone 400 H700
6B1-7005-0
400.0 mm
700.0 mm
Product Product no. A (mm) H (mm)
MultiZero Tombstone 500 H700
6B1-7055-0
500.0 mm
700.0 mm
Product Product no. A (mm) H (mm)
MultiZero Tombstone 630 H700
6B1-7105-0
630.0 mm
700.0 mm
Product Product no. A (mm) H (mm)
MultiZero Tombstone 400 H1000
6B1-7155-0
400.0 mm
1000.0 mm
Product Product no. A (mm) H (mm)
MultiZero Tombstone 500 H1000
6B1-7205-0
500.0 mm
1000.0 mm
Product Product no. A (mm) H (mm)
MultiZero Tombstone 630 H1000
6B1-7255-0
630.0 mm
1000.0 mm
