MultiZero Vise Double Wedge

The MultiZero Double Vise Wedge is a key component of the MultiZero Modular Vise System, designed for efficient, dual-sided workpiece clamping. Mounted on the MultiZero Rail, this double wedge clamp offers precise positioning adjustment with a 2.5 mm pitch, ensuring accurate alignment during machining. With clamping jaws on both sides, it allows you to secure two workpieces simultaneously, streamlining operations. Featuring replaceable jaws with a positive downforce design, it provides durability and protection from dirt, ensuring long-term reliability. Using multiple MultiZero Double Vise Wedges across several rails enables flexible, high-capacity (multiple workpieces) clamping for increased productivity.

MultiZero Vise Double Wedge

The MultiZero Double Vise Wedge offers dual-sided, precise 2.5 mm adjustable clamping for two workpieces at once.

Product Product no. Jaw height (h) Clamping force (kN) Width (w) Weight (kg)

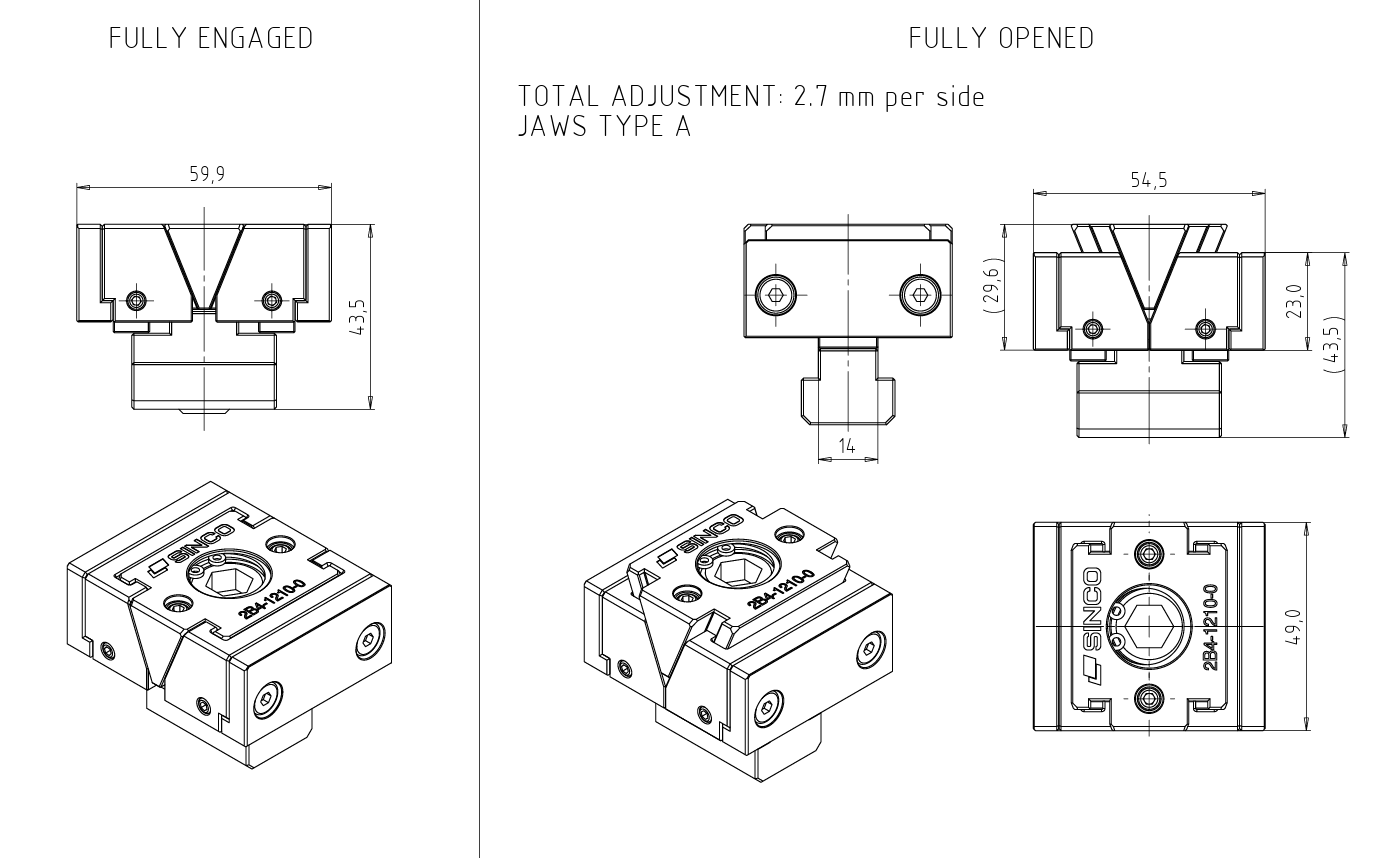

MultiZero Vise Double Wedge W50 H23
2B4-1210-0
23.0 mm
15 kN per side
50.0 mm
0.56 kg
Product Product no. Jaw height (h) Clamping force (kN) Width (w) Weight (kg)

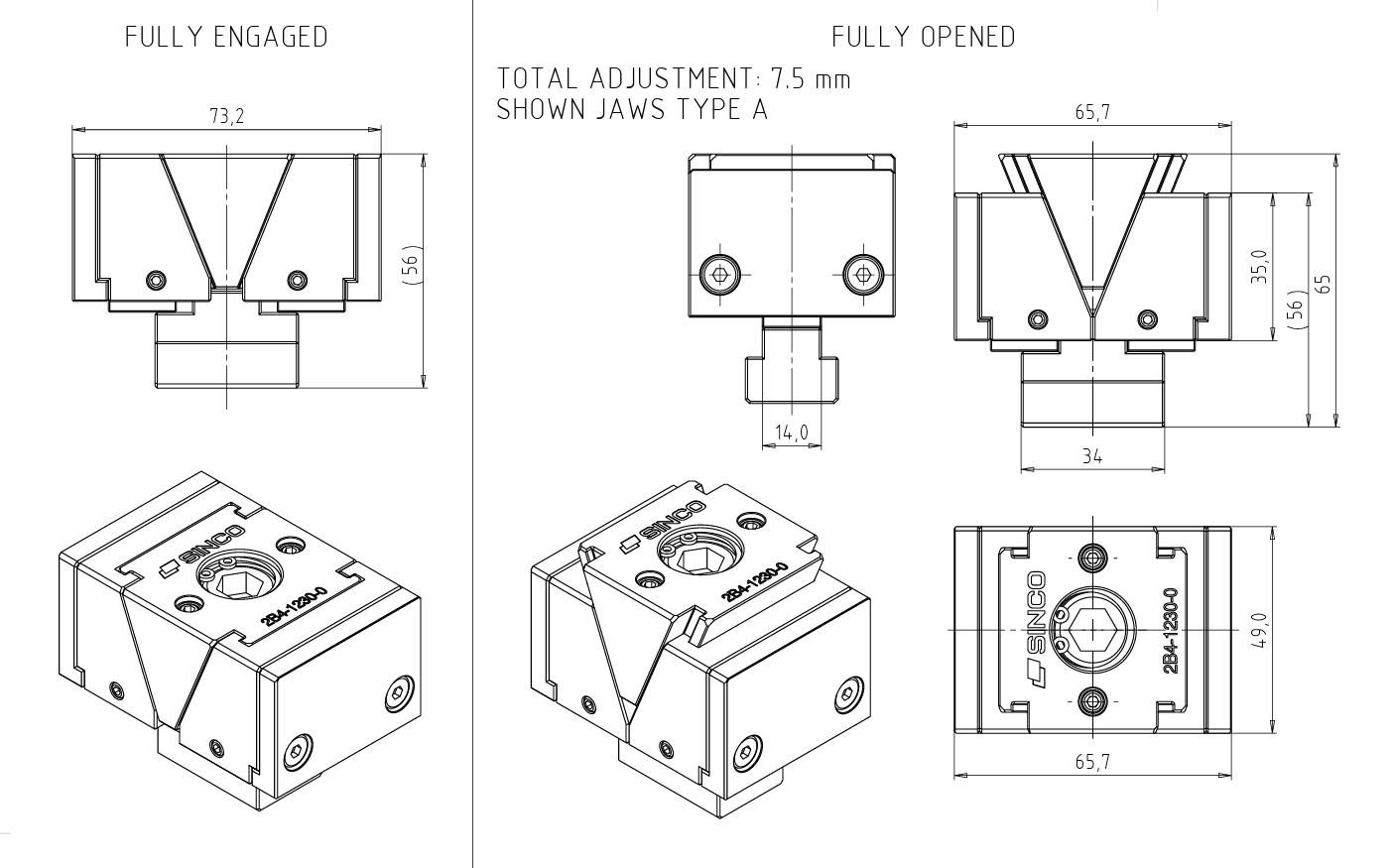

MultiZero Vise Double Wedge W50 H35
2B4-1230-0
35.0 mm
30 kN per side
50.0 mm
1.03 kg
