MultiZero Vise Slider
The MultiZero Vise Slider is a versatile add-on for the MultiZero Single Wedge Vise, designed to facilitate minimal surface clamping with MultiZero Modular Vises. This dual-function slider features smooth clamping jaws (5mm depth) on one side and rough clamping jaws (3mm depth) on the other, allowing seamless switching with a simple flip. By combining MultiZero Vise Sliders with MultiZero Modular Vises, users can achieve maximum clamping range with minimal surface engagement, ensuring precise and efficient clamping for a variety of machining needs.
MultiZero Vise Slider M8
The MultiZero Vise Slider M8 adds 3mm (rough) and 5mm (smooth) minimal surface clamping to the MultiZero Single Wedge Vise.
| Product | Product no. | Smooth jaw height (h) | Rough jaw height (h) | Width (w) | Weight (g) |
|---|---|---|---|---|---|
|
MultiZero Vise Slider M8 W50 H23 |
4B4-1345-0 |
5.0 mm |
3.0 mm |
50.0 mm |
237 g |
| Product | Product no. | Smooth jaw height (h) | Rough jaw height (h) | Width (w) | Weight (g) |
|---|---|---|---|---|---|
|
MultiZero Vise Slider M8 W50 H35 |
4B4-1380-0 |
5.0 mm |
3.0 mm |
50.0 mm |
337 g |

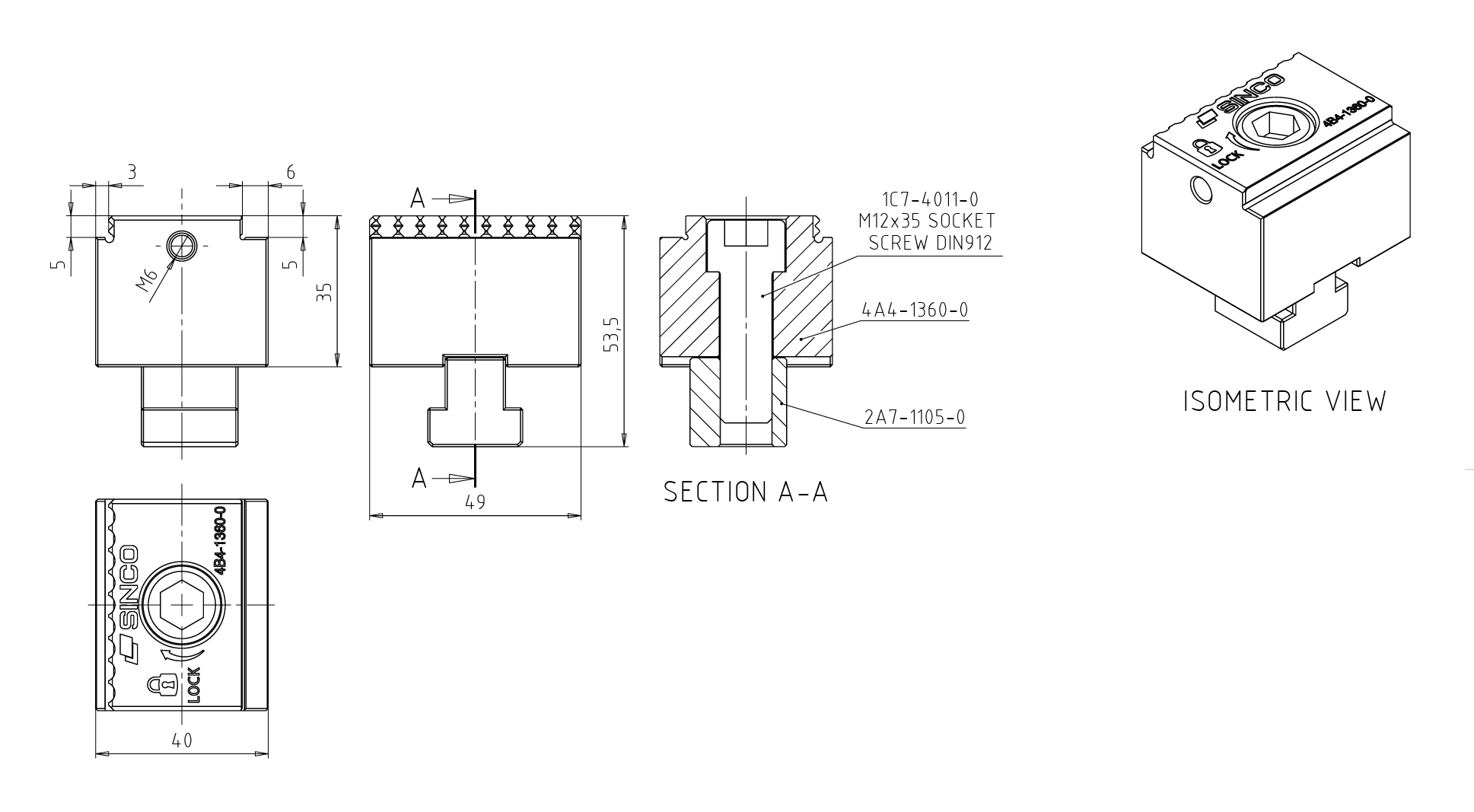

MultiZero Vise Slider M12
The MultiZero Vise Slider M12 offers 5mm minimal clamping and enhanced pull-down force, ideal for larger workpieces.
| Product | Product no. | Smooth jaw height (h) | Rough jaw height (h) | Width (w) | Weight (g) |
|---|---|---|---|---|---|
|
MultiZero Vise Slider M12 W50 H35 |
4B4-1360-0 |
5.0 mm |
5.0 mm |
50.0 mm |
552 g |
