5XGrip Centering Vise Jaws
The 5XGrip Centering Vise is delivered with a set of fine jaws (5XGrip Jaw Type A) featuring a 5mm clamping step, ideal for precision milling operations. Additionally, customers can purchase extra Type A jaw pads or opt for the 5XGrip Jaw Pad Type B set, which has a 3mm rough clamping step. Type B jaw pads are specifically designed for securing raw materials and rough milling applications.

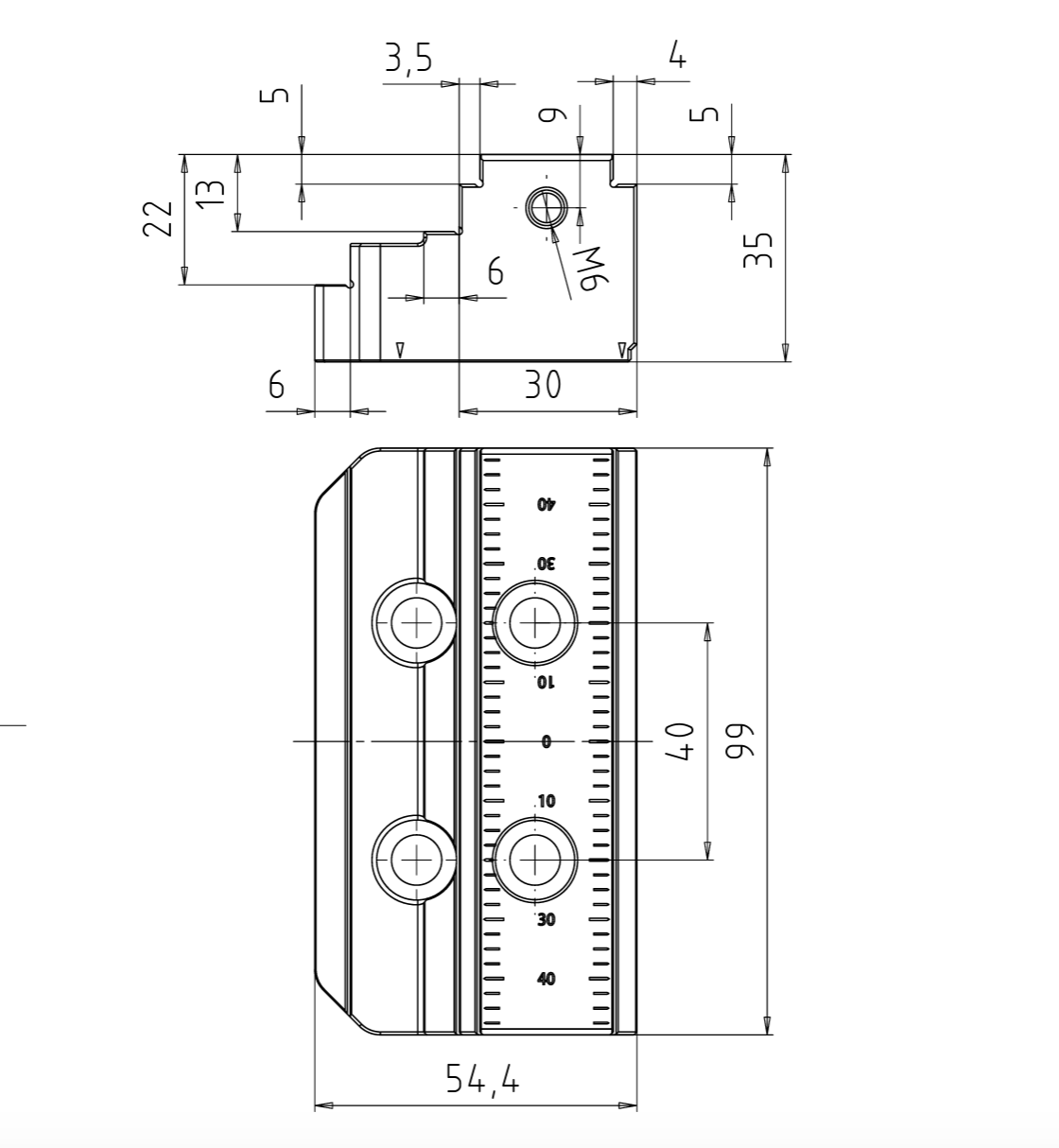

5XGrip Jaw Pad Type A
The 5XGrip comes with clamping step 5mm Type A fine jaws; and step 3mm Type B jaws for rough milling to be added optionally.
| Product | Product no. | Height (h) | Width (w) | Clamping step (h) | Weight (kg) |
|---|---|---|---|---|---|
|
5XGrip Jaw Pad Type A |
3A4-5180-0 |
35.0 mm |
99.0 mm |
5.0 mm |
555,5 g |

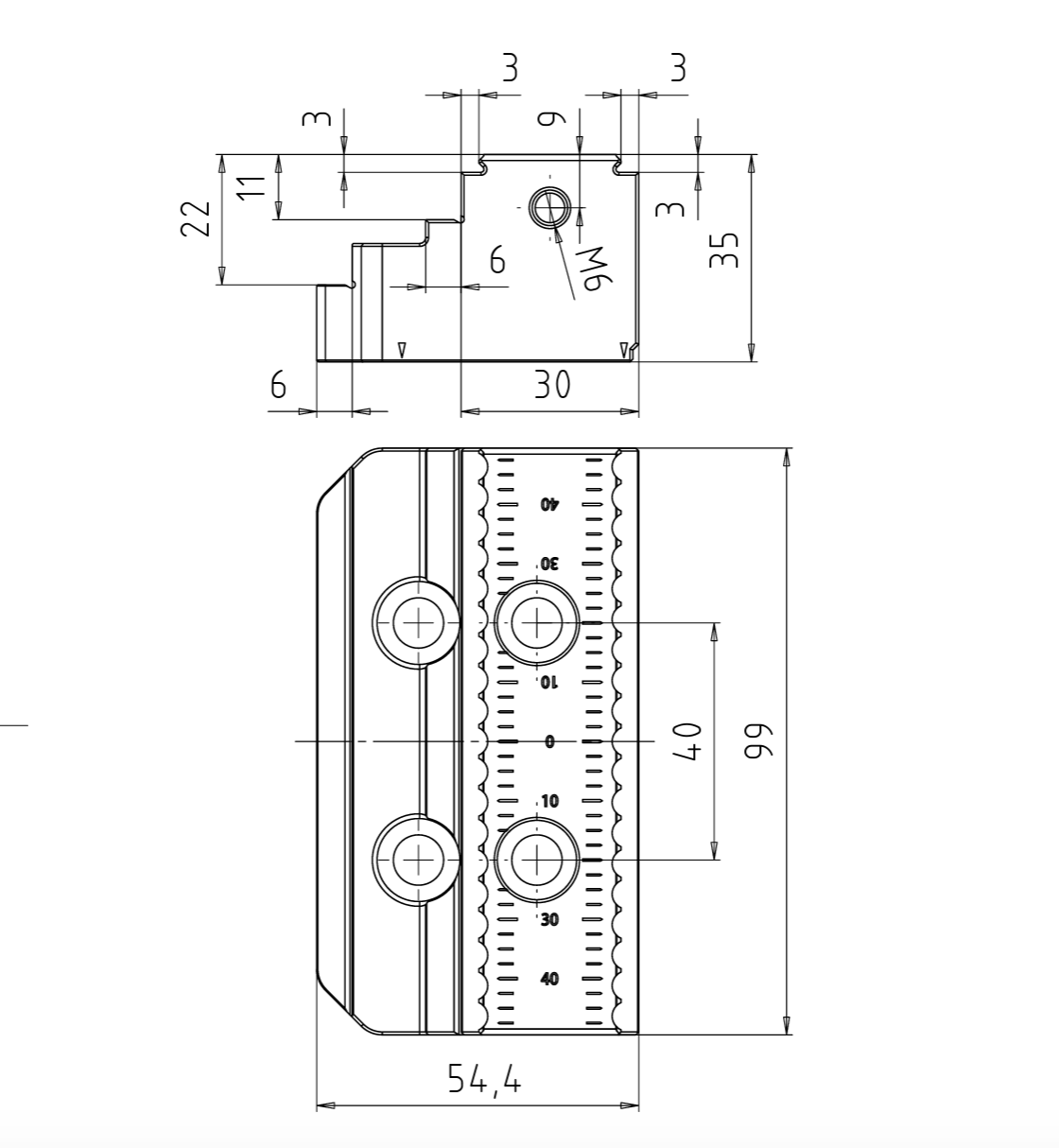

5XGrip Jaw Pad Type B
The 5XGrip comes with clamping step 5mm Type A fine jaws; and step 3mm Type B jaws for rough milling to be added optionally.
| Product | Product no. | Height (h) | Width (w) | Clamping step (h) | Weight (kg) |
|---|---|---|---|---|---|
|
5XGrip Jaw Pad Type B |
3A4-5185-0 |
35.0 mm |
99.0 mm |
3.0 mm |
560,0 g |
