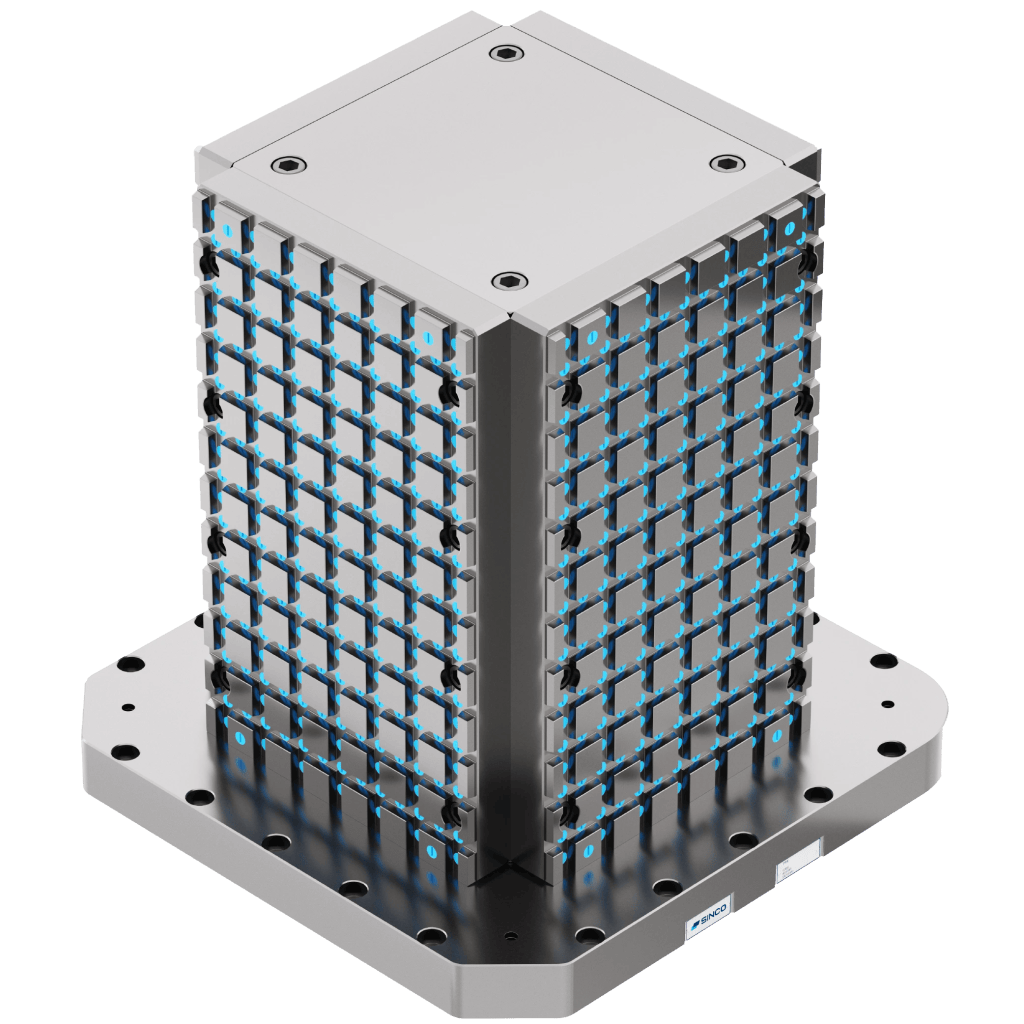

MultiZero 4-Sided Cube
The MultiZero 4-Sided Cube features four vertical MultiZero clamping surfaces, providing a flexible workholding solution for 4-axis horizontal machining centers. Each side can be equipped with workholding devices from across the MultiZero portfolio, allowing the setup to be quickly adapted to different workpiece sizes and shapes. The MultiZero interface provides freedom in positioning the workholding components across all four sides, offering a more flexible approach to horizontal machining compared to conventional fixed workholding setups.
MultiZero 4-Sided Cube
MultiZero 4-Sided Cube provides flexible workholding on four sides for 4-axis horizontal machining.
| Product | Product no. | AxA (mm) | H (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
|
MultiZero 4-Sided Cube 400 H600 |
6B1-7505-0 |
400×400 mm |
600.0 mm |
300.0 mm |
200.0 mm |
| Product | Product no. | AxA (mm) | H (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
|
MultiZero 4-Sided Cube 500 H600 |
6B1-7555-0 |
500×500 mm |
600.0 mm |
400.0 mm |
300.0 mm |
| Product | Product no. | AxA (mm) | H (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
|
MultiZero 4-Sided Cube 630 H600 |
6B1-7605-0 |
630×630 mm |
600.0 mm |
500.0 mm |
400.0 mm |
| Product | Product no. | AxA (mm) | H (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
|
MultiZero 4-Sided Cube 400 H800 |
6B1-7655-0 |
400×400 mm |
800.0 mm |
300.0 mm |
200.0 mm |
| Product | Product no. | AxA (mm) | H (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
|
MultiZero 4-Sided Cube 500 H800 |
6B1-7705-0 |
500×500 mm |
800.0 mm |
400.0 mm |
300.0 mm |
| Product | Product no. | AxA (mm) | H (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
|
MultiZero 4-Sided Cube 630 H800 |
6B1-7755-0 |
630×630 mm |
800.0 mm |
500.0 mm |
400.0 mm |
