MultiZero INT Pallet
The MultiZero INT Pallet (Integration Pallet) is designed to allow third-party risers and workholding elements to be integrated into the MultiZero clamping system. Customer-specific clamping devices can be mounted in the center of the INT Pallet and then used on the MultiZero system in the same way as any standard MultiZero workholding component. The INT Pallet features a central positioning hole (H7 hole) on the top side and a threaded mounting hole from the underside for secure fixation. The pallets are available in sizes 125 and 190, with central thread options of M10, M12, M16, and M24.

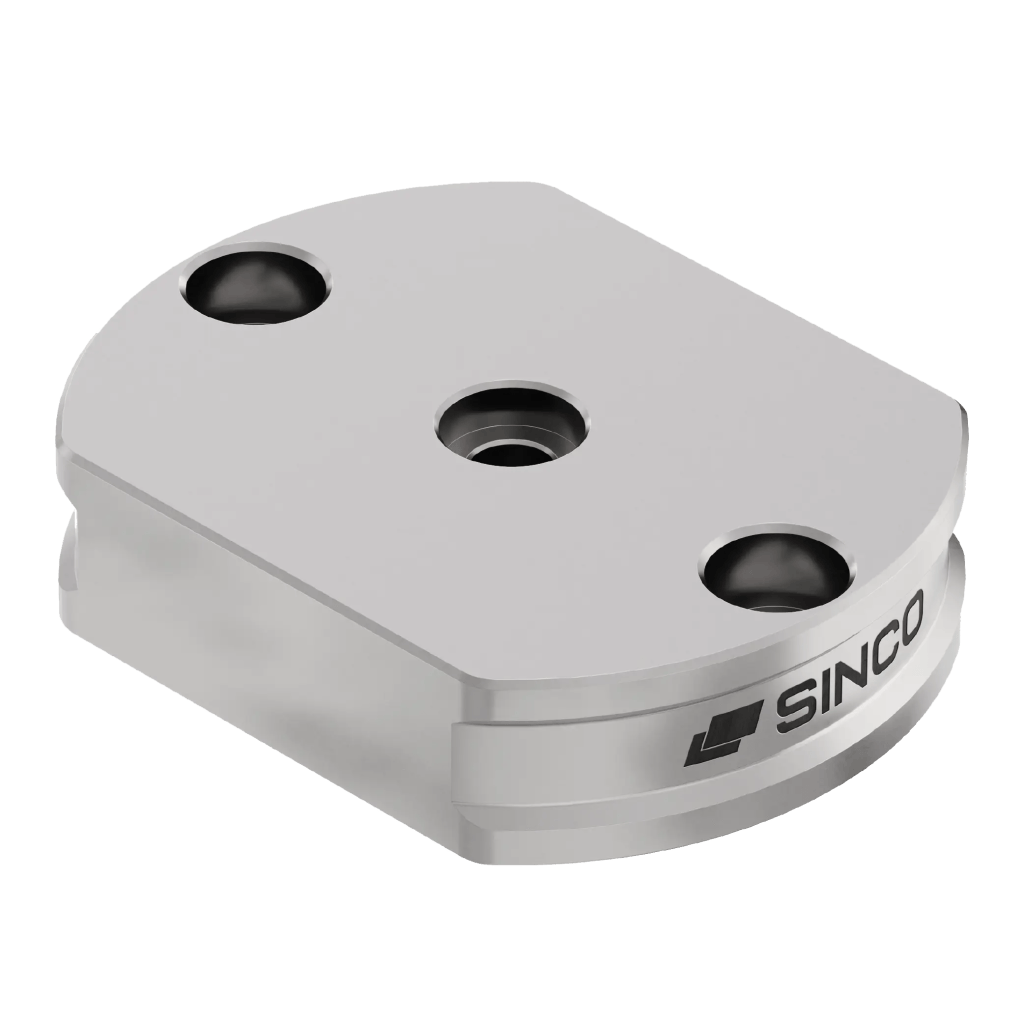

MultiZero INT Pallet 125
MultiZero INT Pallet enables third-party risers and workholding components to be easily integrated into the MultiZero Clamping System.
| Product | Product no. | Dimmensions (mm) | Height (h) | Center thread | Positioning hole | Weight (kg) |
|---|---|---|---|---|---|---|
|
MultiZero INT Pallet 125 M10 |
6A2-2570-0 |
Ø125×96 mm |
30.0 mm |
M10 |
Ø20.0 H7 |
2.3 kg |
| Product | Product no. | Dimmensions (mm) | Height (h) | Center thread | Positioning hole | Weight (kg) |
|---|---|---|---|---|---|---|
|
MultiZero INT Pallet 125 M12 |
6A2-2580-0 |
Ø125×96 mm |
30.0 mm |
M12 |
Ø20.0 H7 |
2.3 kg |
| Product | Product no. | Dimmensions (mm) | Height (h) | Center thread | Positioning hole | Weight (kg) |
|---|---|---|---|---|---|---|
|
MultiZero INT Pallet 125 M16 |
6A2-2590-0 |
Ø125×96 mm |
30.0 mm |
M16 |
Ø20.0 H7 |
2.3 kg |

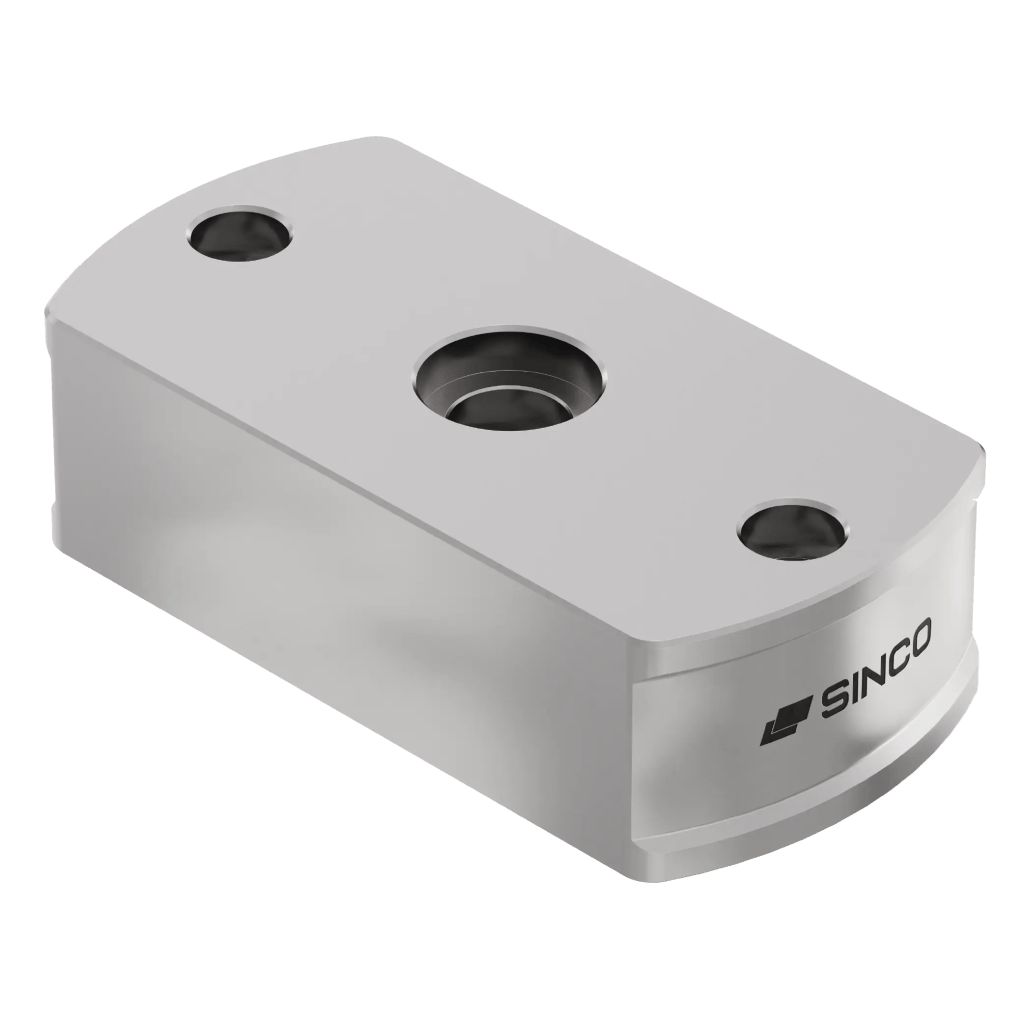

MultiZero INT Pallet 190
MultiZero INT Pallet enables third-party risers and workholding components to be easily integrated into the MultiZero Clamping System.
| Product | Product no. | Dimmensions (mm) | Height (h) | Center thread | Positioning hole | Weight (kg) |
|---|---|---|---|---|---|---|
|
MultiZero INT Pallet 190 M24 |
6A2-2630-0 |
Ø190×96 mm |
55.0 mm |
M24 |
Ø36.0 H7 |
6.9 kg |
