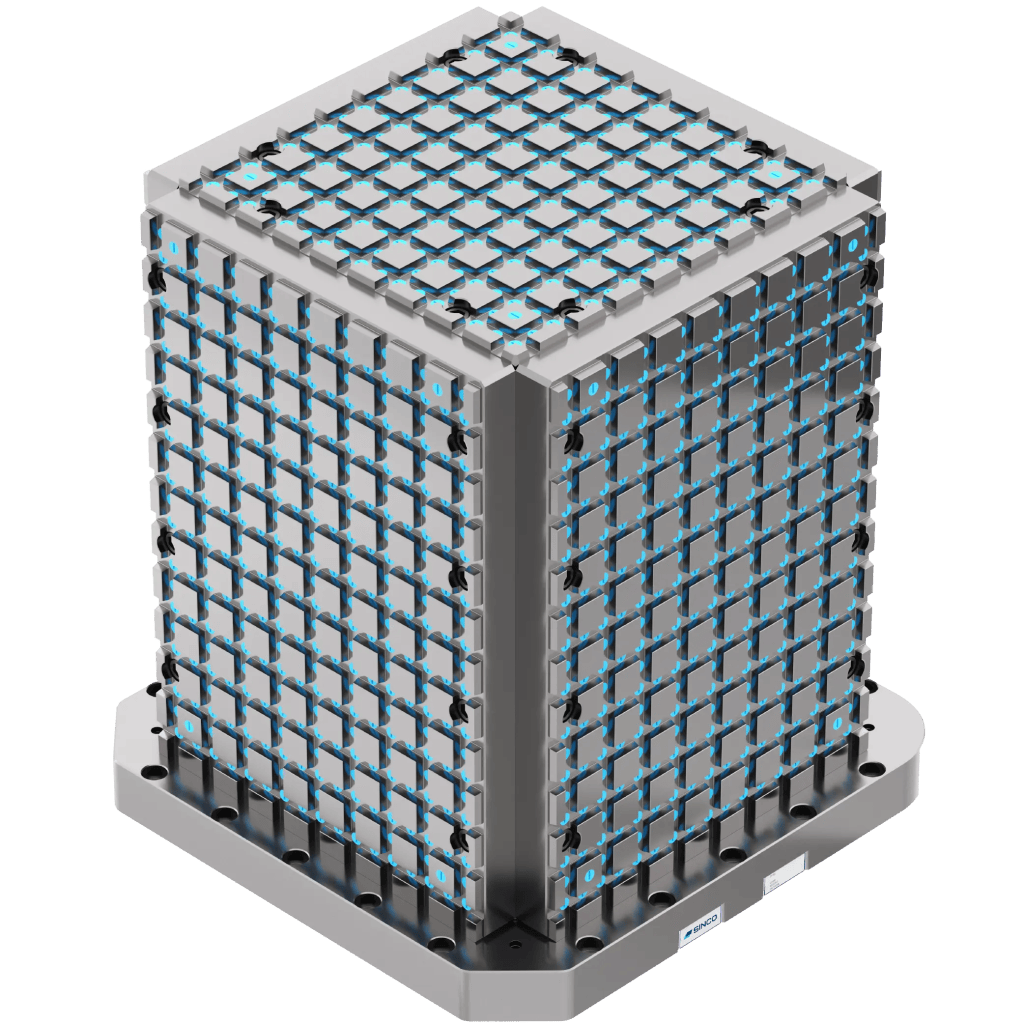

MultiZero 5-Sided Cube

The MultiZero 5-Sided Cube features four vertical MultiZero clamping surfaces and an additional clamping surface on top, providing a flexible workholding solution for 5-axis horizontal machining centers, gantry machines, and large 3+2-axis milling machines. The fifth surface enables workpieces to be mounted and machined on top of the cube, further increasing the available clamping possibilities. Each surface can be equipped with workholding devices from across the MultiZero portfolio, allowing setups to be quickly adapted to different workpiece sizes and shapes. Compared to the 4-Sided Cube, the 5-Sided Cube has a lower overall height to provide additional clearance for workpieces mounted on the top surface. Its modular construction combines high structural rigidity with reduced weight compared to a conventional solid-block design.

MultiZero 5-Sided Cube

MultiZero 5-Sided Cube provides five-sided flexible workholding for 5-axis horizontal, gantry, and 3+2-axis machining.

Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 400 H200
6B1-7805-0
400×400 mm
200.0 mm
300.0 mm
200.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 400 H300
6B1-7855-0
400×400 mm
300.0 mm
300.0 mm
200.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 500 H300
6B1-7905-0
500×500 mm
300.0 mm
400.0 mm
300.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 500 H400
6B1-7955-0
500×500 mm
400.0 mm
400.0 mm
300.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 630 H400
6B1-8005-0
630×630 mm
400.0 mm
500.0 mm
400.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 630 H500
6B1-8055-0
630×630 mm
500.0 mm
500.0 mm
400.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 800 H400
6B1-8105-0
800×800 mm
400.0 mm
650.0 mm
550.0 mm
Product Product no. AxA (mm) H (mm) B (mm) C (mm)
MultiZero 5-Sided Cube 800 H500
6B1-8155-0
800×800 mm
500.0 mm
650.0 mm
550.0 mm
