MultiZero Adapters

MultiZero Adapters are designed to elevate workholding components, providing additional height and collision clearance for 5-axis machining operations. Standard Adapters are primarily used beneath MultiZero Rails and can be freely positioned or stacked to achieve the required elevation. Rail Adapters combine the adapter and rail functions into a single rigid element, allowing MultiZero Wedge Vises, Spindle Vises and other components to be mounted directly at an increased height. Multiple Rail Adapters can also be connected in series to create longer elevated configurations for clamping several workpieces simultaneously.

MultiZero Adapters

Elevates MultiZero Rails and workholding components to provide additional height and collision clearance for 5-axis machining.

Product Product no. Height (h) Length (l) Width (w) Weight (kg)
MultiZero Adapter L125 H100
5A3-2235-0
100.0 mm
125.0 mm
49.0 mm
3.80 kg
Product Product no. Height (h) Length (l) Width (w) Weight (kg)
MultiZero Adapter L200 H100
5A3-2240-0
100.0 mm
200.0 mm
49.0 mm
6.00 kg

MultiZero Rail Adapters

Combines a MultiZero Rail with additional height, enabling direct and rigid mounting of MultiZero Vises for 5-axis machining.

Product Product no. Height (h) Length (l) Width (w) Weight (kg)
MultiZero Rail Adapter W50 L125 H100
5A3-2237-0
100.0 mm
125.0 mm
49.0 mm
3.60 kg
Product Product no. Height (h) Length (l) Width (w) Weight (kg)

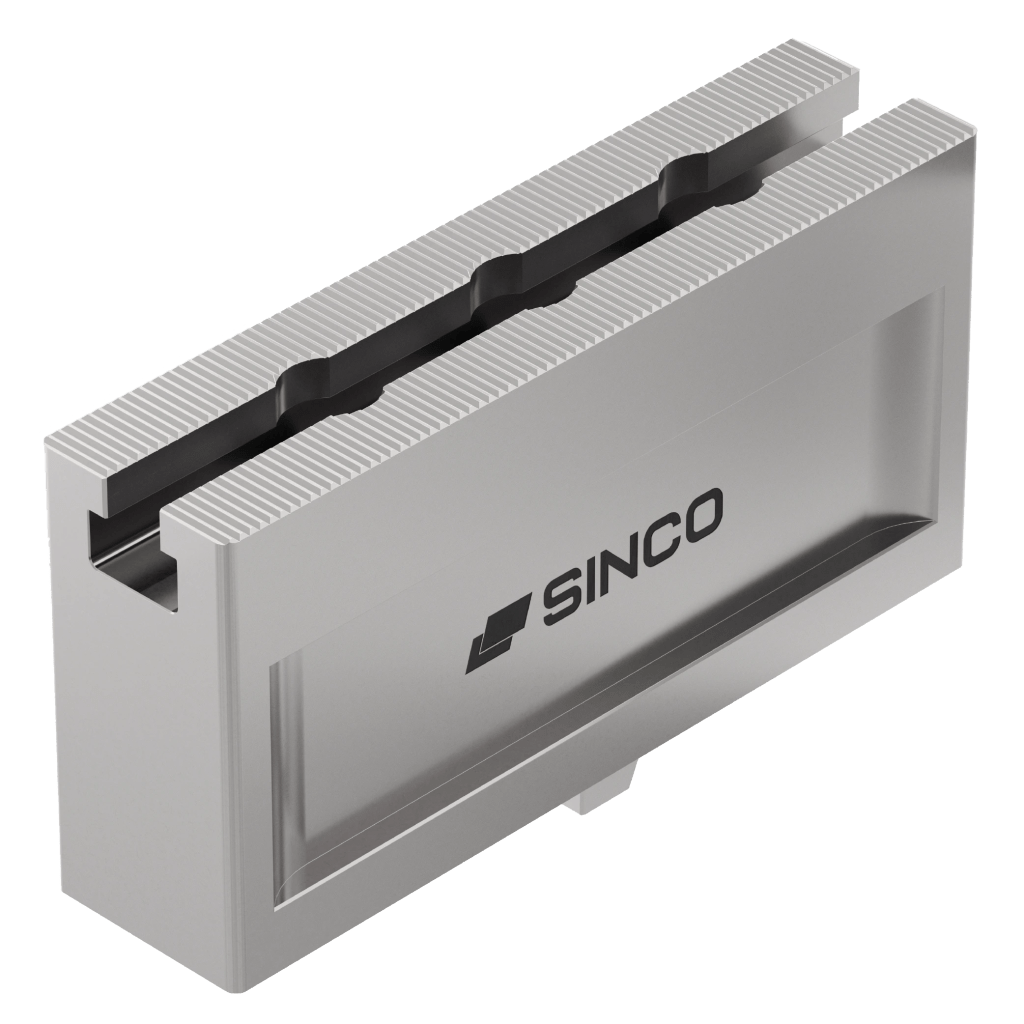

MultiZero Rail Adapter W50 L200 H100
5A3-2242-0
100.0 mm
200.0 mm
49.0 mm
5.80 kg
