MultiZero Prismatic Supports
MultiZero Prismatic Supports are essential support elements designed to stabilize round workpieces during machining, minimizing vibrations and ensuring greater overall stability. They come in a variety of sizes and configurations, including upper, side, and diagonal support options, allowing for flexible adaptation to different workpiece geometries. Multiple prismatic supports can be combined to provide enhanced stability for larger or irregularly shaped round workpieces, making them an ideal solution for improving machining precision and reducing potential deflection during the process.

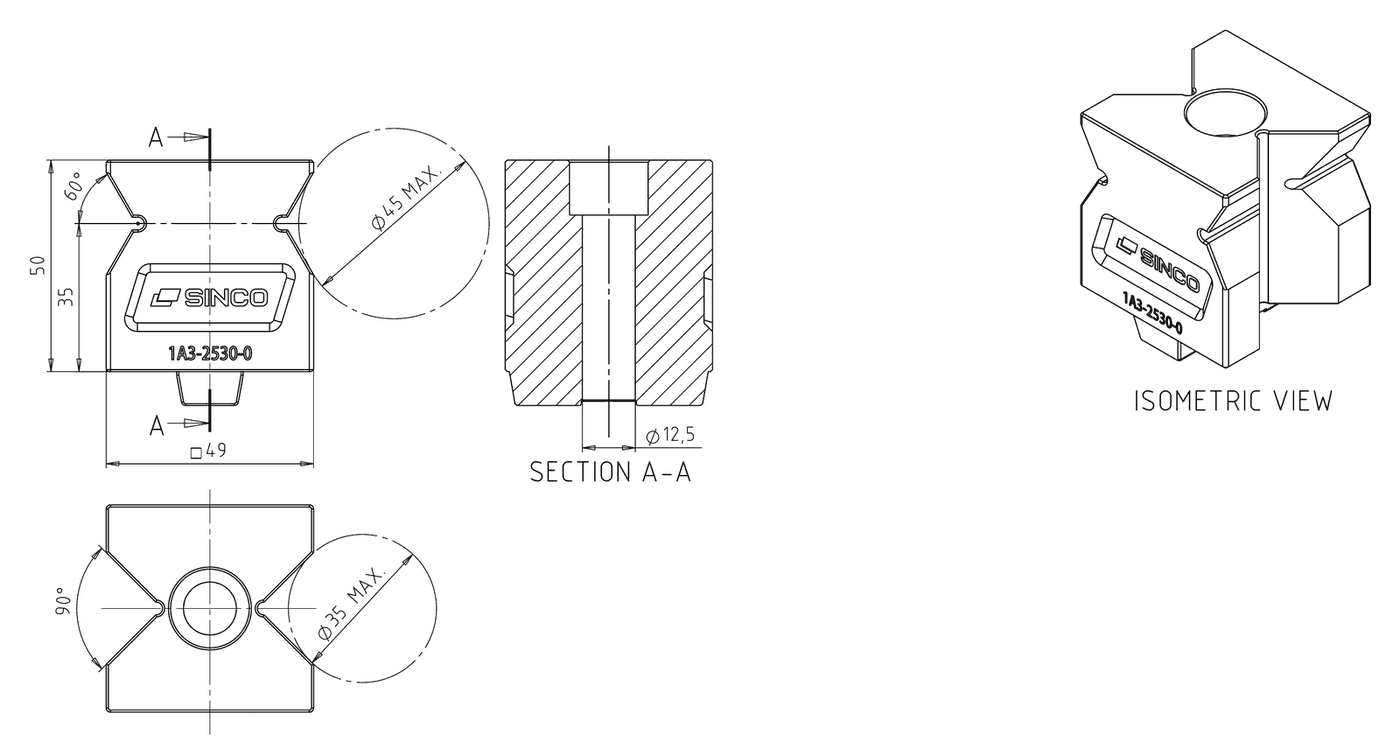

MultiZero Prismatic Support H W50 H50 90
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support sides (s) | Width (w) | Support position (p) | Max. workpiece D1 | Max. workpiece D2 | Weight (kg) |
|---|---|---|---|---|---|---|
|
1A3-2530-0 |
2x |
49.0 mm |
Side |
Ø45.0 mm |
Ø 35.0 mm |
0.66 kg |
MultiZero Prismatic Support H W50 H35 120
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support sides (s) | Width (w) | Support position (p) | Max. workpiece D1 | Max. workpiece D2 | Weight (kg) |
|---|---|---|---|---|---|---|
|
1A3-2540-0 |
2x |
49.0 mm |
Side |
Ø35.0 mm |
Ø 55.0 mm |
0.47 kg |

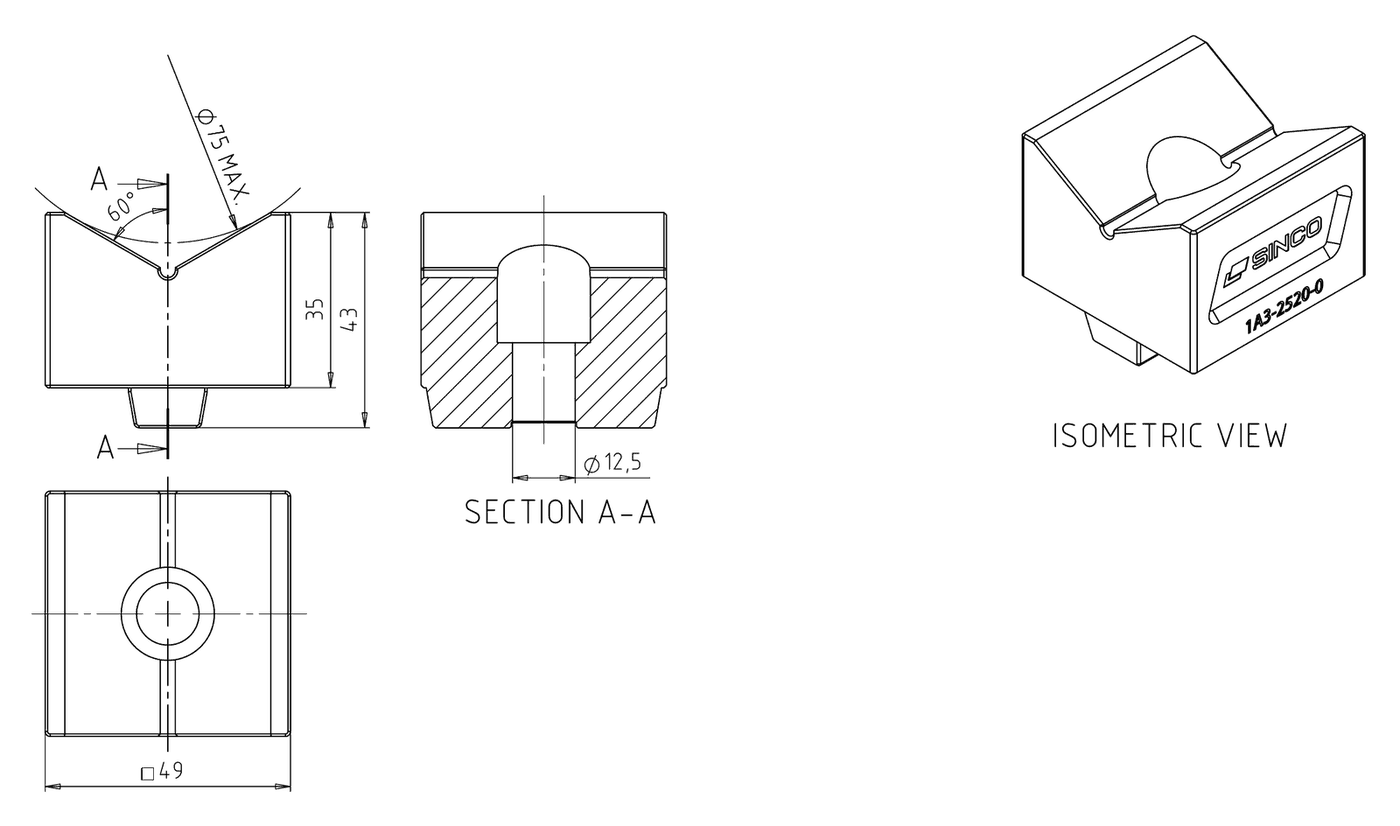

MultiZero Prismatic Support V W50 H35 120
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support height (h) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2520-0 |
35.0 mm |
49.0 mm |
Up |
Ø 75.0 mm |
0.51 kg |

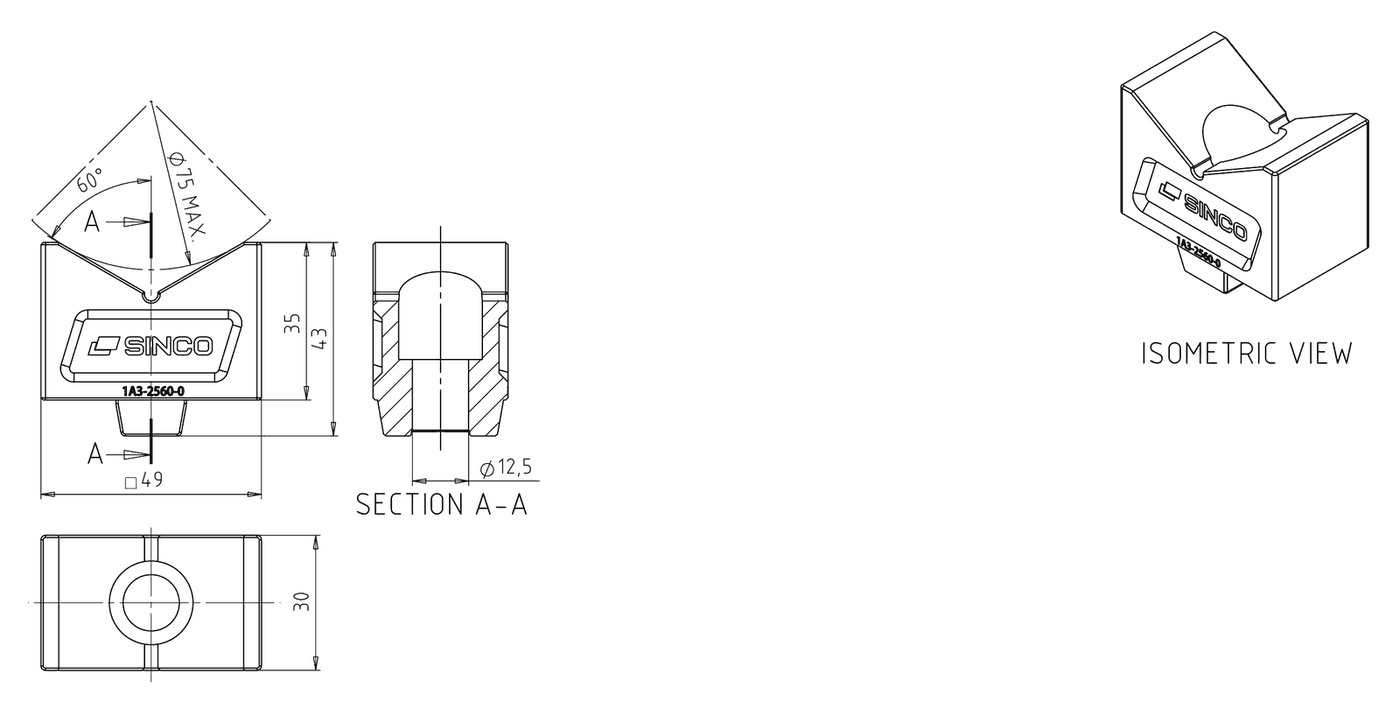

MultiZero Prismatic Support V W30 H35 120
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support height (h) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2560-0 |
35.0 mm |
30.0 mm |
Up |
Ø 75.0 mm |
0.30 kg |

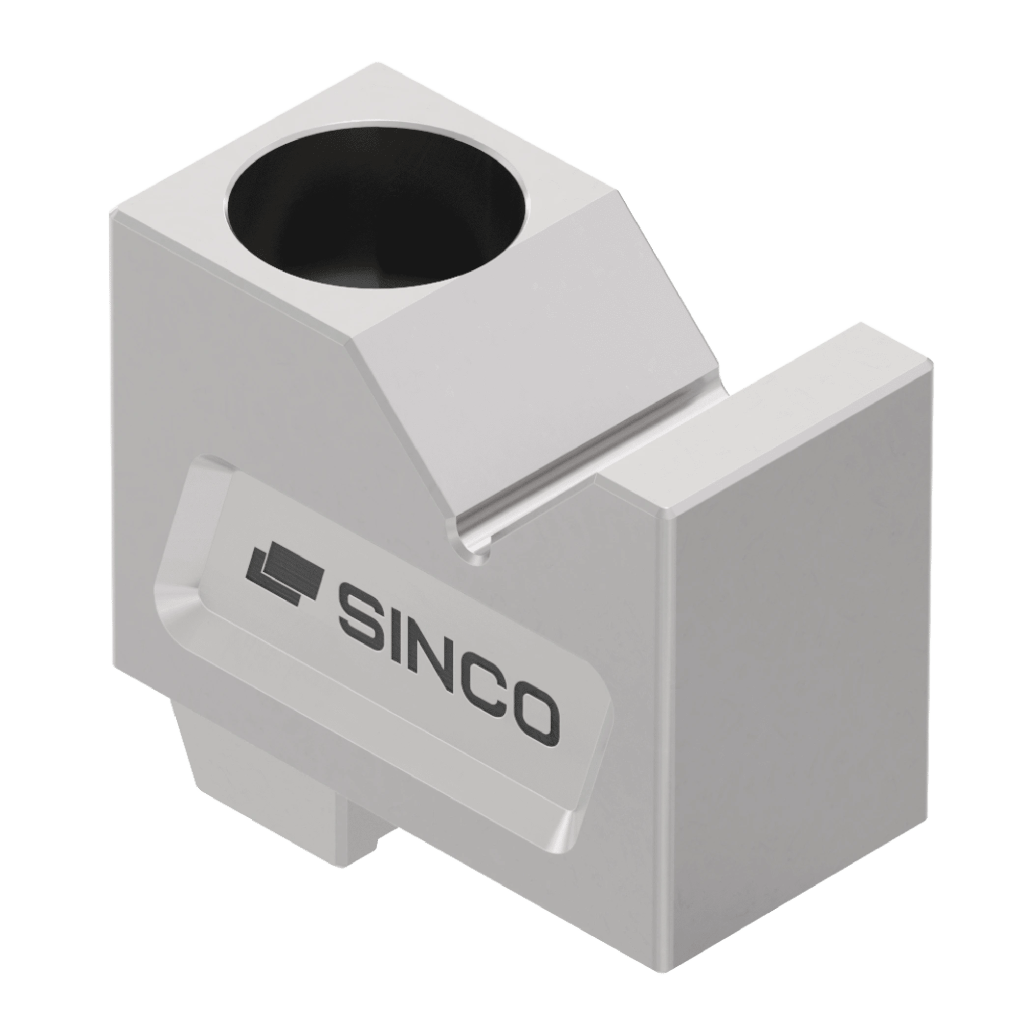

MultiZero Prismatic Support V W25 H35 90
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support height (h) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2505-0 |
35.0 mm |
49.0 mm |
Up |
Ø 25.0 mm |
0.25 kg |

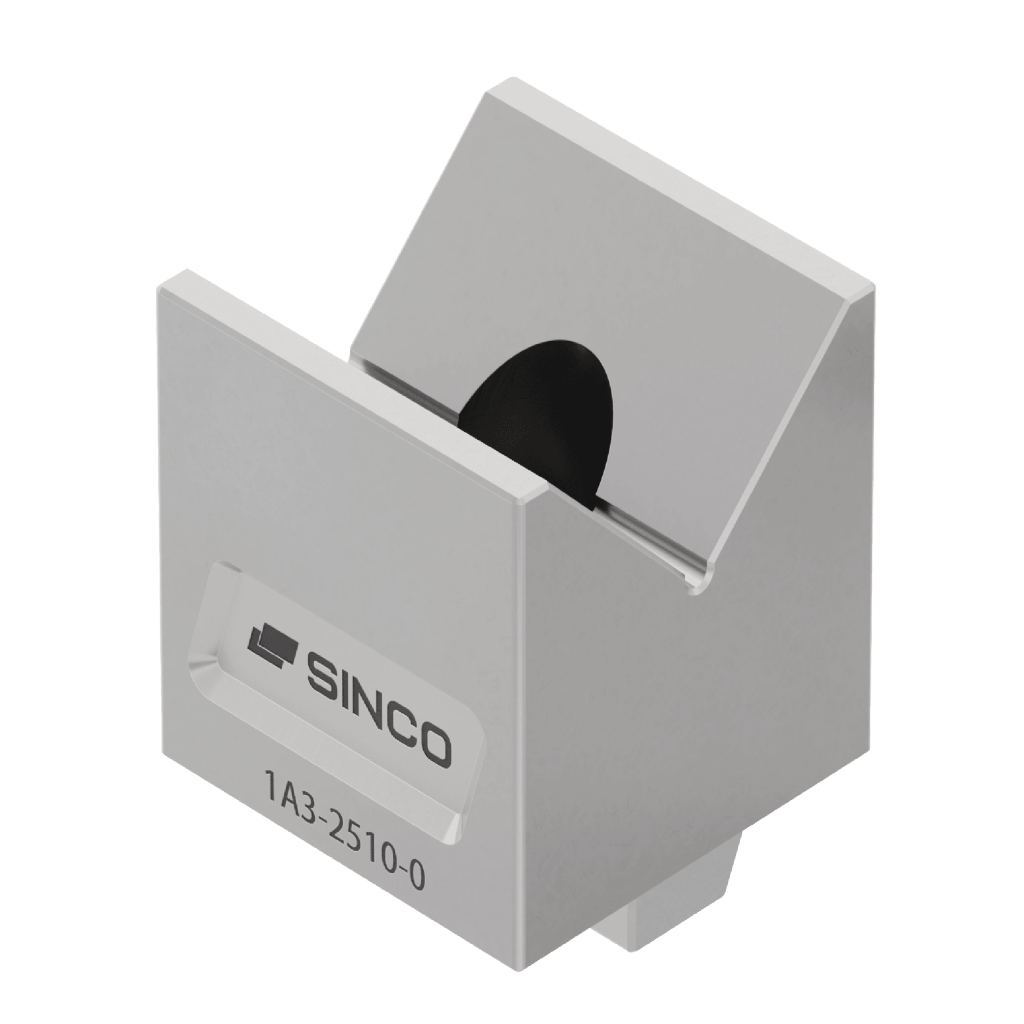

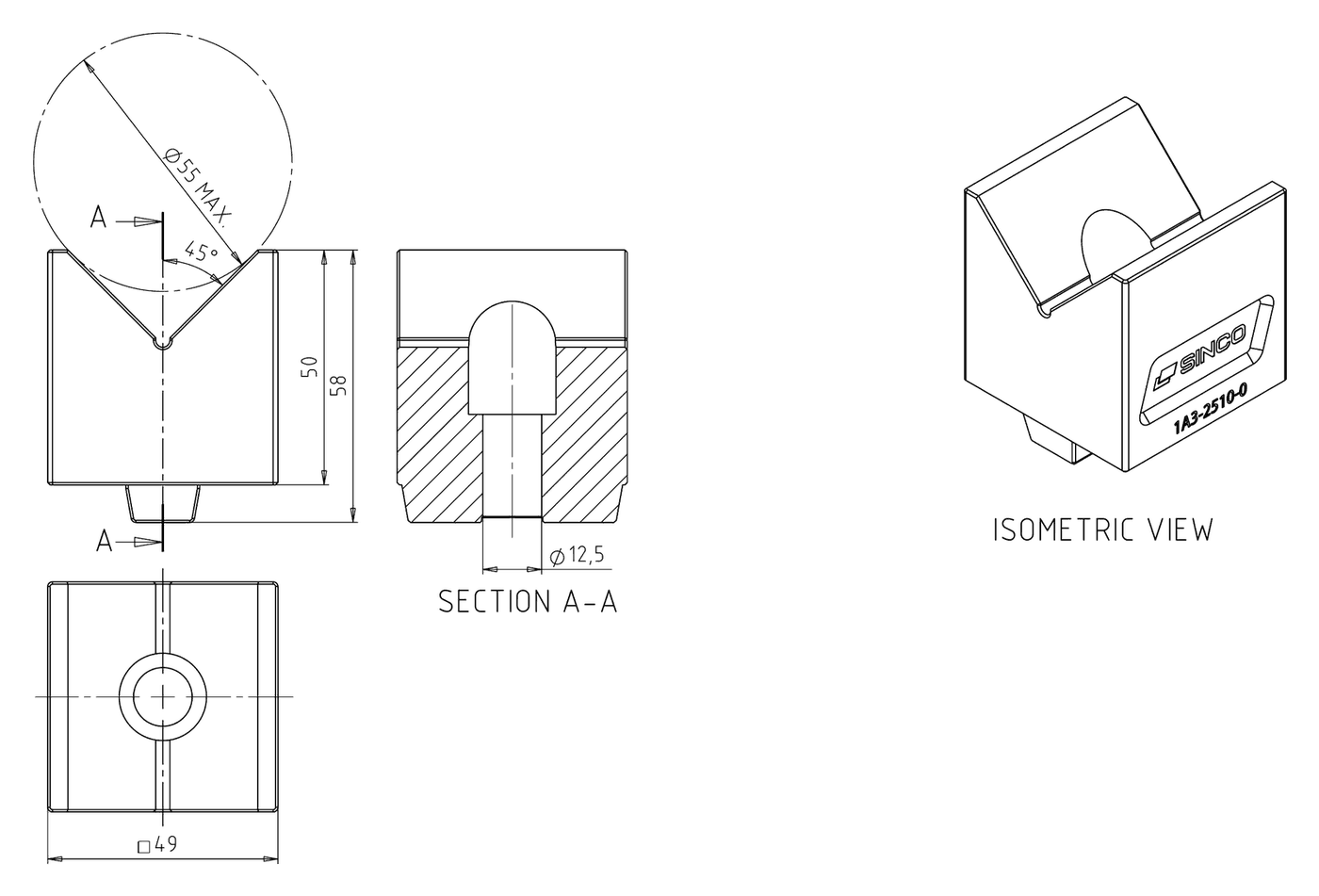

MultiZero Prismatic Support V W50 H50 90
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support height (h) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2510-0 |
50.0 mm |
49.0 mm |
Up |
Ø 55.0 mm |
0.65 kg |

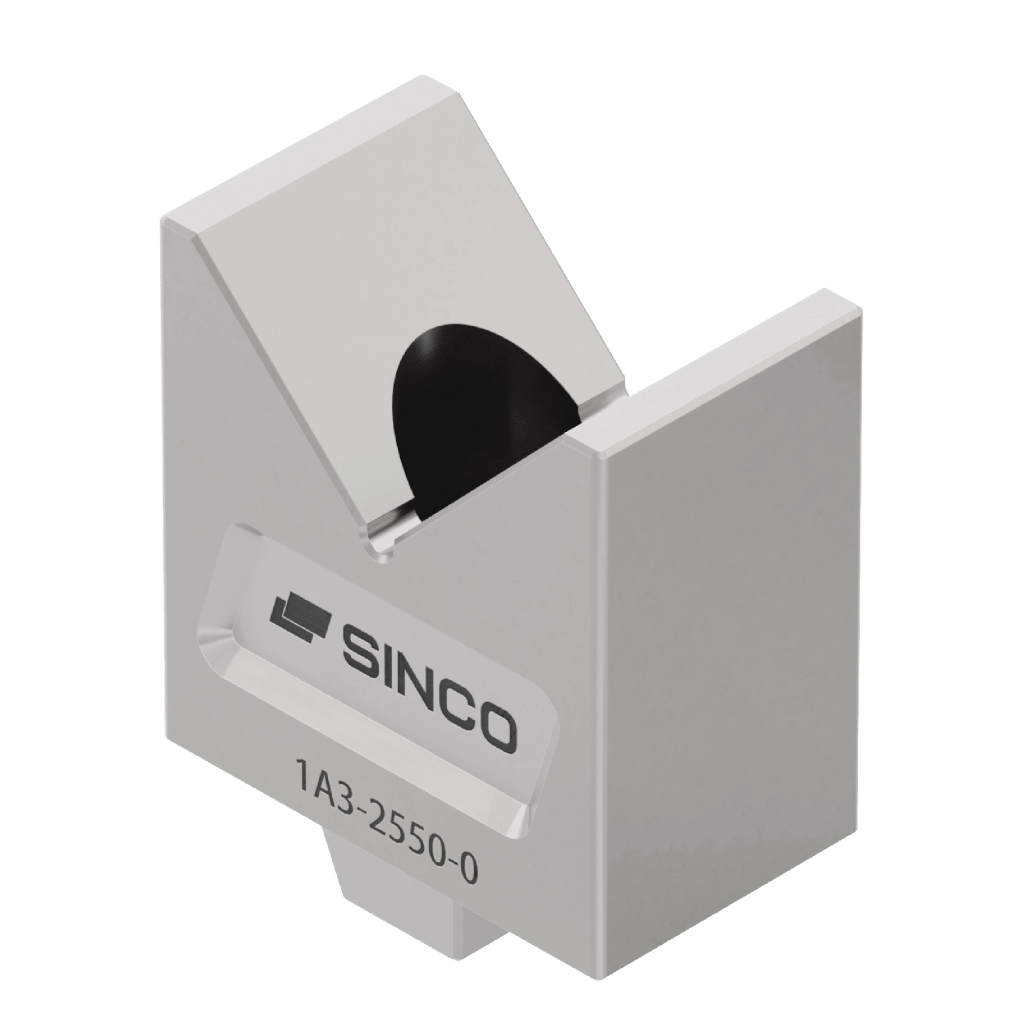

MultiZero Prismatic Support V W30 H50 90
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support height (h) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2550-0 |
30.0 mm |
49.0 mm |
Up |
Ø 55.0 mm |
0.39 kg |

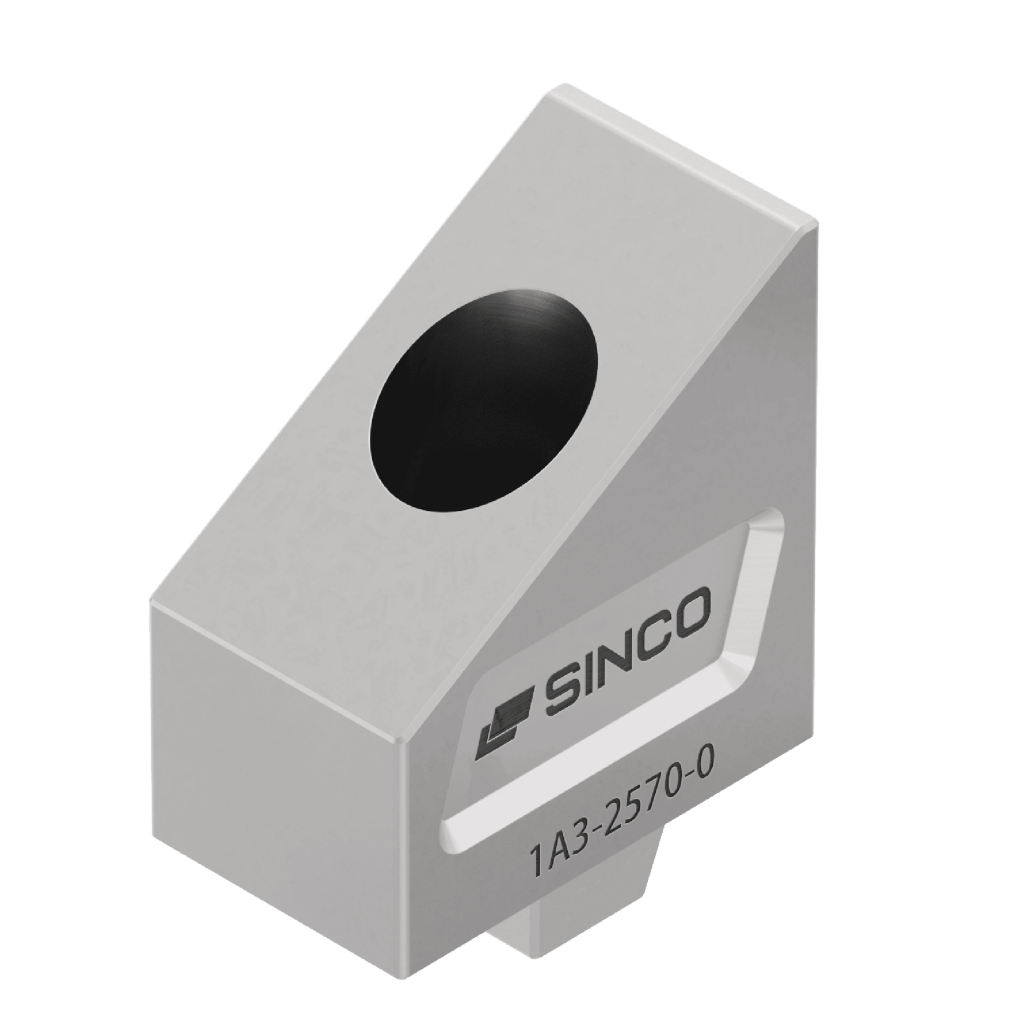

MultiZero Prismatic Support V W30 L50 120
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support side length (l) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2570-0 |
56.6 mm |
49.0 mm |
Diagonal |
Ø 280.0 mm |
0.40 kg |

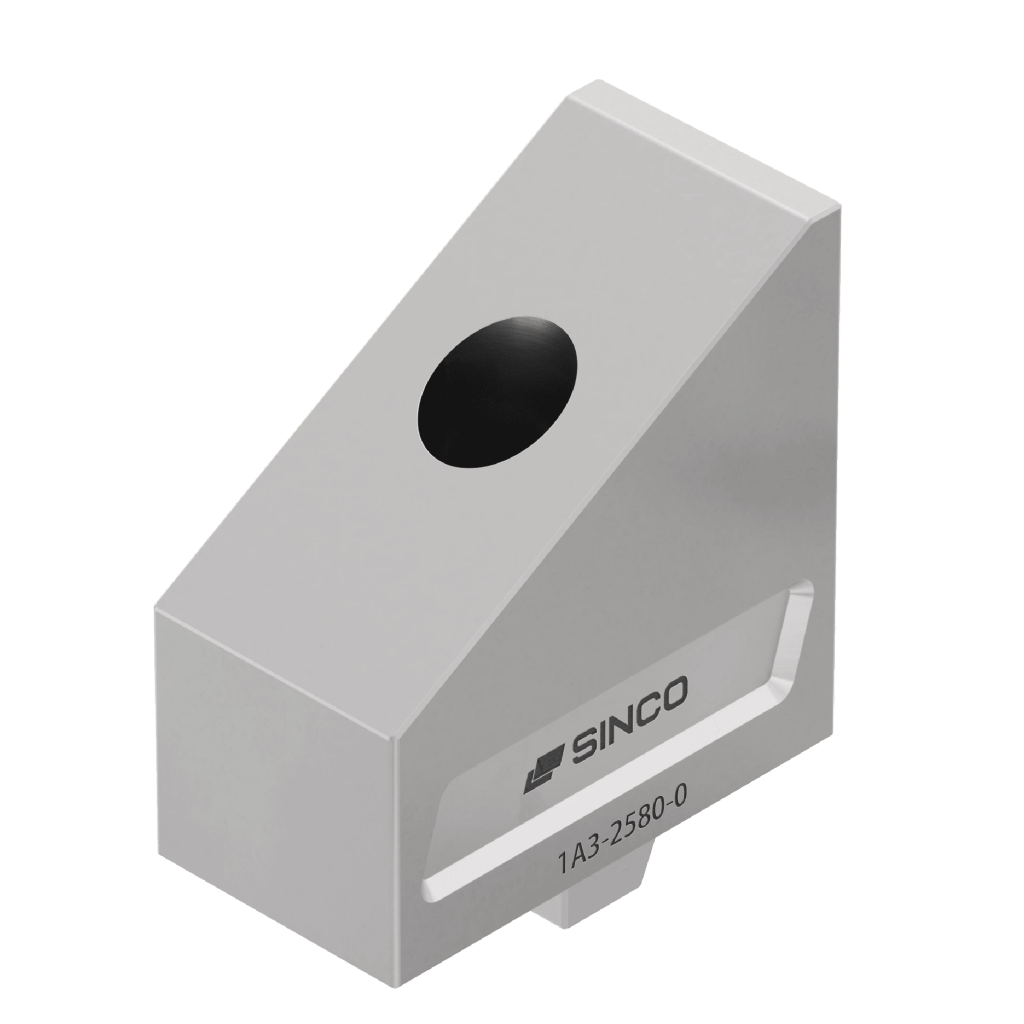

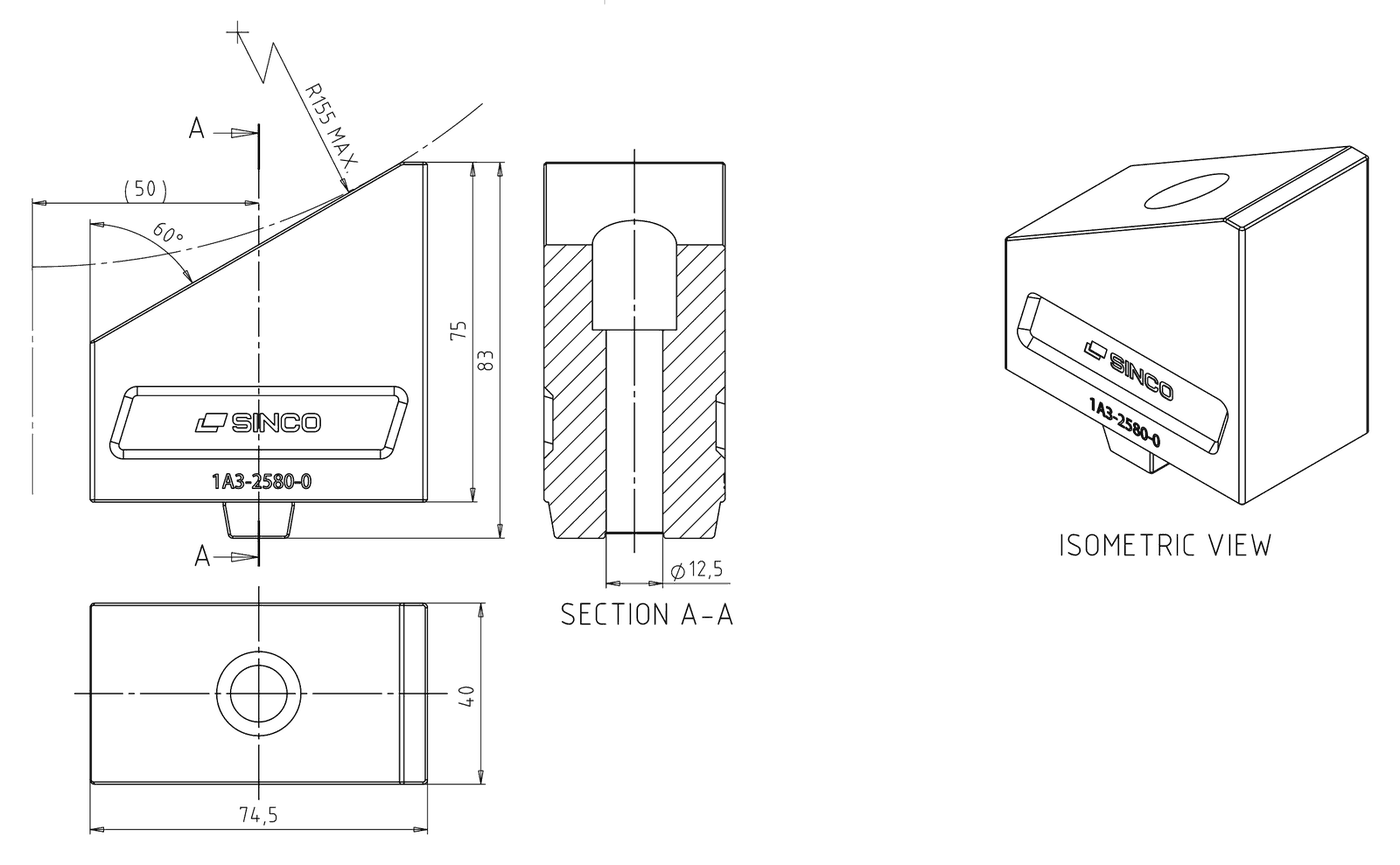

MultiZero Prismatic Support V W40 L75 120
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | Support side length (l) | Width (w) | Support position (p) | Max. workpiece diameter | Weight (kg) |
|---|---|---|---|---|---|
|
1A3-2580-0 |
86.0 mm |
74.5 mm |
Diagonal |
Ø 310.0 mm |
0.62 kg |

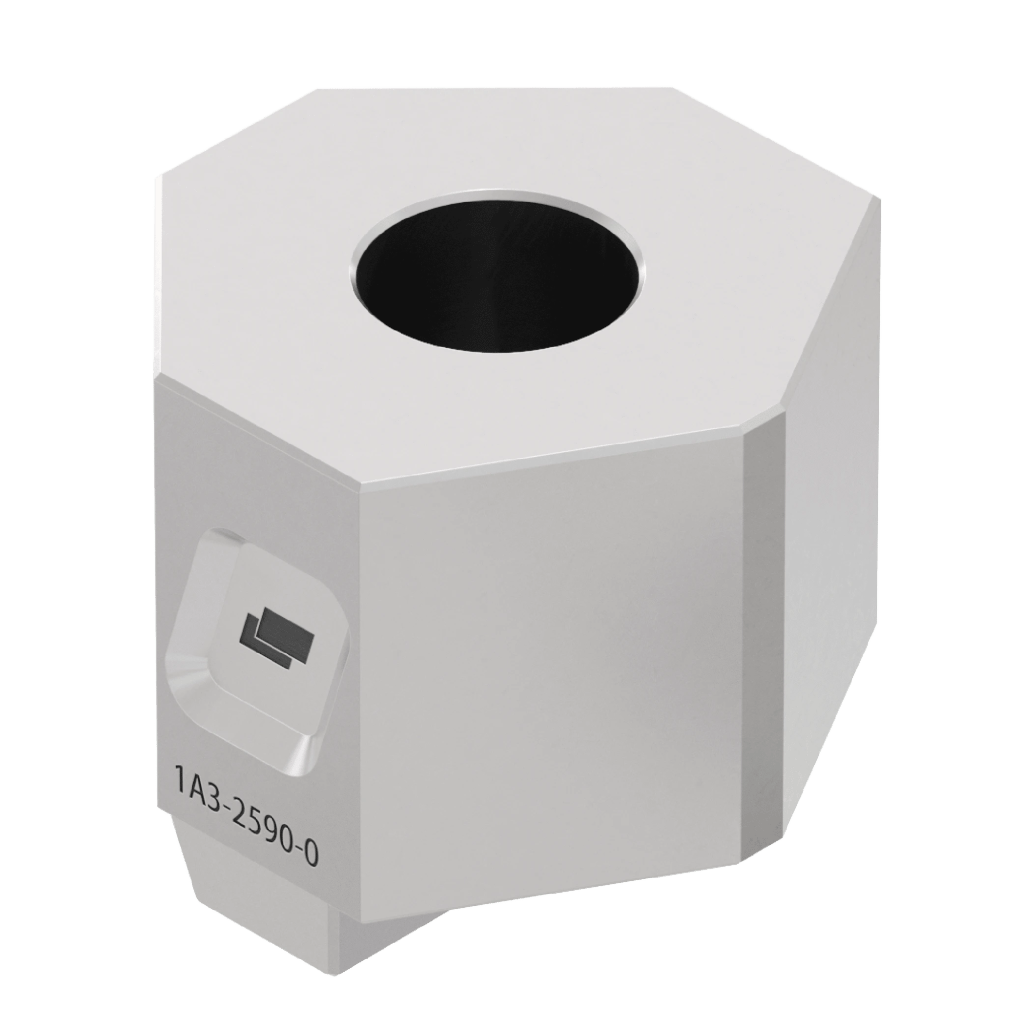

MultiZero Prismatic Support H W50 H35
MultiZero Prismatic Supports stabilize round workpieces during machining and prevent vibration with upper, side, or diagonal support option.
| Product no. | support sides (s) | Width (w) | Support position (p) | Weight (kg) |
|---|---|---|---|---|
|
1A3-2590-0 |
7x |
50.0 mm |
Side |
0.36 kg |
