MultiZero Riser Nipples
The MultiZero Riser Nipple is a positioning element installed underneath a workpiece for precise alignment on MultiZero Risers. Available in various sizes, it features a positioning section that fits into a premachined H hole in the workpiece and is securely fixed with an M12 screw, ensuring accurate and stable placement.

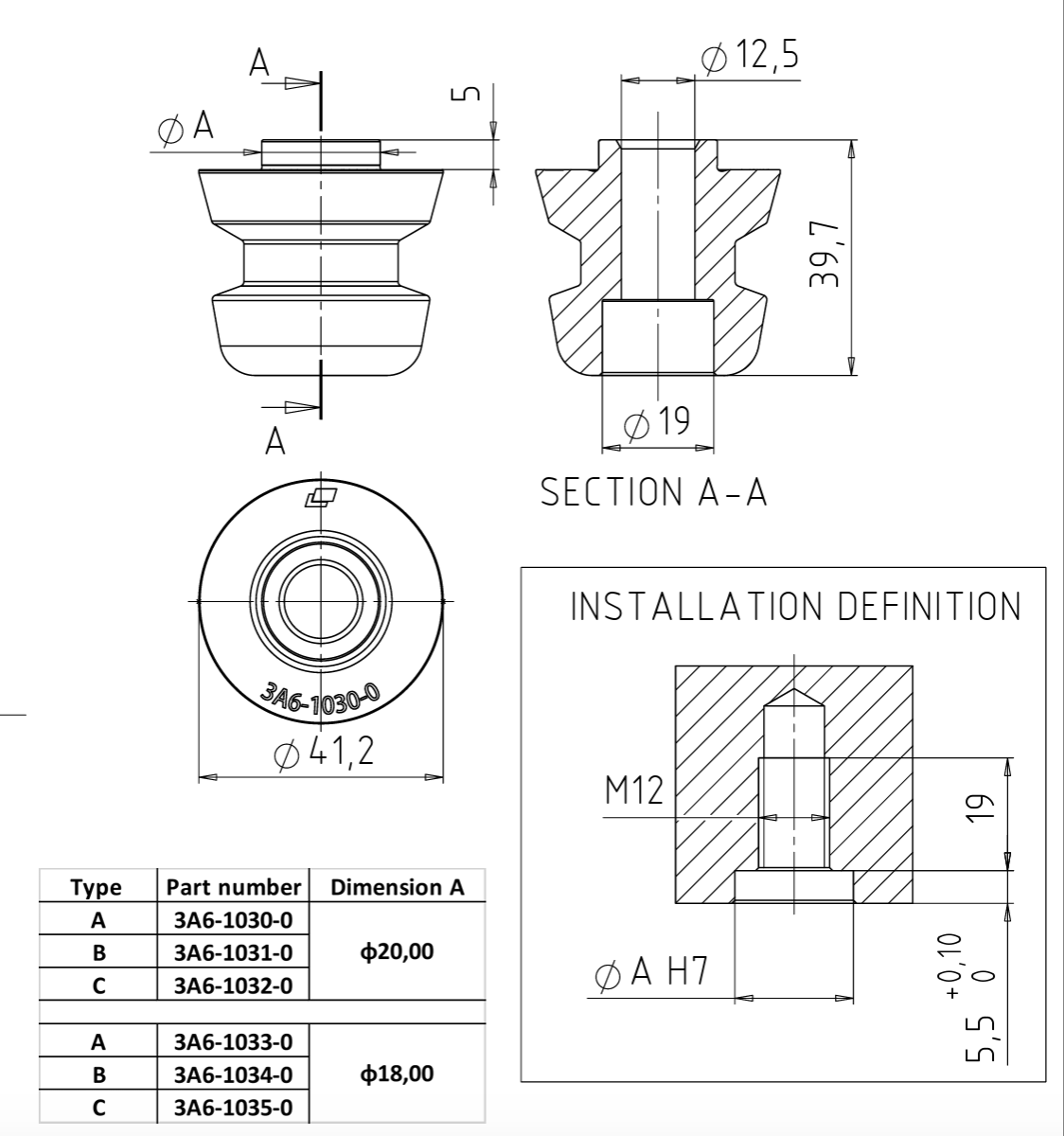

MultiZero Riser Nipple Type A
The primary reference nipple for initial alignment and orientation. It ensures maximum positioning accuracy and must be installed in a fixed clamping point.
| Product | Product no. | Ø (A) | Ø (B) | Mounting bolt | Weight (kg) |
|---|---|---|---|---|---|
|
MultiZero Riser Nipple Type A D25 |
3A6-1030-1 |
25.0 mm |
41.2 mm |
M12 |
0.20 kg |
MultiZero Riser Nipple Type B
A support nipple used in combination with Type A to stabilize the workpiece or pallet. It helps maintain alignment without constraining rotational movement.
| Product | Product no. | Ø (A) | Ø (B) | Mounting bolt | Weight (kg) |
|---|---|---|---|---|---|
|
MultiZero Riser Nipple Type B D25 |
3A6-1031-0 |
25.0 mm |
40.7 mm |
M12 |
0.20 kg |
MultiZero Riser Nipple Type C
A floating nipple that compensates for thermal or mechanical expansion. It must be placed at the clamping point farthest from Type A and allows a ±5° deviation in pre-orientation.
| Product | Product no. | Ø (A) | Ø (B) | Mounting bolt | Weight (kg) |
|---|---|---|---|---|---|
|
MultiZero Riser Nipple Type C D25 |
3A6-1032-0 |
25.0 mm |
41.2 mm |
M12 |
0.20 kg |
MultiZero Riser Nipples enable precise, repeatable positioning within the MultiZero system. Available in Types A, B, and C, each serves a specific role in the clamping setup:
Type A – Main reference nipple for precise alignment; installed at a fixed clamping point.
Type B – Support nipple that stabilizes the setup without restricting rotation.
Type C – Floating nipple for expansion compensation; placed farthest from Type A with ±5° pre-orientation tolerance.
