MultiZero Riser Pallets

MultiZero Riser Pallets are compact, round versions of standard MultiZero pallets designed for mounting on MultiZero Riser units. Workpieces can be clamped directly on the pallets or secured using additional MultiZero workholding components such as vises, clamps, or rails. They can be used individually for smaller parts or combined across multiple risers on a MultiZero Base Plate to provide a flexible clamping solution for larger workpieces.

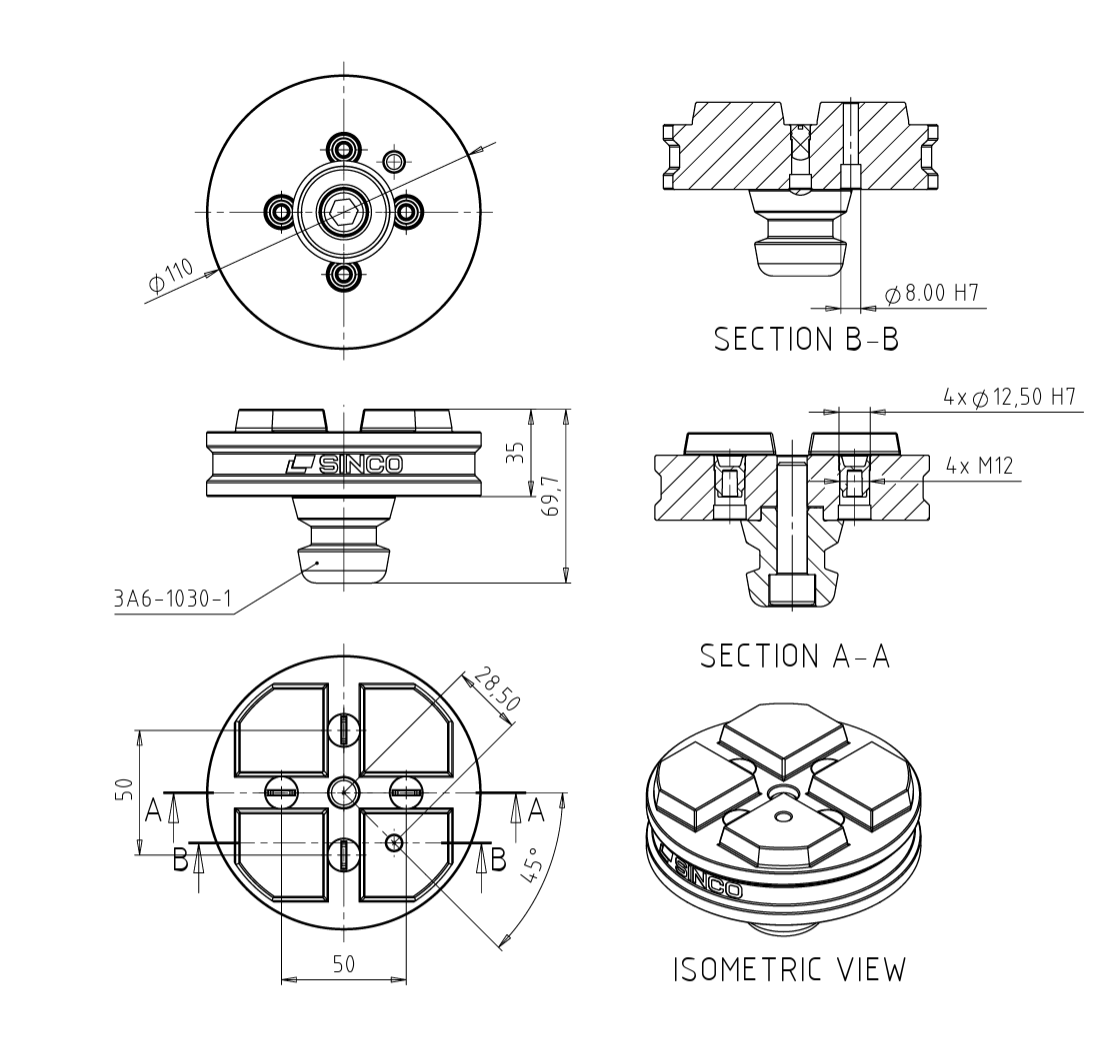

MultiZero Riser Pallet

MultiZero Riser Pallet is a compact, round pallet that transfers the MultiZero raster onto Riser units for flexible workholding mounting.

Product Product no. Ø (A) Height (mm) Zero points Thread holes M12 Weight (kg)
MultiZero Riser Pallet D110
5B2-2565-0
110.0 mm
35.0 mm
1x
4x
2.30 kg

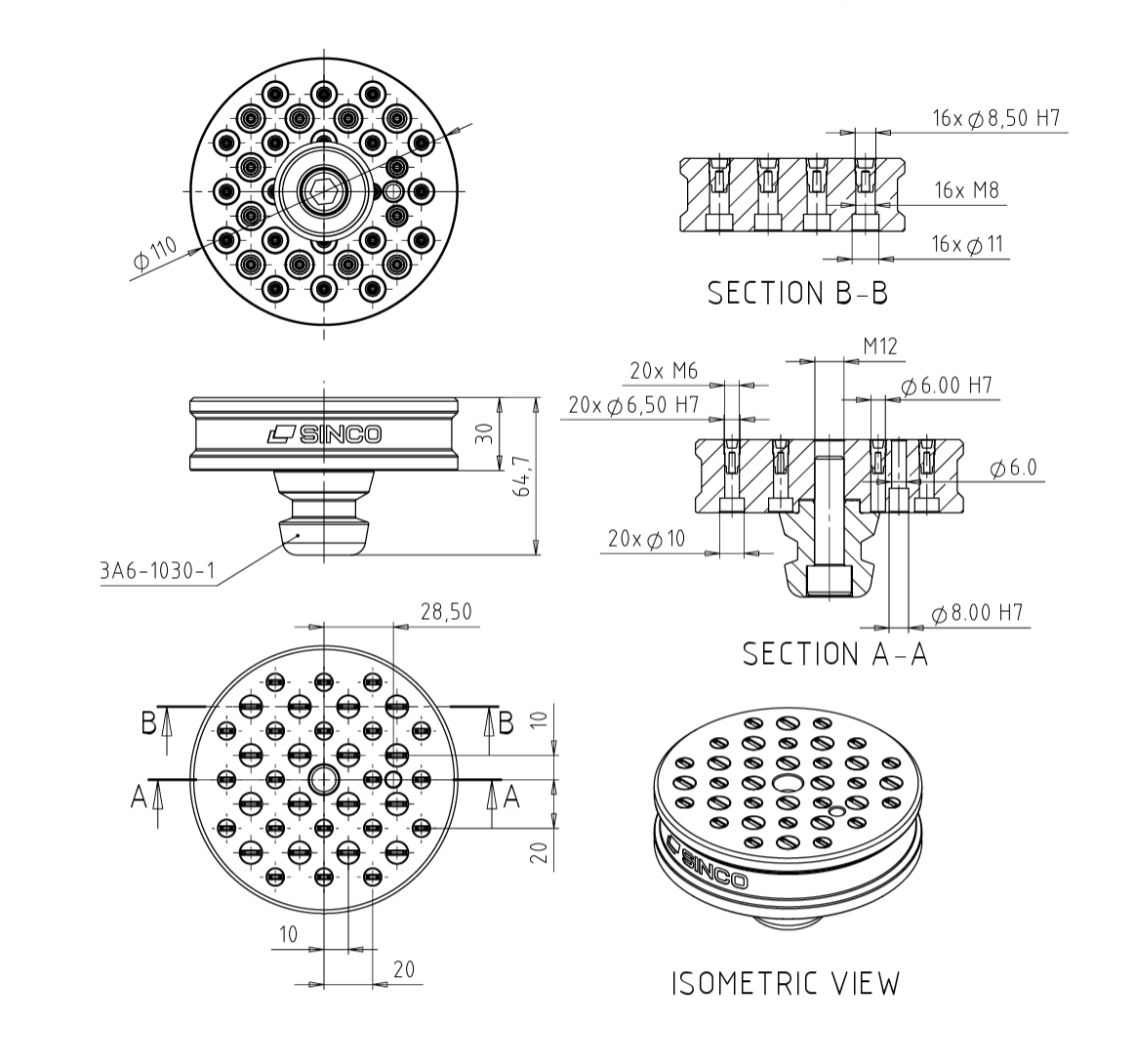

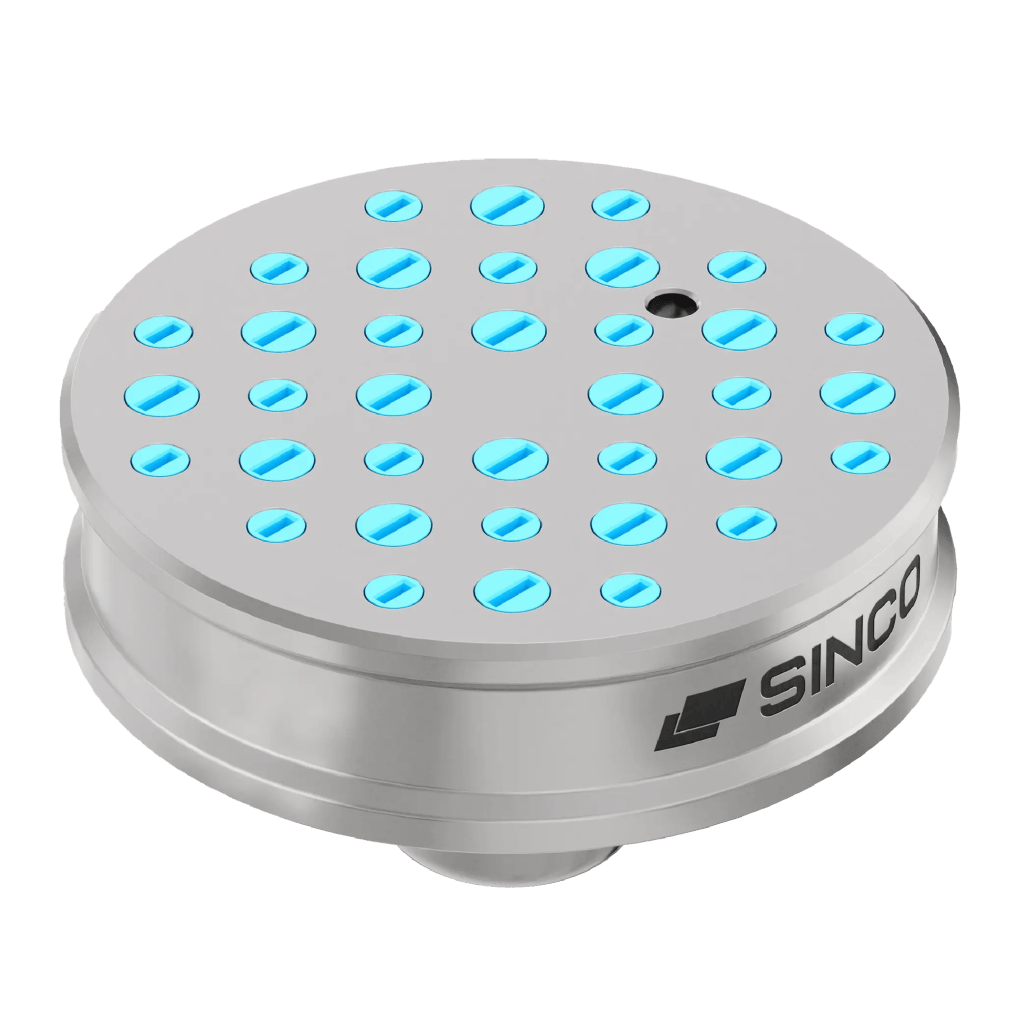

MultiZero Riser Fix Pallet

MultiZero Riser Fix Pallet is a compact, pallet with array of M8 and M6 thread holes, for direct clamping of small parts on a MultiZero Riser.

Product Product no. Ø (A) Height (mm) Thread holes M8 Thread holes M6 Weight (kg)
MultiZero Riser Fix Pallet D110
5B2-2525-0
110.0 mm
30.0 mm
16x
20x
1.95 kg
