MultiZero Riser W80 Extensions
MultiZero Riser W80 Extensions are designed to provide additional height during 5-axis machining operations, allowing greater flexibility and collision prevention. By raising the workpiece as needed, these extensions help optimize tool access and prevent interference. MultiZero Riser W80 Extensions can also be used to clamp the workpieces which underside isn’t perfectly flat, and by that enable clamping of one workpiece on different clamping / point of contact heights.
MultiZero Riser W80 Extension
MultiZero Riser W80 Extensions provide added height for 5-axis machining, improving tool access and preventing collisions.
| Product | Product no. | Height (h) | Clamping force (kN) | Ø (A) | Ø (B) | Weight (kg) |
|---|---|---|---|---|---|---|
|

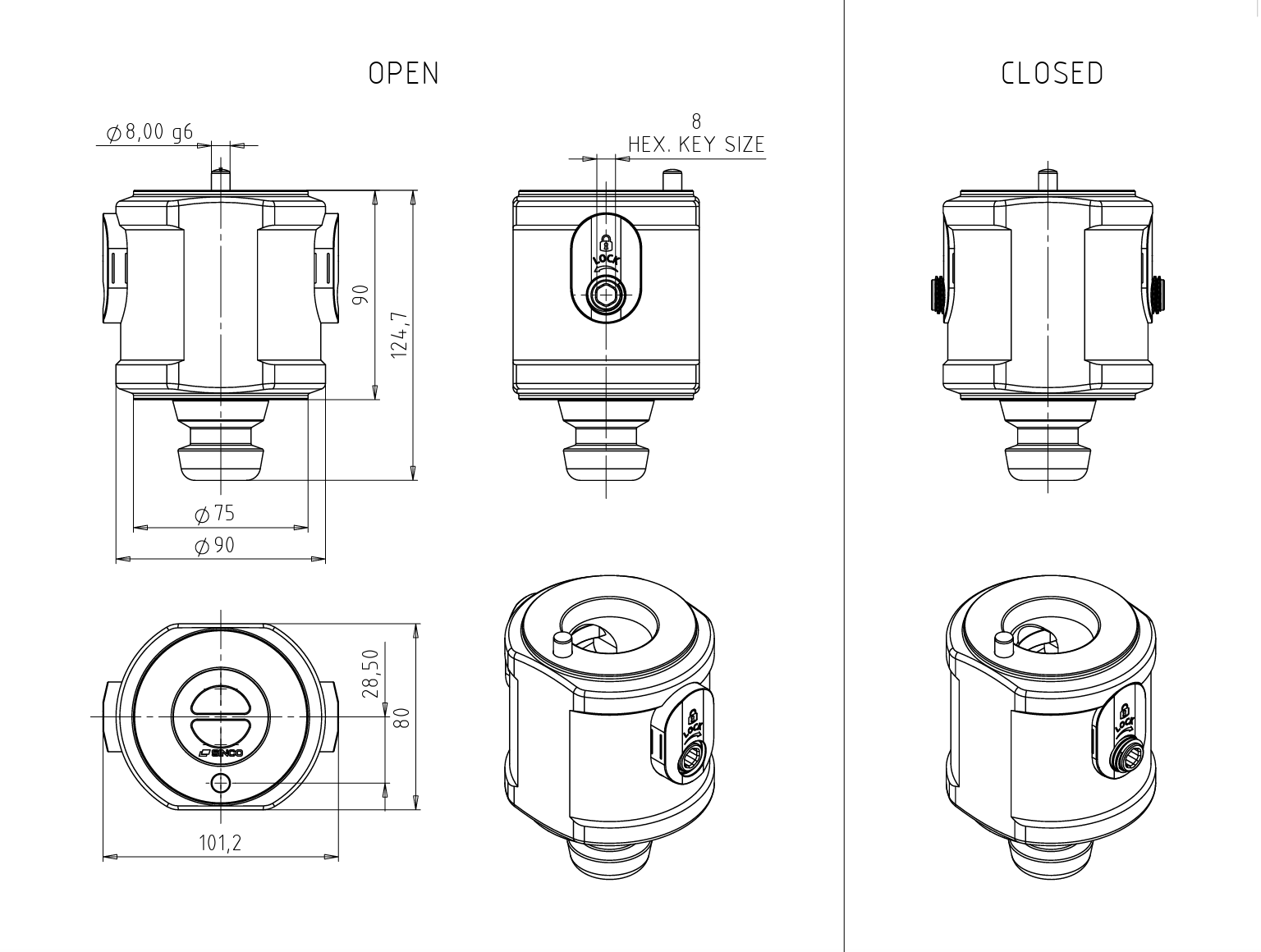

MultiZero Riser W80 Extension H90 |
3B6-1045-0 |
90.0 mm |
25 kN |
90.0 mm |
75.0 mm |
4.16 kg |
| Product | Product no. | Height (h) | Clamping force (kN) | Ø (A) | Ø (B) | Weight (kg) |
|---|---|---|---|---|---|---|
|

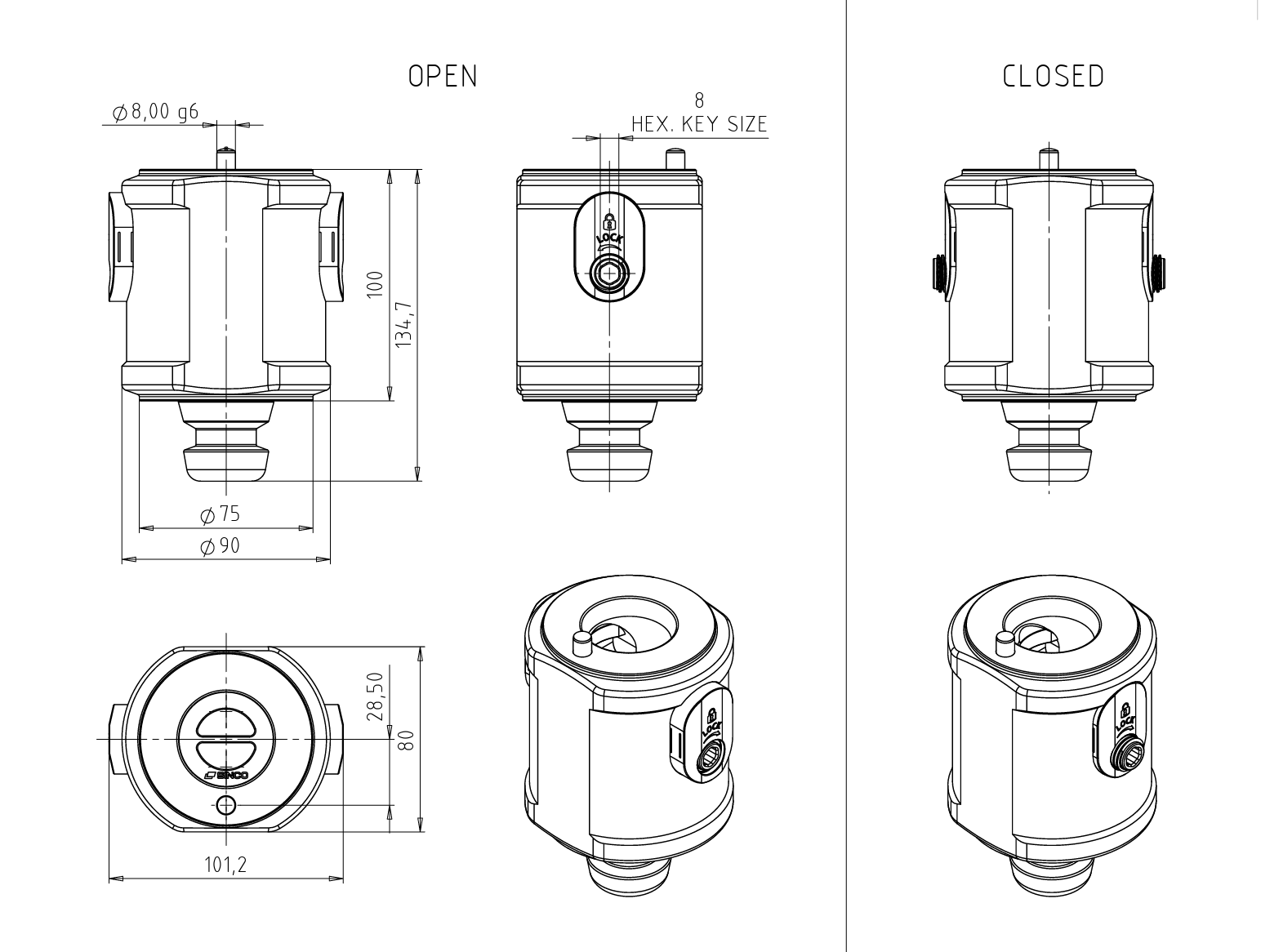

MultiZero Riser W80 Extension H100 |
3B6-1048-0 |
100.0 mm |
25 kN |
90.0 mm |
75.0 mm |
4.59 kg |
| Product | Product no. | Height (h) | Clamping force (kN) | Ø (A) | Ø (B) | Weight (kg) |
|---|---|---|---|---|---|---|
|
MultiZero Riser W80 Extension H120 |
3B6-1040-0 |
120.0 mm |
25 kN |
90.0 mm |
75.0 mm |
5.20 kg |
