MultiZero Single Stopper
The MultiZero Single Stopper is a fixed element for the MultiZero Modular Vise line, providing a stable point for workpieces to be pushed against with the MultiZero Vise Single or Double Wedge. It adjusts in 50mm increments, similar to the MultiZero Rail, for flexible and precise clamping setups. Clamping jaws on MultiZero Single Stopper can be changed and replaces in the same way as on the other MultiZero Modular Vise workholding elements.
MultiZero Single Stopper
The MultiZero Single Stopper provides a stable point for workpieces to be pushed against in the MultiZero Modular Vise system.
| Product | Product no. | Jaw height (h) | Stopper height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|---|
|

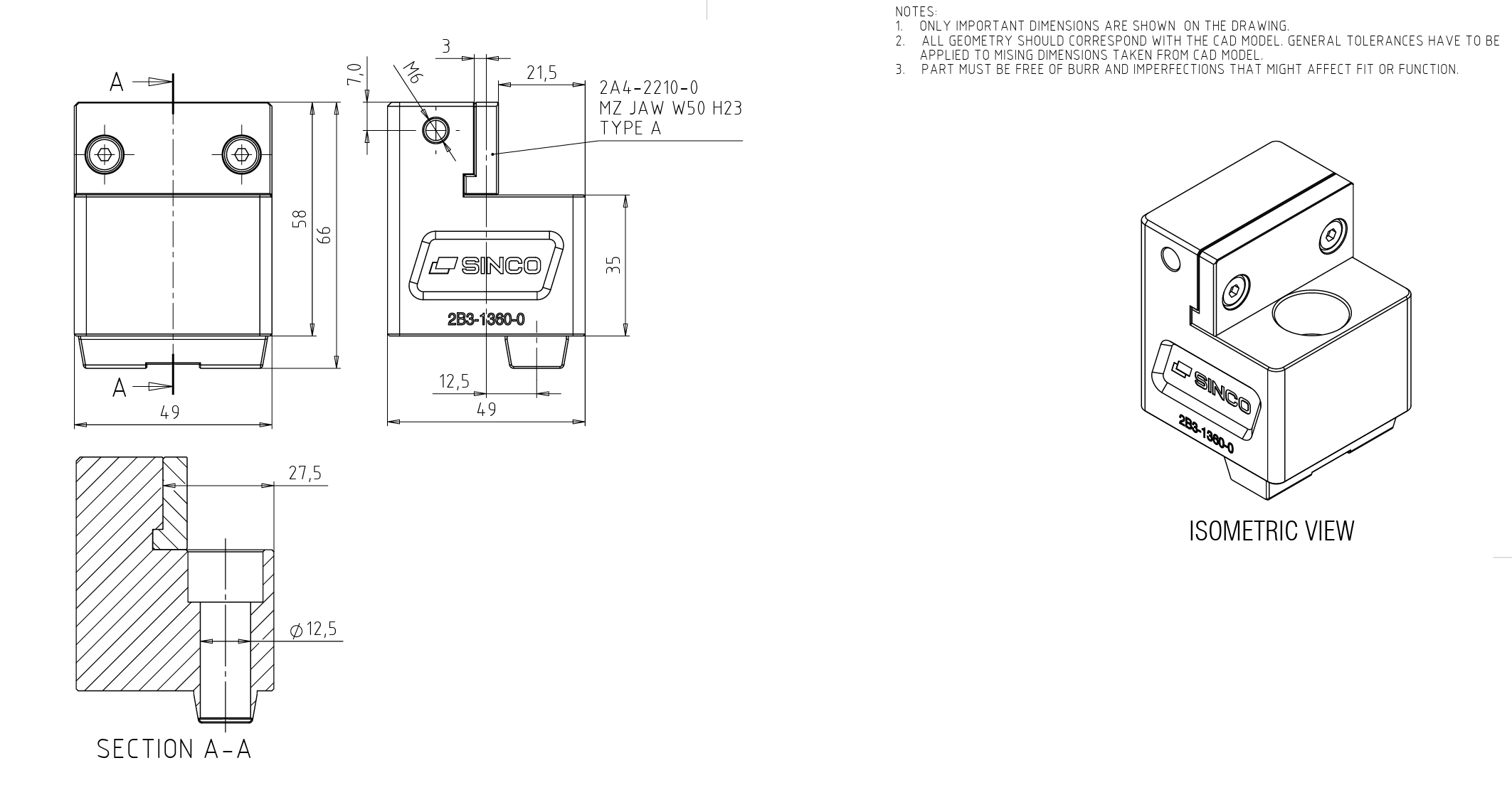

MultiZero Single Stopper W50 L50 H23 |
2B3-1360-0 |
23.0 mm |
58.0 mm |
50.0 mm |
50.0 mm |
0.85 kg |
| Product | Product no. | Jaw height (h) | Stopper height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|---|
|

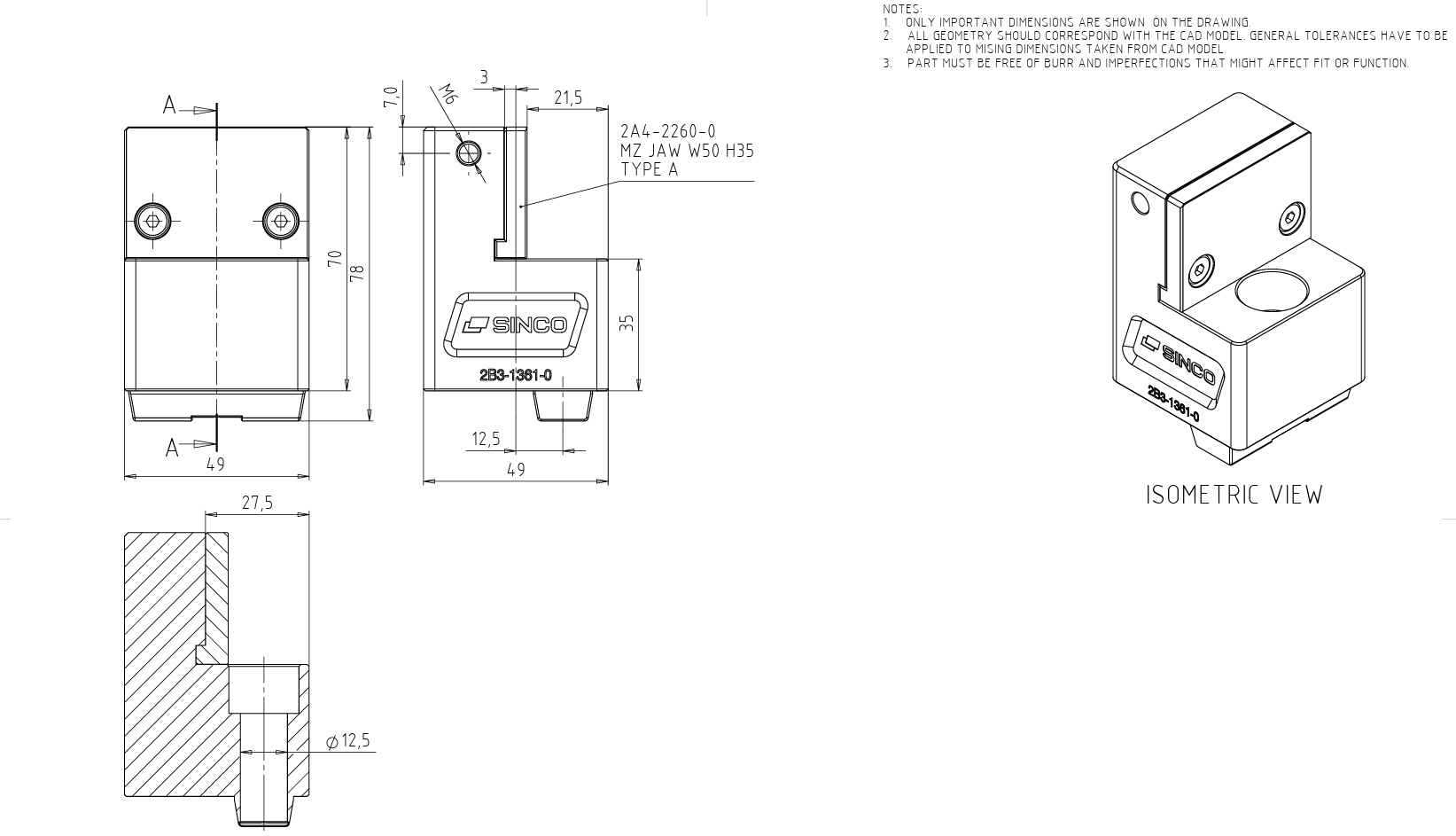

MultiZero Single Stopper W50 L50 H35 |
2B3-1361-0 |
35.0 mm |
70.0 mm |
50.0 mm |
50.0 mm |
0.98 kg |
| Product | Product no. | Jaw height (h) | Stopper height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|---|
|

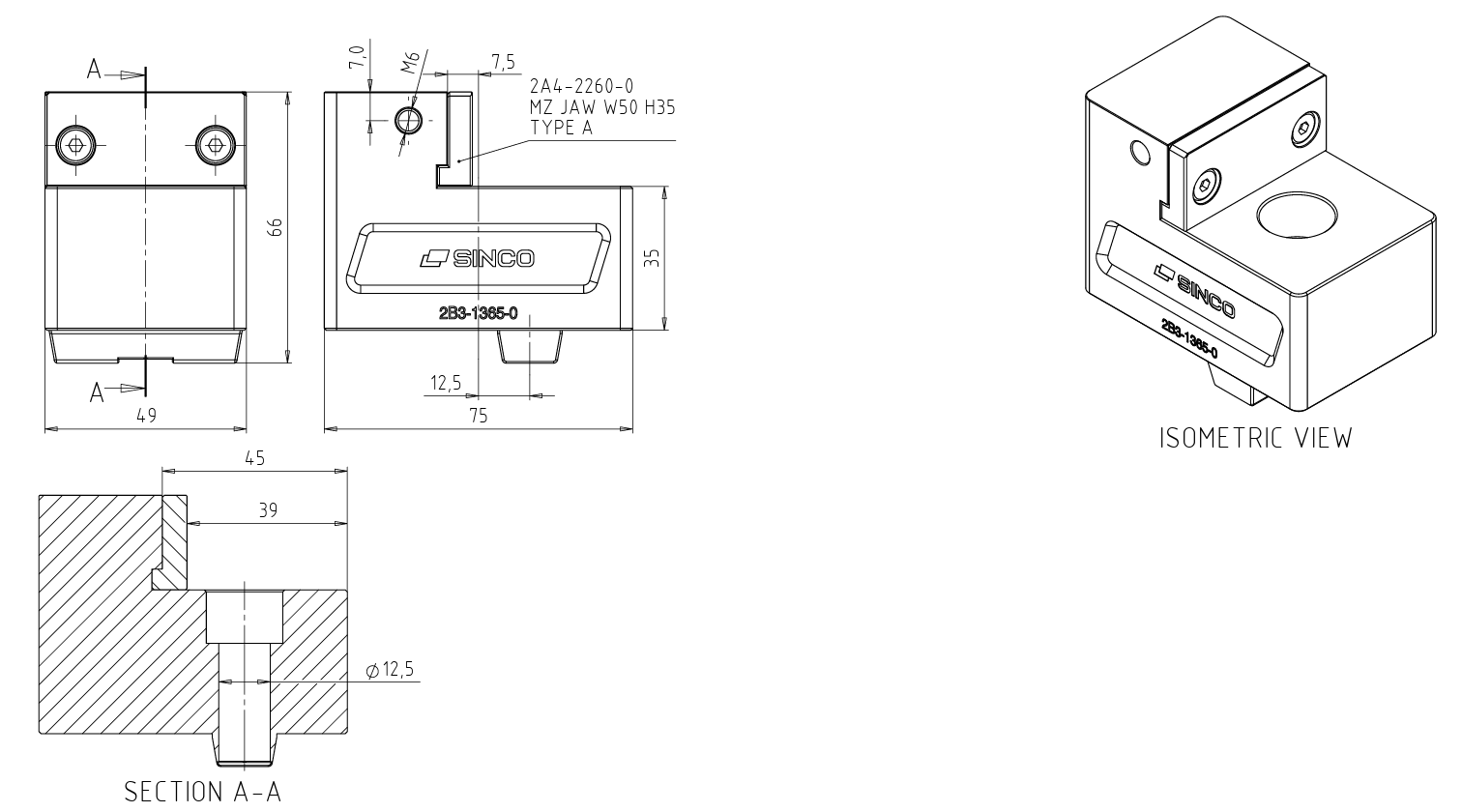

MultiZero Single Stopper W50 L75 H23 |
2B3-1365-0 |
23.0 mm |
58.0 mm |
75.0 mm |
50.0 mm |
0.98 kg |
| Product | Product no. | Jaw height (h) | Stopper height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|---|
|

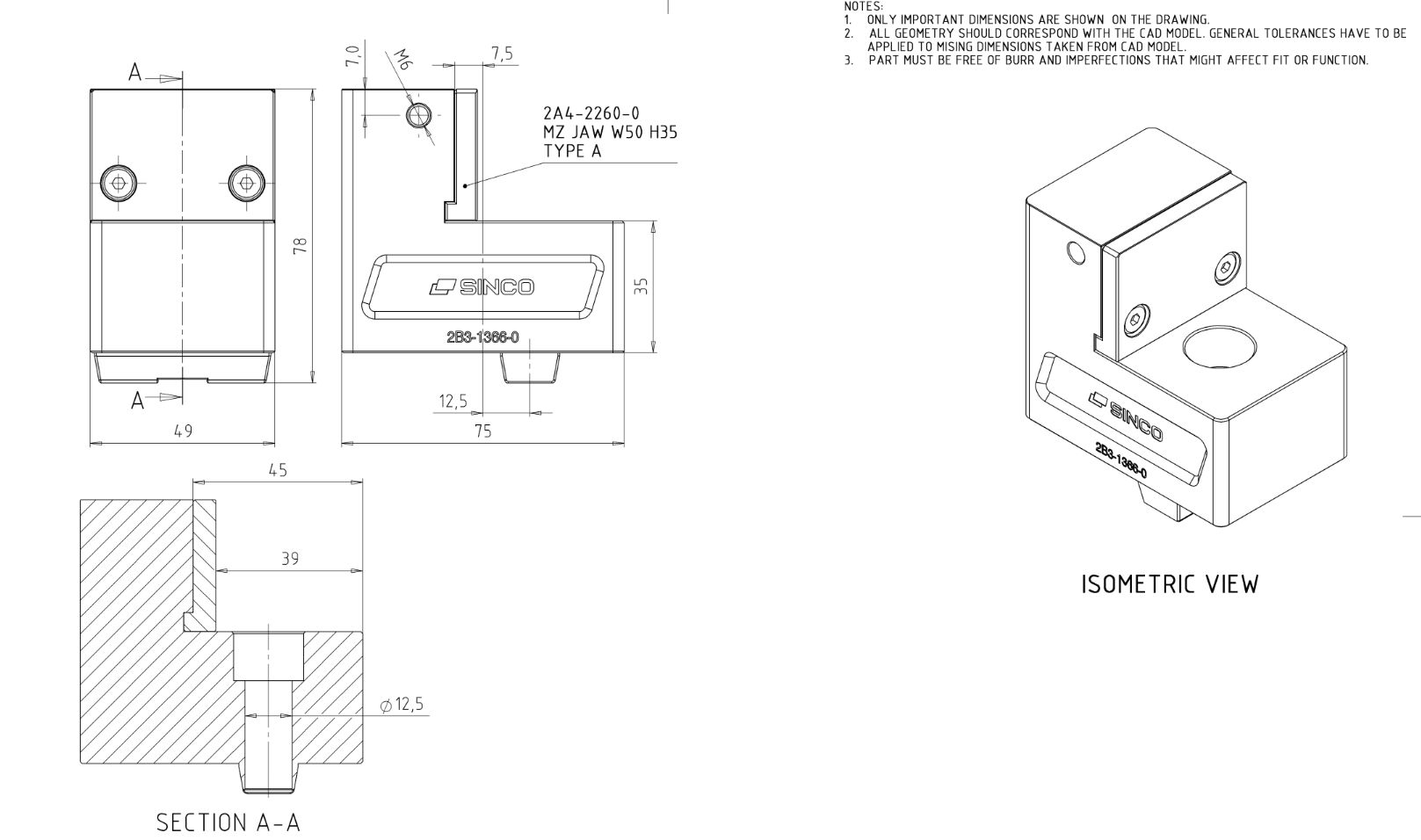

MultiZero Single Stopper W50 L75 H35 |
2B3-1366-0 |
35.0 mm |
70.0 mm |
75.0 mm |
50.0 mm |
0.98 kg |
| Product | Product no. | Jaw height (h) | Stopper height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|---|
|
MultiZero Single Stopper W50 L100 H23 |
2B3-1340-0 |
23.0 mm |
58.0 mm |
100.0 mm |
50.0 mm |
0.98 kg |
| Product | Product no. | Jaw height (h) | Stopper height (h) | Length (l) | Width (w) | Weight (kg) |
|---|---|---|---|---|---|---|
|

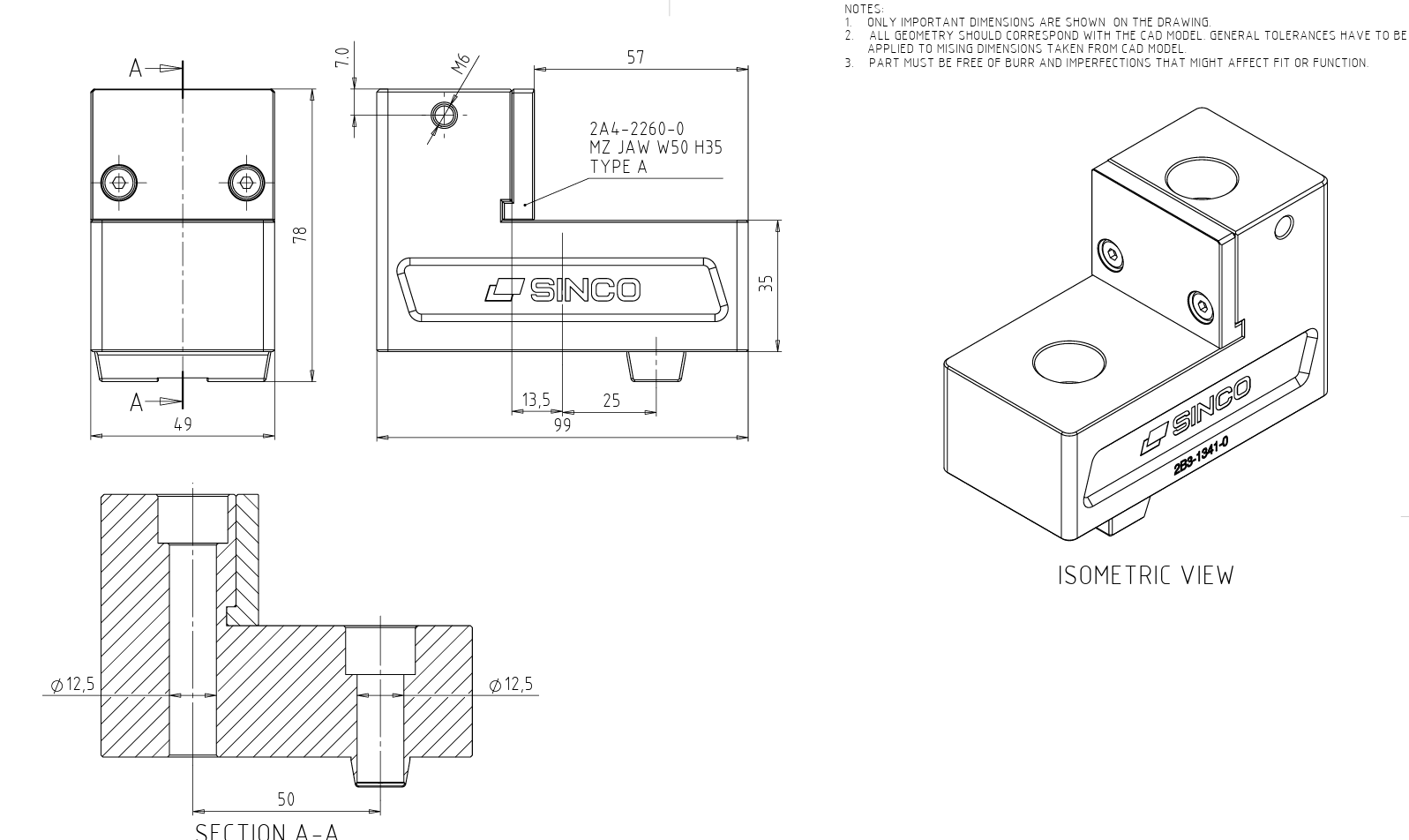

MultiZero Single Stopper W50 L100 H35 |
2B3-1341-0 |
35.0 mm |
70.0 mm |
100.0 mm |
50.0 mm |
1.73 kg |
