MultiZero Spindle Vise

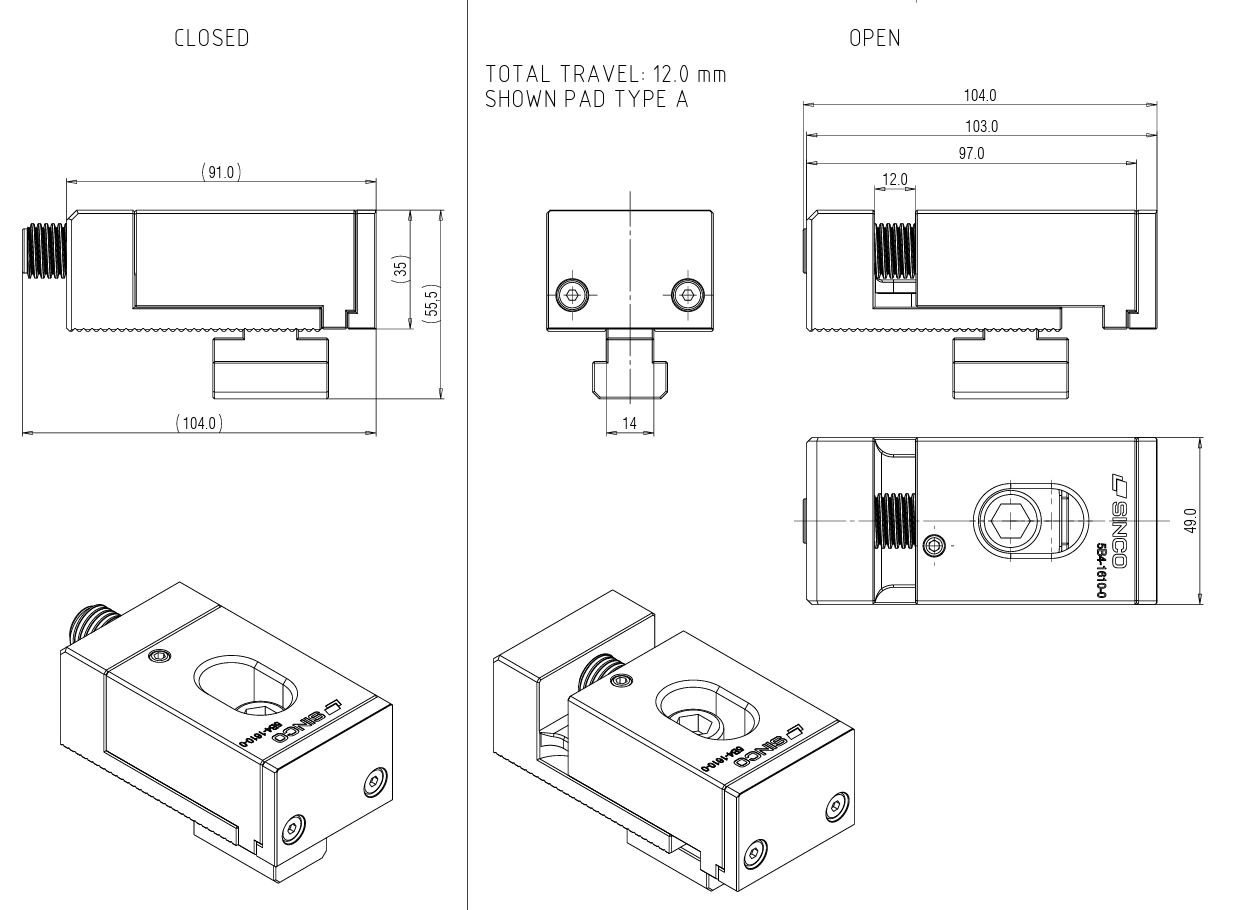

The MultiZero Spindle Vise clamps the workpiece using inline horizontal clamping force, unlike the MultiZero Wedge Vise which applies force in the downward direction. This design enables simple clamping on step jaws (e.g., 3 mm), ensuring maximum accessibility to the workpiece during machining. The vise is mounted on MultiZero Rails, allowing positioning in 2.5 mm increments, while the spindle itself provides an additional 12 mm clamping travel. This combination makes the MultiZero Spindle Vise an ideal solution for flexible and modular clamping setups.

MultiZero Spindle Vise

MultiZero Spindle Vise provides horizontal clamping with extended travel, enabling flexible positioning and maximum workpiece accessibility.

Product Product no. Jaw height (mm) Clamping force (kN) Torque (Nm) Width (w) Weight (kg)
MultiZero Spindle Vise W50 H35
5B4-1610-0
35.0 mm
18 kN
22 Nm
49.0 mm
1.24 kg
