MultiZero Vise Stoppers
The MultiZero Vise Stopper is a key component of the MultiZero Modular Vise system, designed for precise workpiece positioning on the MultiZero Base Plate. Mounted on the MultiZero Rail, it adjusts in 2.5mm increments for optimal alignment and is secured with a MultiZero Single or Double Wedge Vise from the opposite side. Available in two heights, 23mm and 35mm, and with a range of jaw options, it offers flexibility and precision for diverse clamping needs.
MultiZero Vise Single Stopper
MultiZero Vise Single Stopper with a single-sided contact surface, designed for use with MultiZero Single and Spindle Vises.
| Product | Product no. | Jaw height (h) | Width (w) | Length (l) | Weight (kg) |
|---|---|---|---|---|---|
|

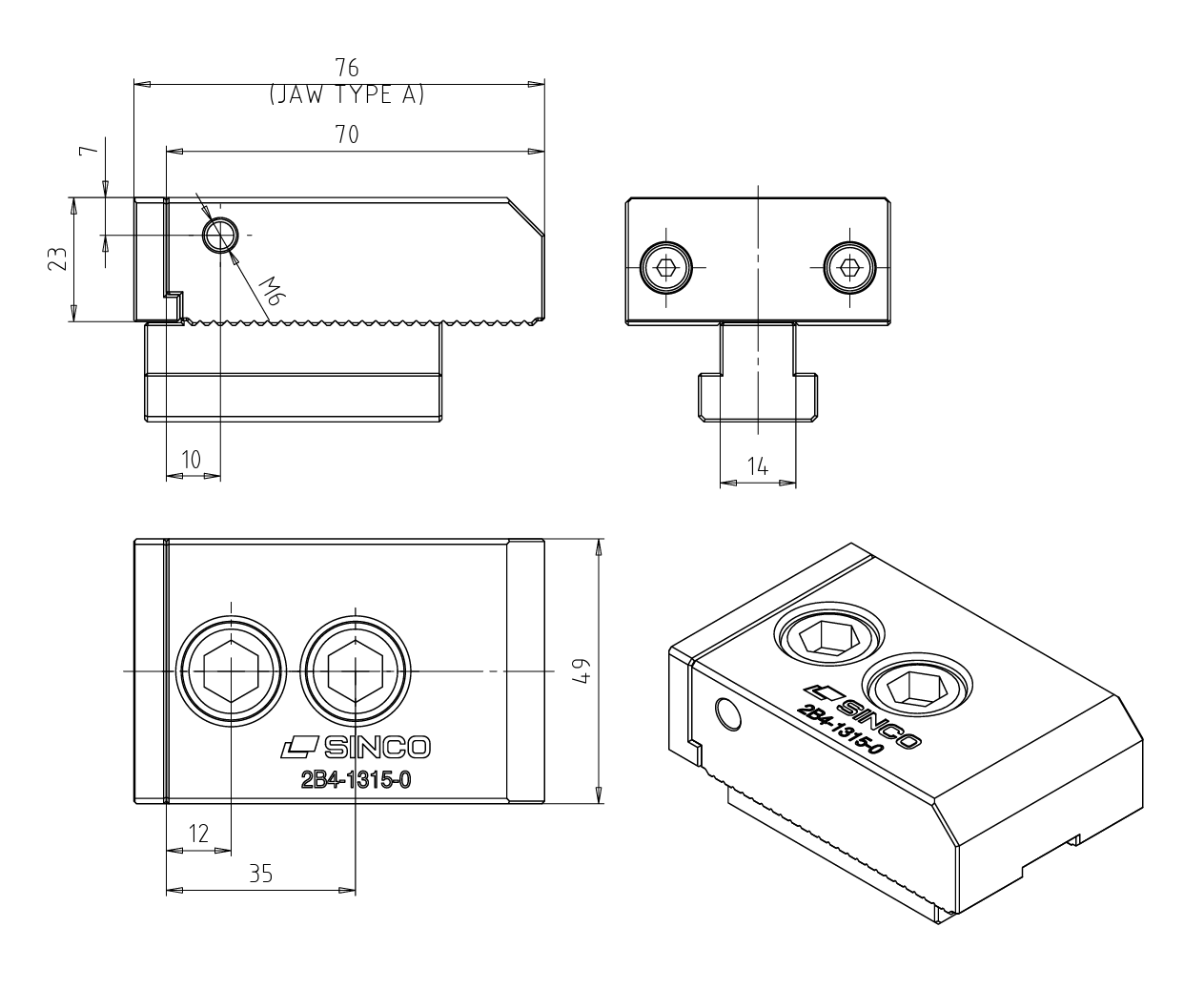

MultiZero Vise Single Stopper W50 H23 |
2B4-1315-0 |
23.0 mm |
49.0 mm |
76.0 mm |
0.77 kg |
| Product | Product no. | Jaw height (h) | Width (w) | Length (l) | Weight (kg) |
|---|---|---|---|---|---|
|

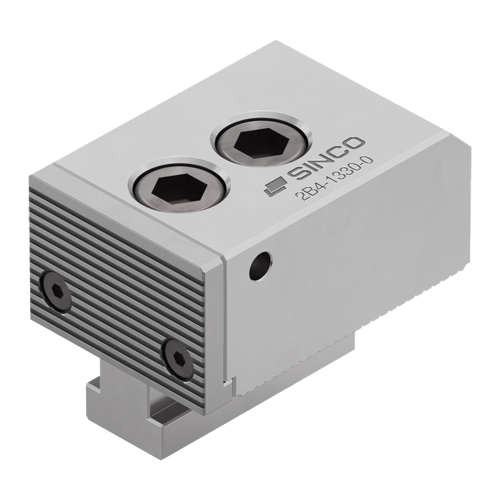

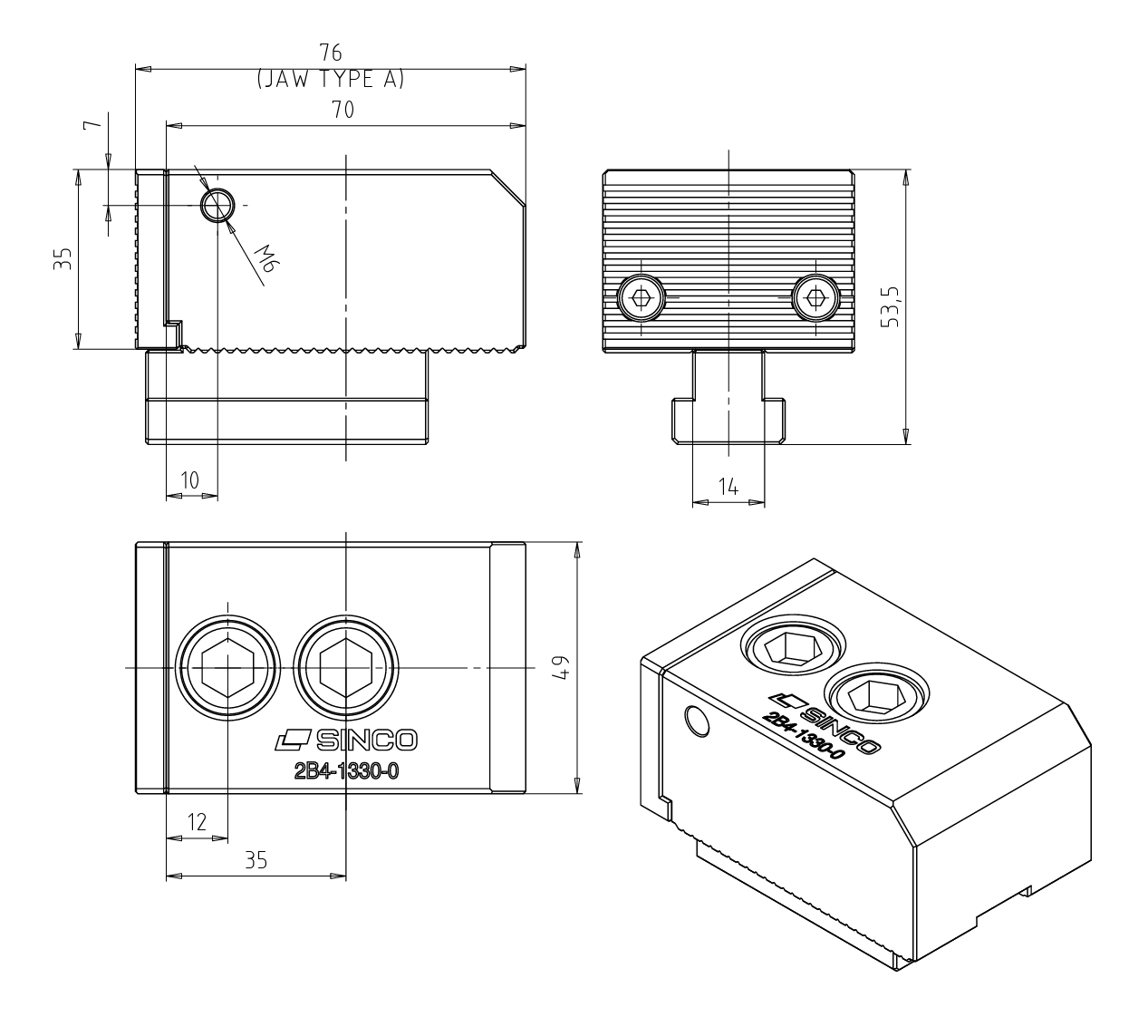

MultiZero Vise Single Stopper W50 H35 |
2B4-1330-0 |
35.0 mm |
49.0 mm |
76.0 mm |
1.12 kg |
MultiZero Vise Double Stopper
MultiZero Vise Double Stopper with double-sided contact surfaces for multi-part clamping with MultiZero Double Vises.
| Product | Product no. | Jaw height (h) | Width (w) | Length (l) | Weight (kg) |
|---|---|---|---|---|---|
|

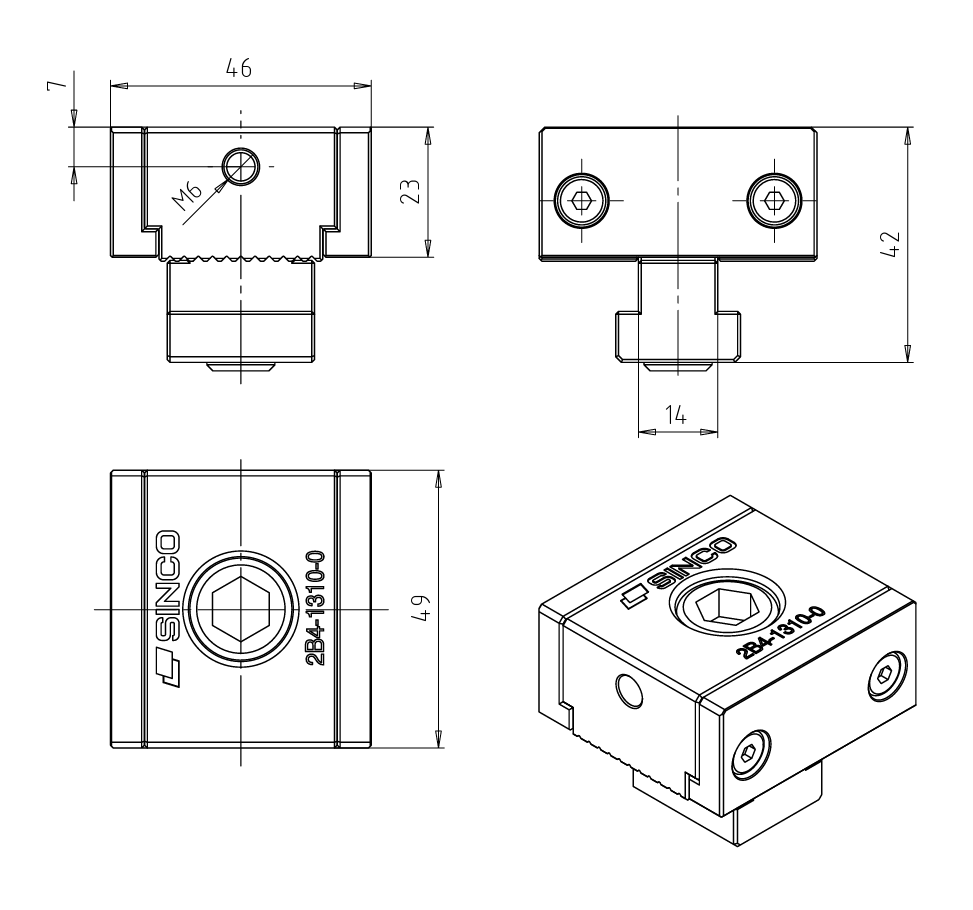

MultiZero Vise Double Stopper W50 H23 |
2B4-1310-0 |
23.0 mm |
49.0 mm |
46.0 mm |
0.45 kg |
| Product | Product no. | Jaw height (h) | Width (w) | Length (l) | Weight (kg) |
|---|---|---|---|---|---|
|

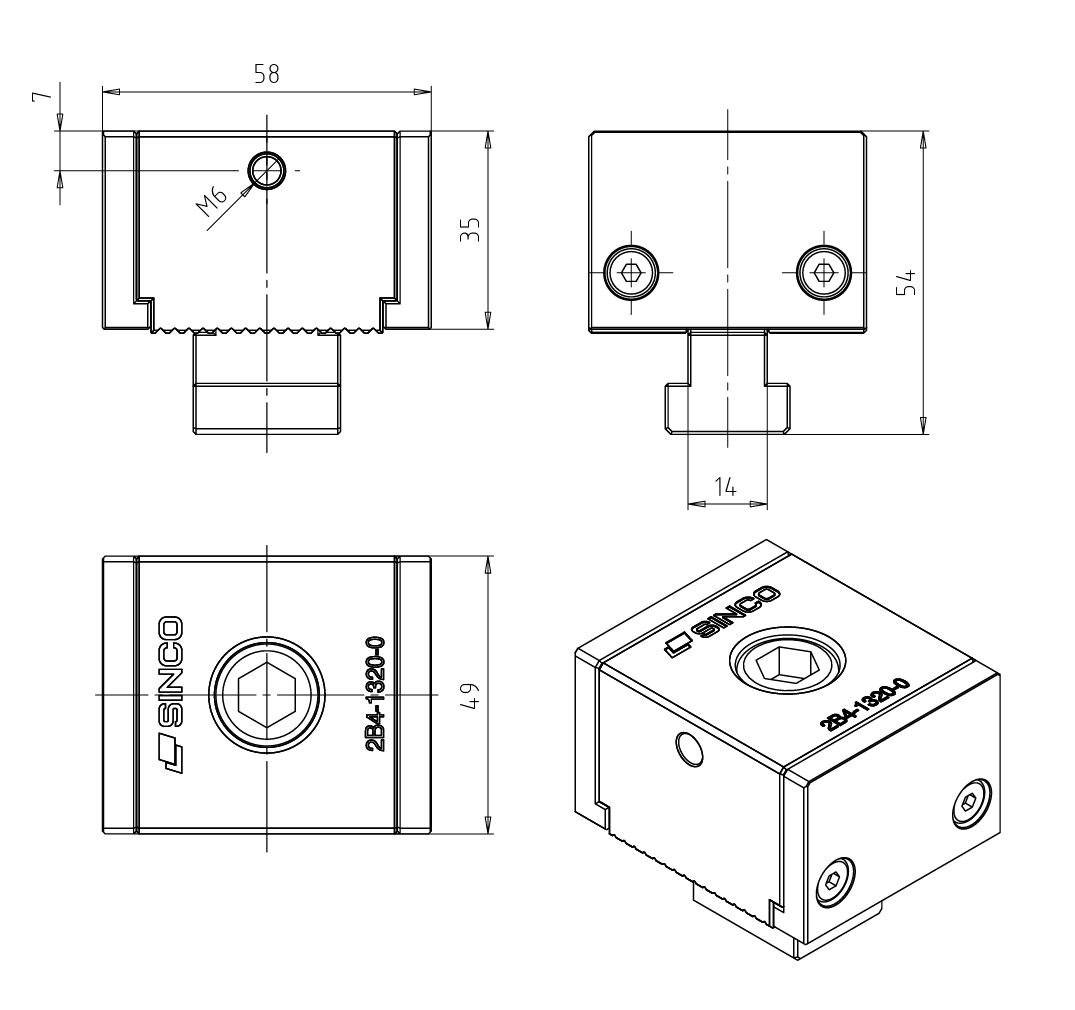

MultiZero Vise Double Stopper W50 H35 |
2B4-1320-0 |
35.0 mm |
49.0 mm |
58.0 mm |
1.34 kg |
