MultiZero Vise Wedge Jaws
The MultiZero Wedge Vise product line offers a versatile range of clamping jaw options to meet diverse machining needs, including rough milling to finishing operations, 3 to 5-axis milling, and clamping of both rectangular and round parts. Clamping jaws are easily interchangeable by simply removing two screws on their surface, providing quick adaptability for various applications.

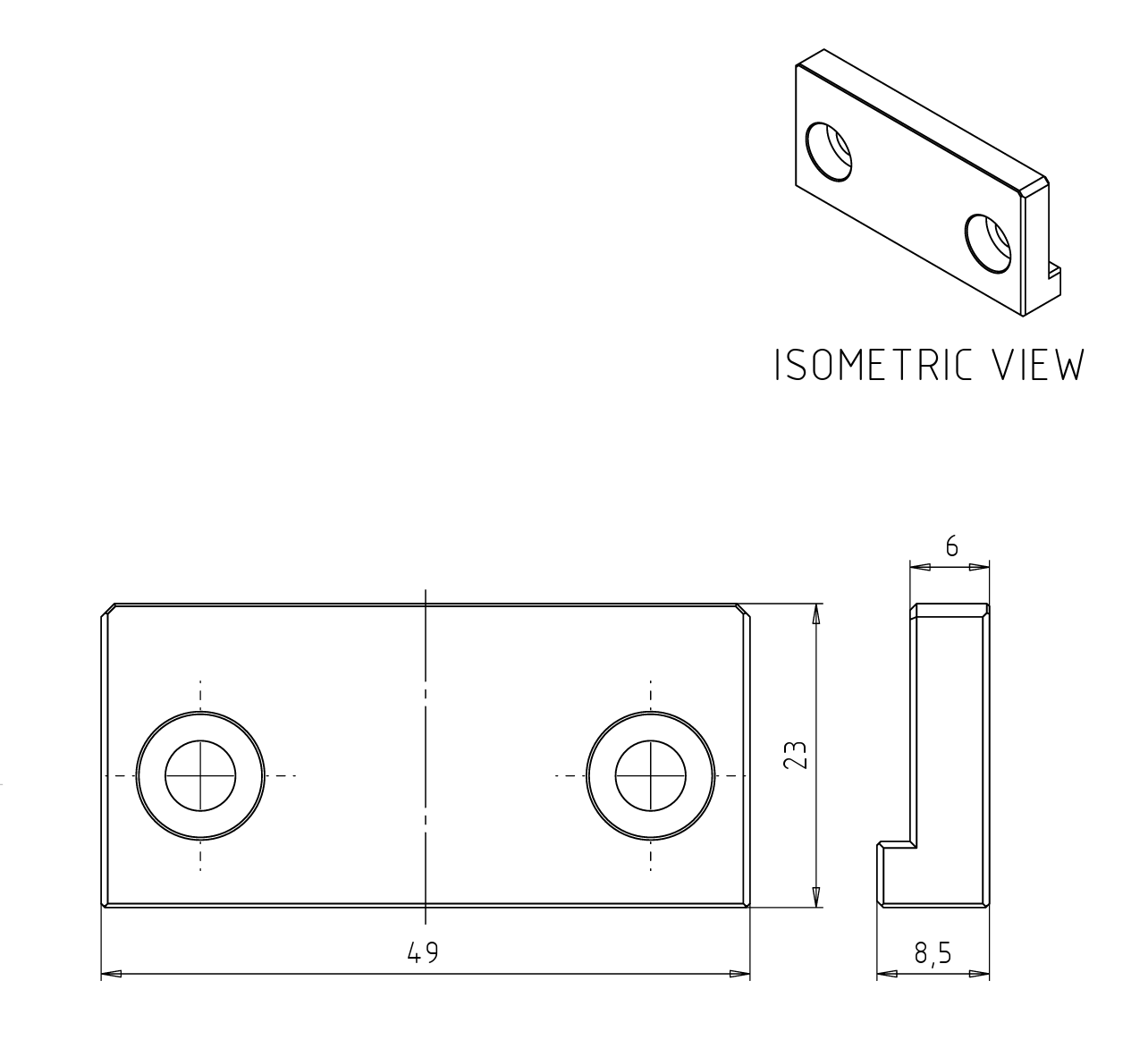

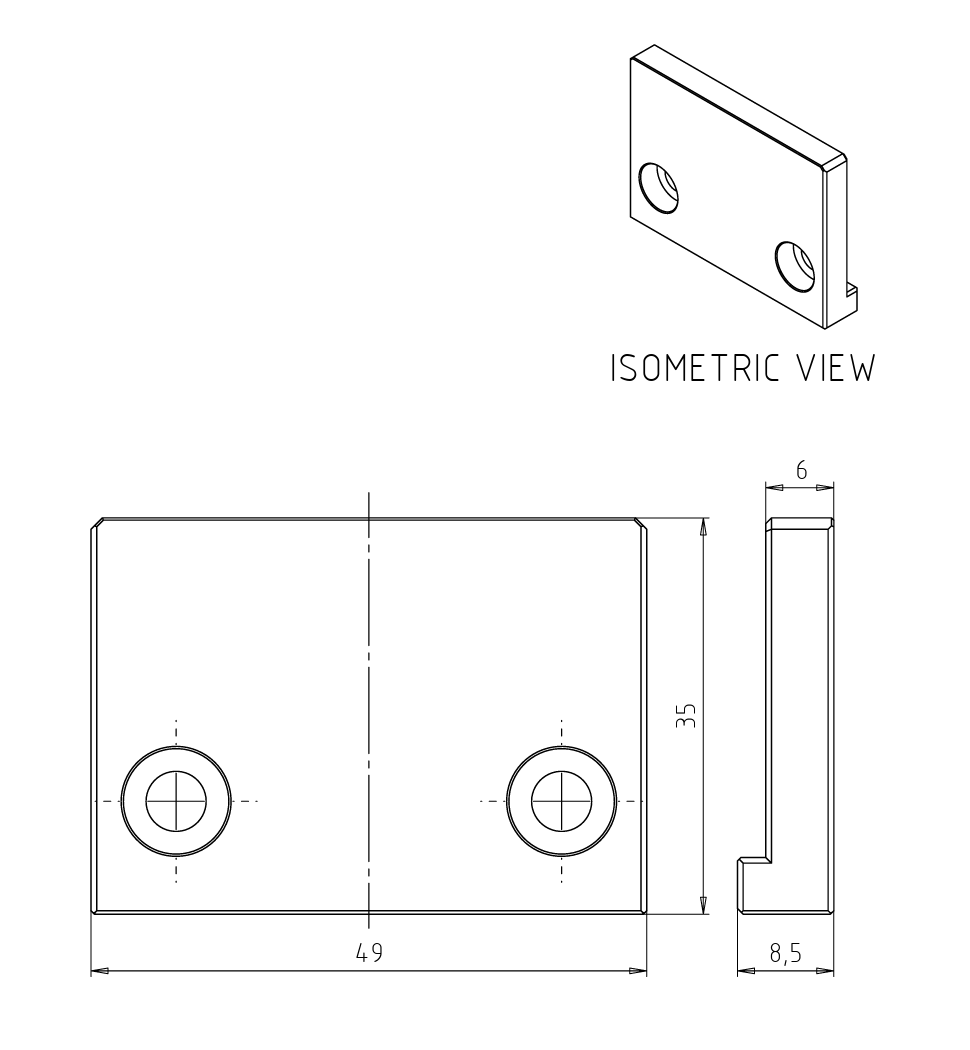

MultiZero Jaw Type A
The MultiZero Jaw Type A is a blank clamping jaw, ideal for finishing operations.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type A |
2A4-2210-0 |
23.0 mm |
50.0 mm |
53 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type A |
2A4-2260-0 |
35.0 mm |
50.0 mm |
80,5 g |

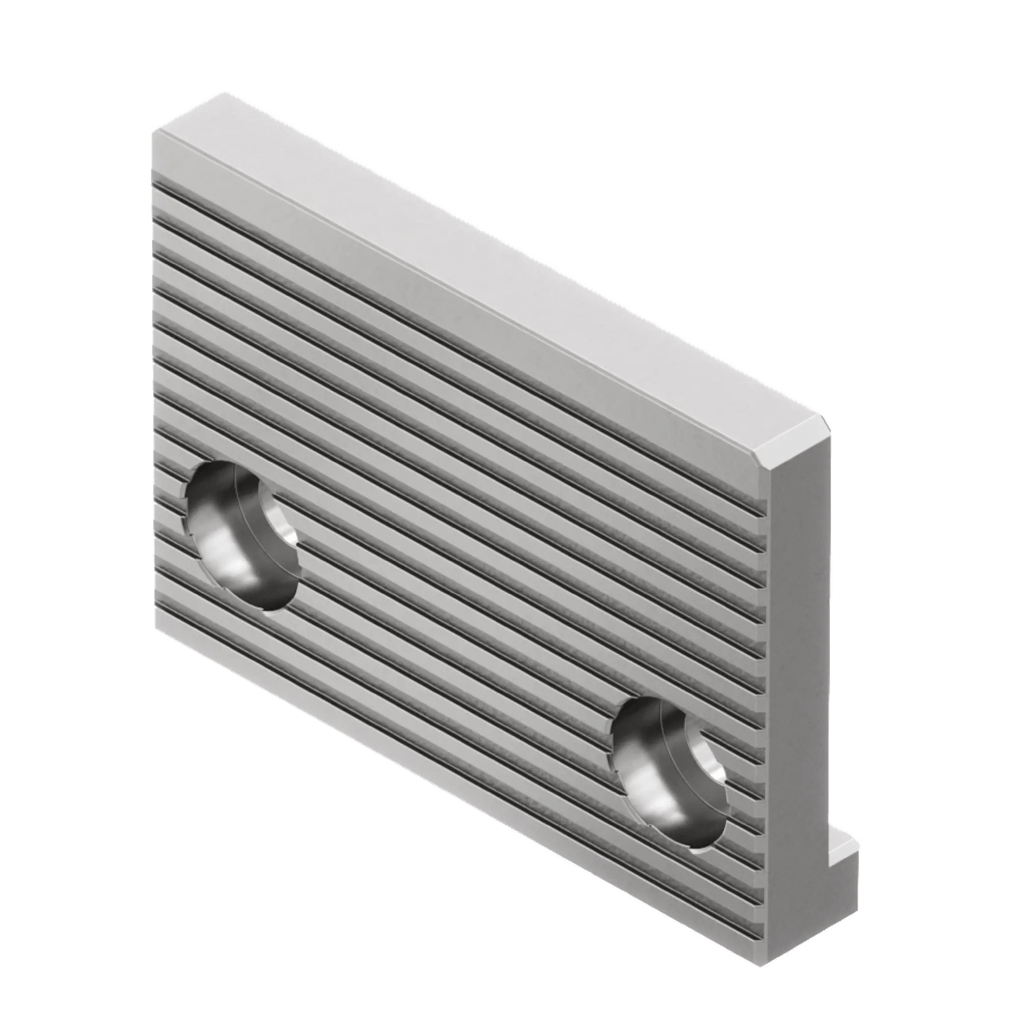

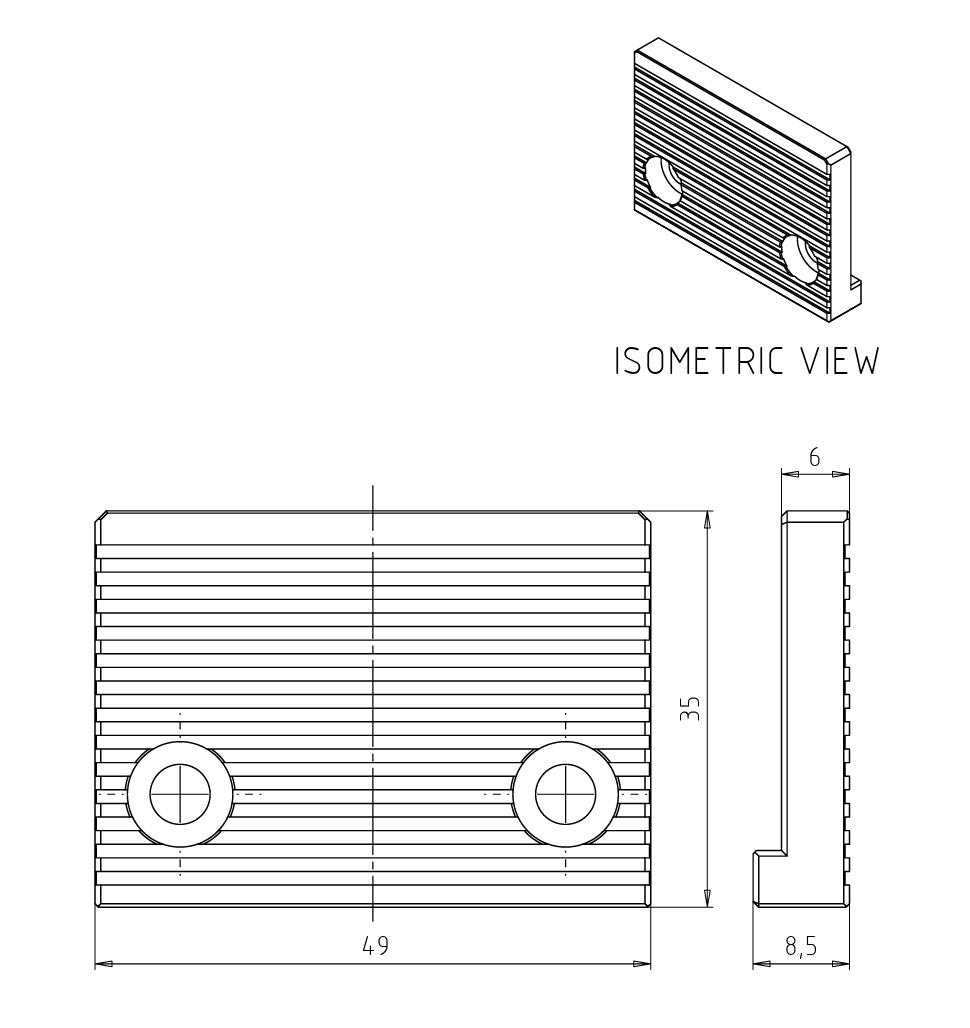

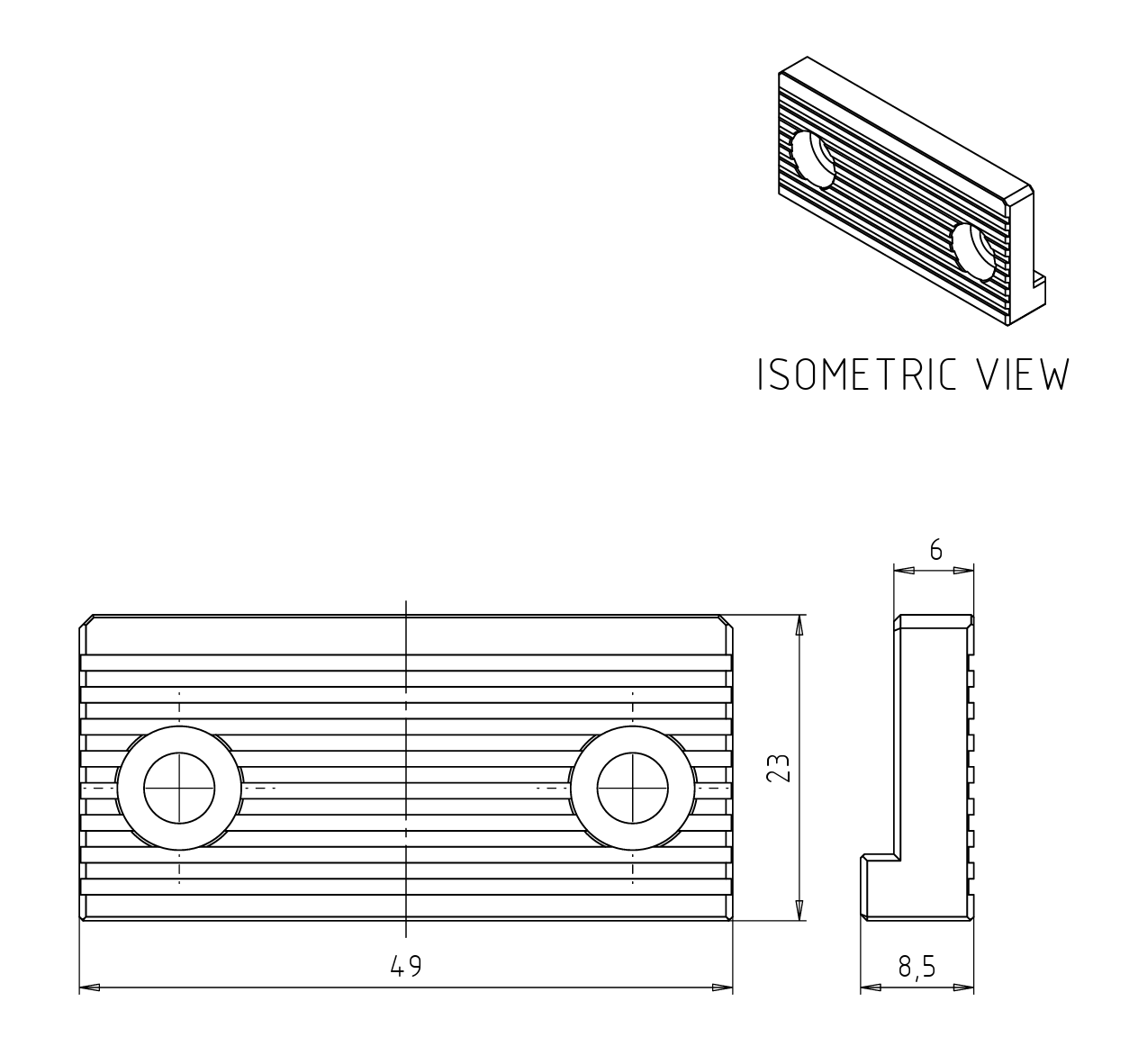

MultiZero Jaw Type B
The MultiZero Jaw Type B with array of slots on the surface, made for general / universal machining tasks.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type B |
2A4-2215-0 |
23.0 mm |
50.0 mm |
52 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type B |
2A4-2265-0 |
35.0 mm |
50.0 mm |
79 g |

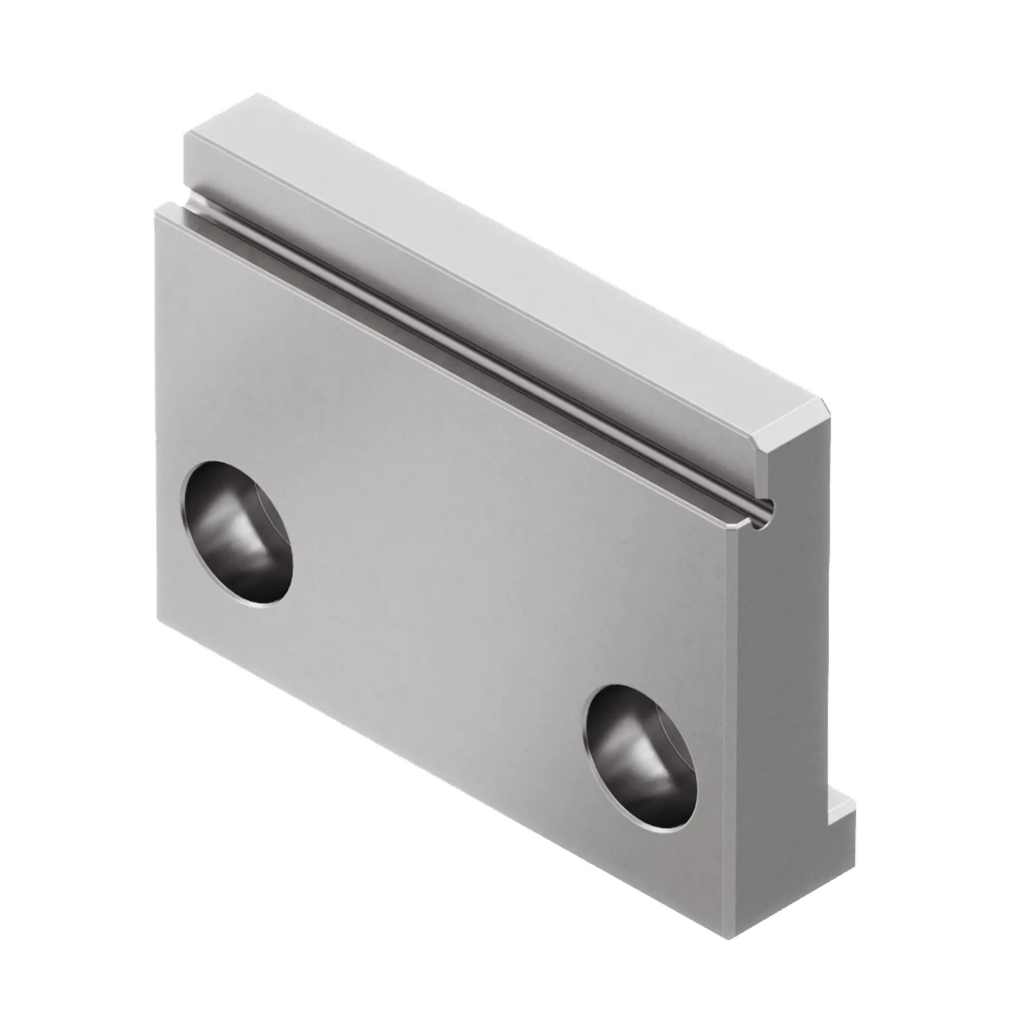

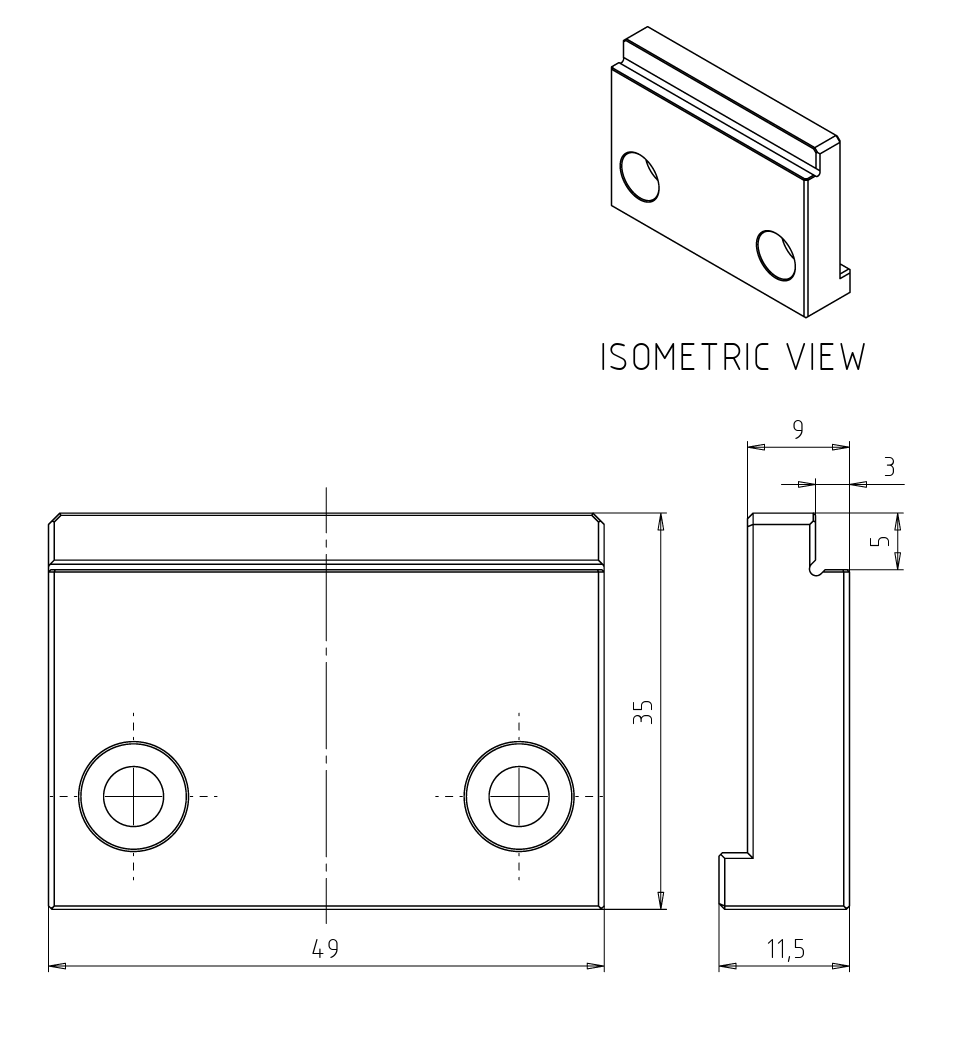

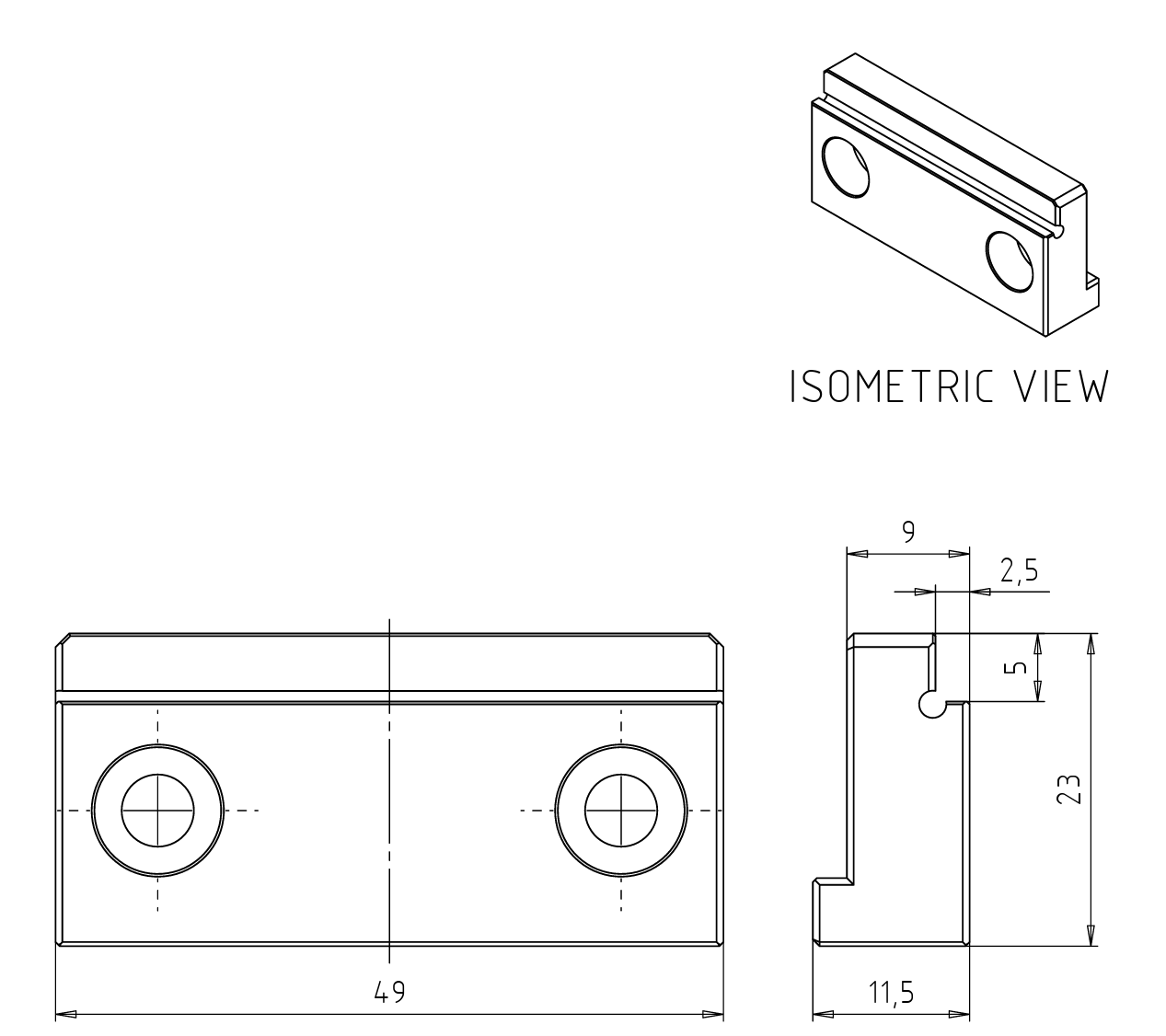

MultiZero Jaw Type C
The MultiZero Jaw Type C features a 5mm clamping depth and a smooth grip, ideal for lifting the workpiece and performing precise finishing operations.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type C |
2A4-2220-0 |
23.0 mm |
50.0 mm |
71 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type C |
2A4-2270-0 |
35.0 mm |
50.0 mm |
113 g |

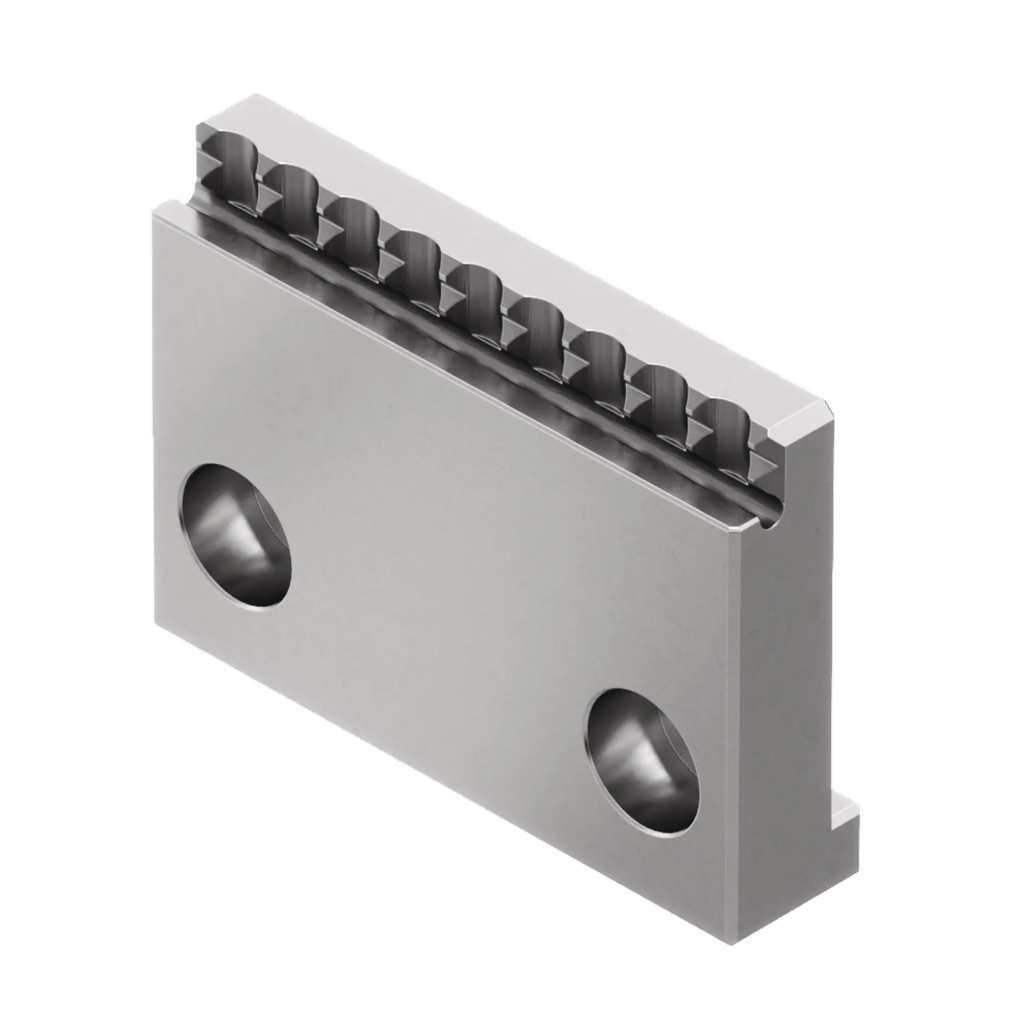

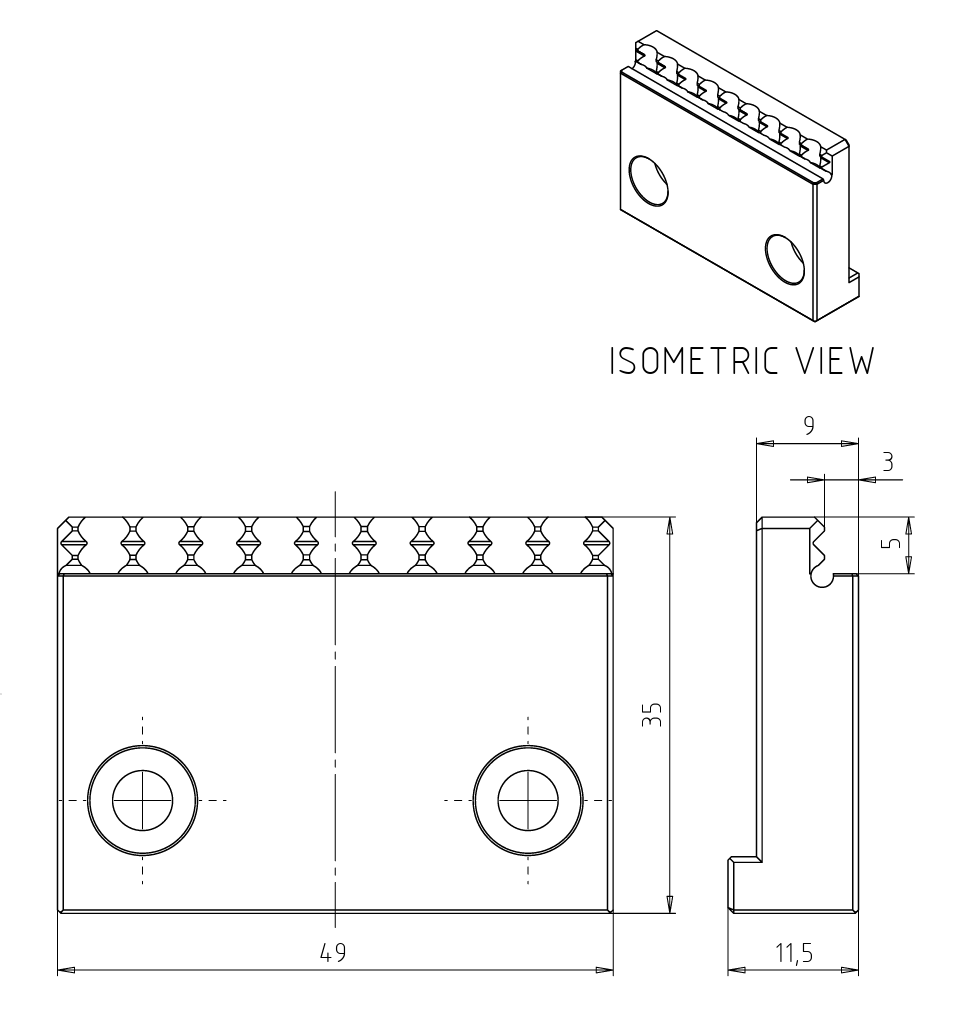

MultiZero Jaw Type D
The MultiZero Jaw Type D features a 3mm clamping depth with a rough grip, ideal for lifting of the raw workpiece.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type D |
2A4-2225-0 |
23.0 mm |
50.0 mm |
68 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type D |
2A4-2275-0 |
35.0 mm |
50.0 mm |
110 g |

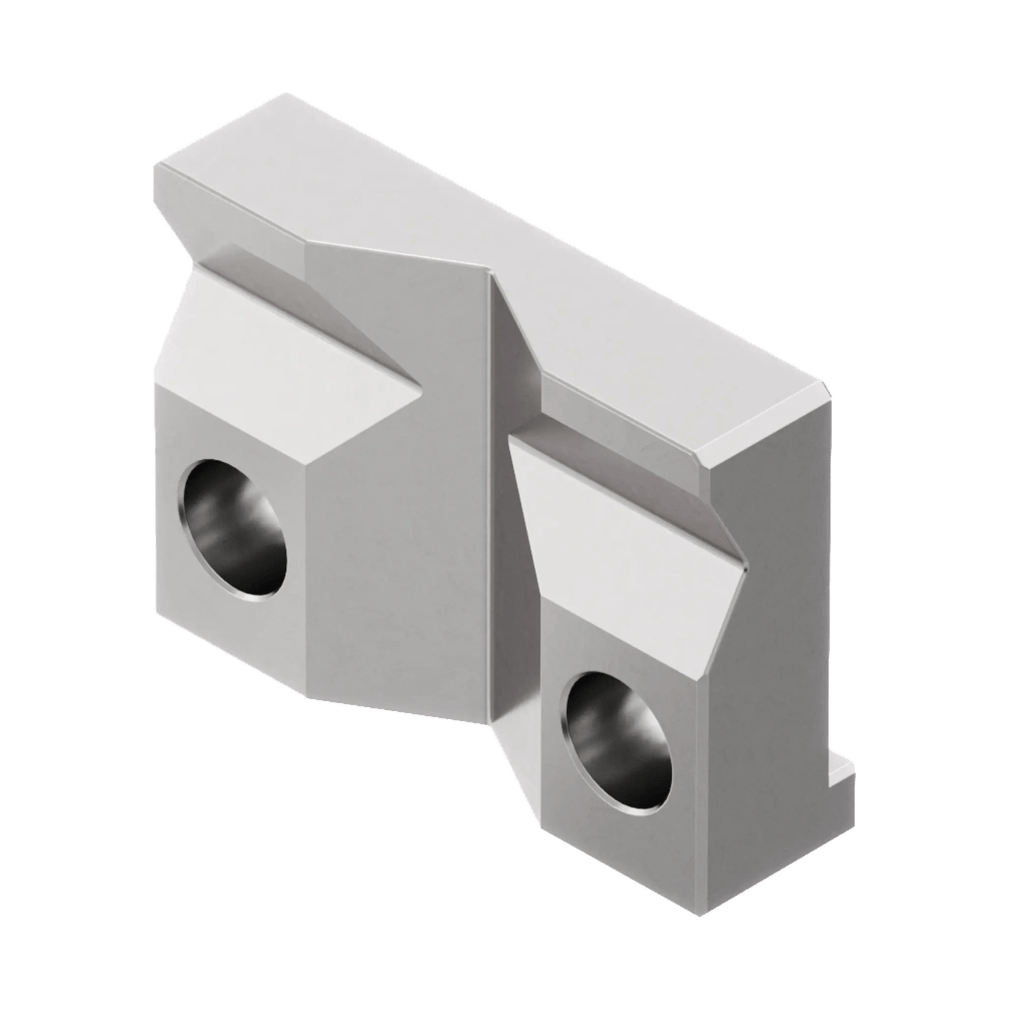

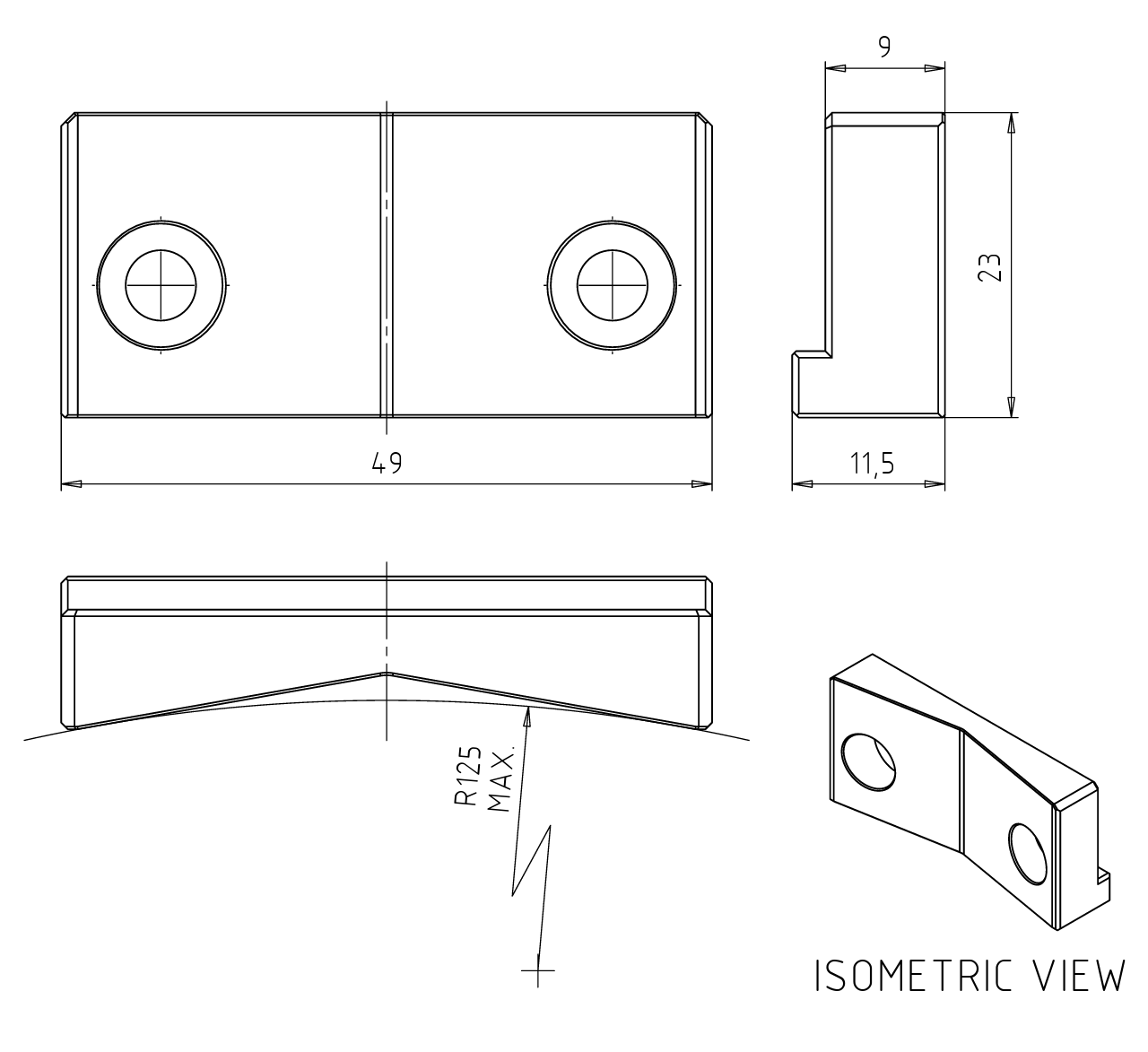

MultiZero Jaw Type E
The MultiZero Jaw Type E enables clamping of the round parts that perfectly align with the jaw surface.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type E |
2A4-2230-0 |
23.0 mm |
50.0 mm |
84 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type E |
2A4-2280-0 |
35.0 mm |
50.0 mm |
131 g |

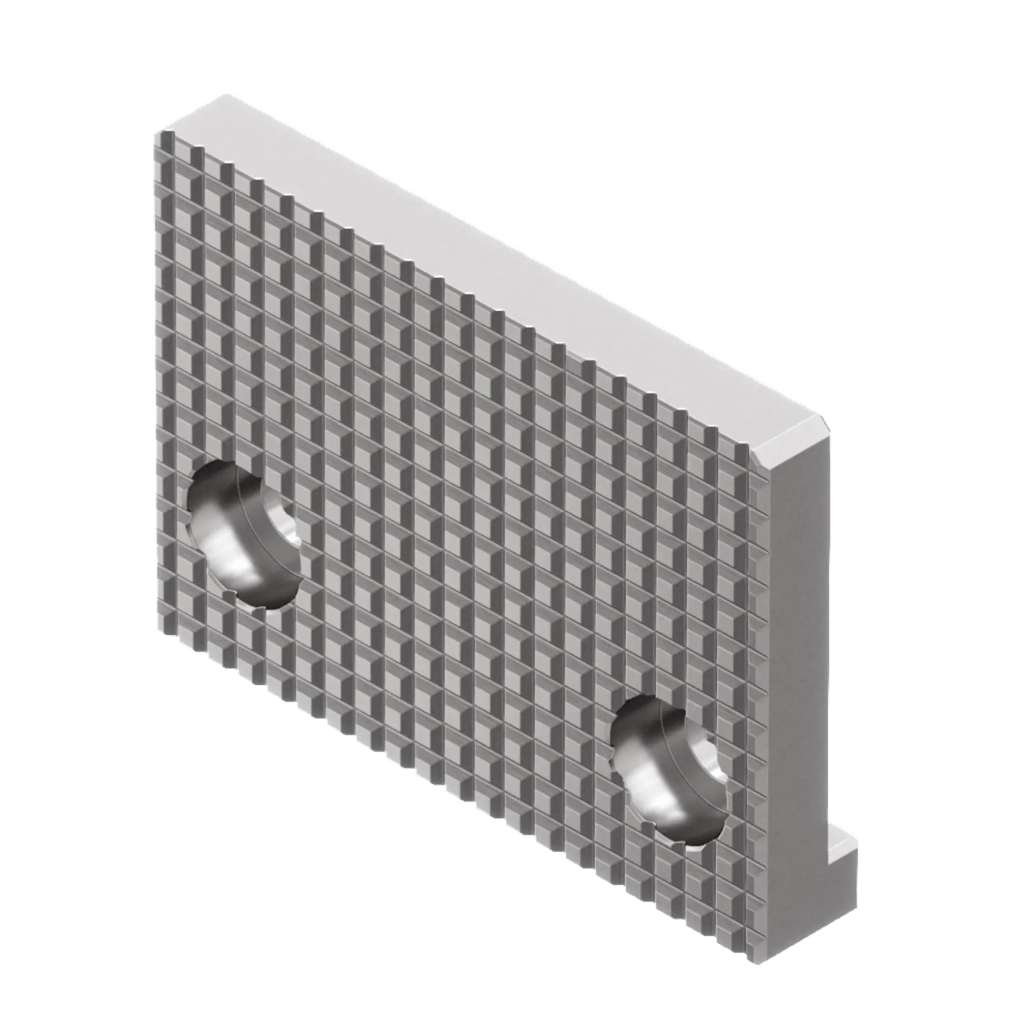

MultiZero Jaw Type F
The MultiZero Jaw Type F offers a rough grip across the whole surface of the jaw, perfect for rough clamping of harder materials.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type F |
2A4-2235-0 |
23.0 mm |
50.0 mm |
51 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type F |
2A4-2285-0 |
35.0 mm |
50.0 mm |
78 g |

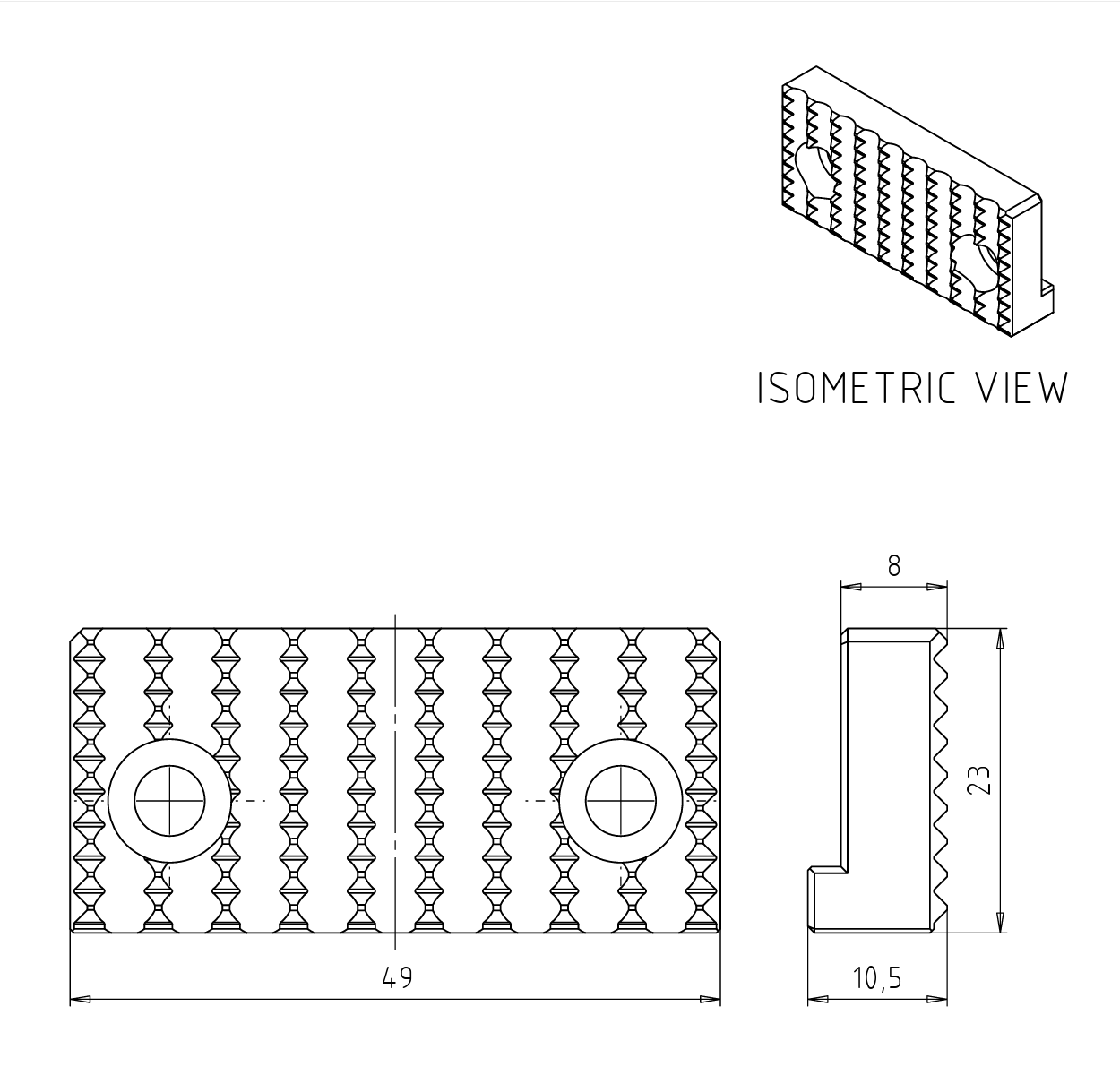

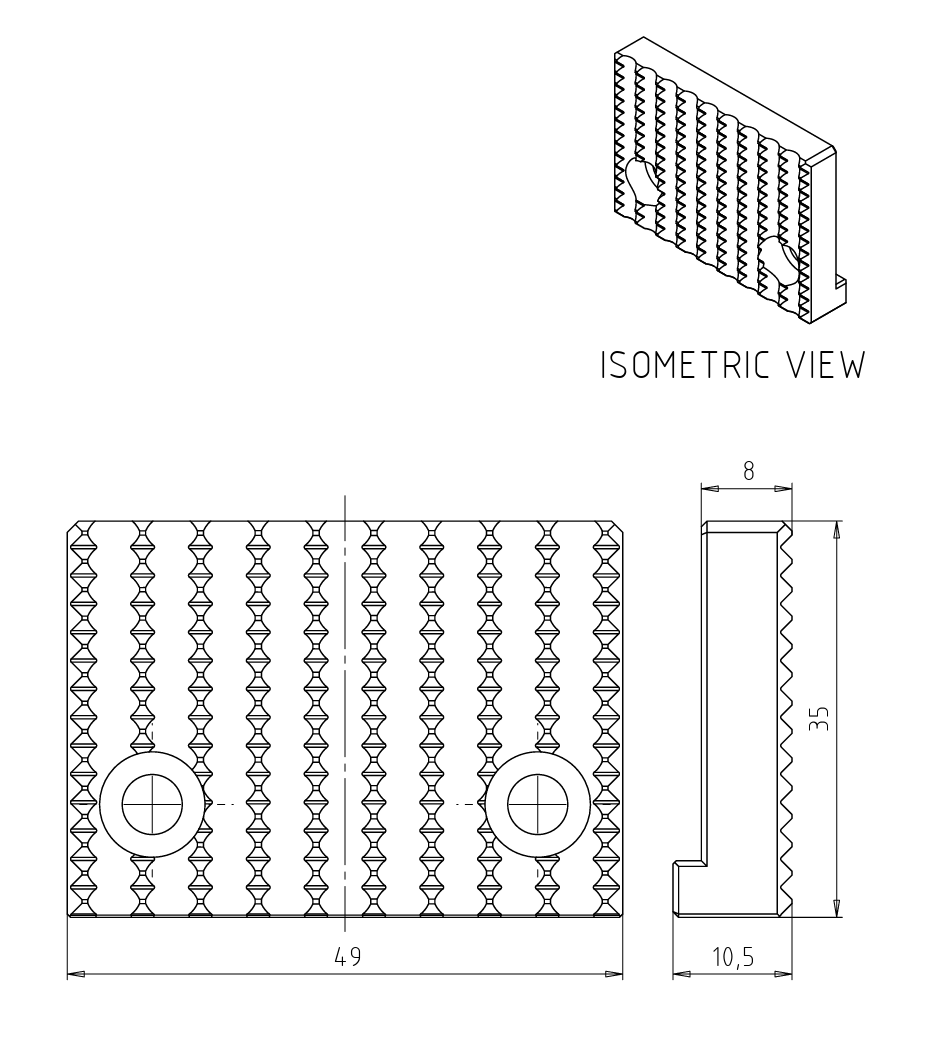

MultiZero Jaw Type G
The MultiZero Jaw Type G offers a rough grip with sharp edges across the whole surface of the jaw, perfect for rough clamping of softer materials.
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H23 Type G |
2A4-2240-0 |
23.0 mm |
50.0 mm |
61 g |
| Product | Product no. | Height (h) | Width (w) | Weight (kg) |
|---|---|---|---|---|
|
MultiZero Jaw W50 H35 Type G |
2A4-2290-0 |
35.0 mm |
50.0 mm |
93 g |
